Schematic and Routing Diagrams
›
Keyless Entry Schematics
Keyless Entry Schematics

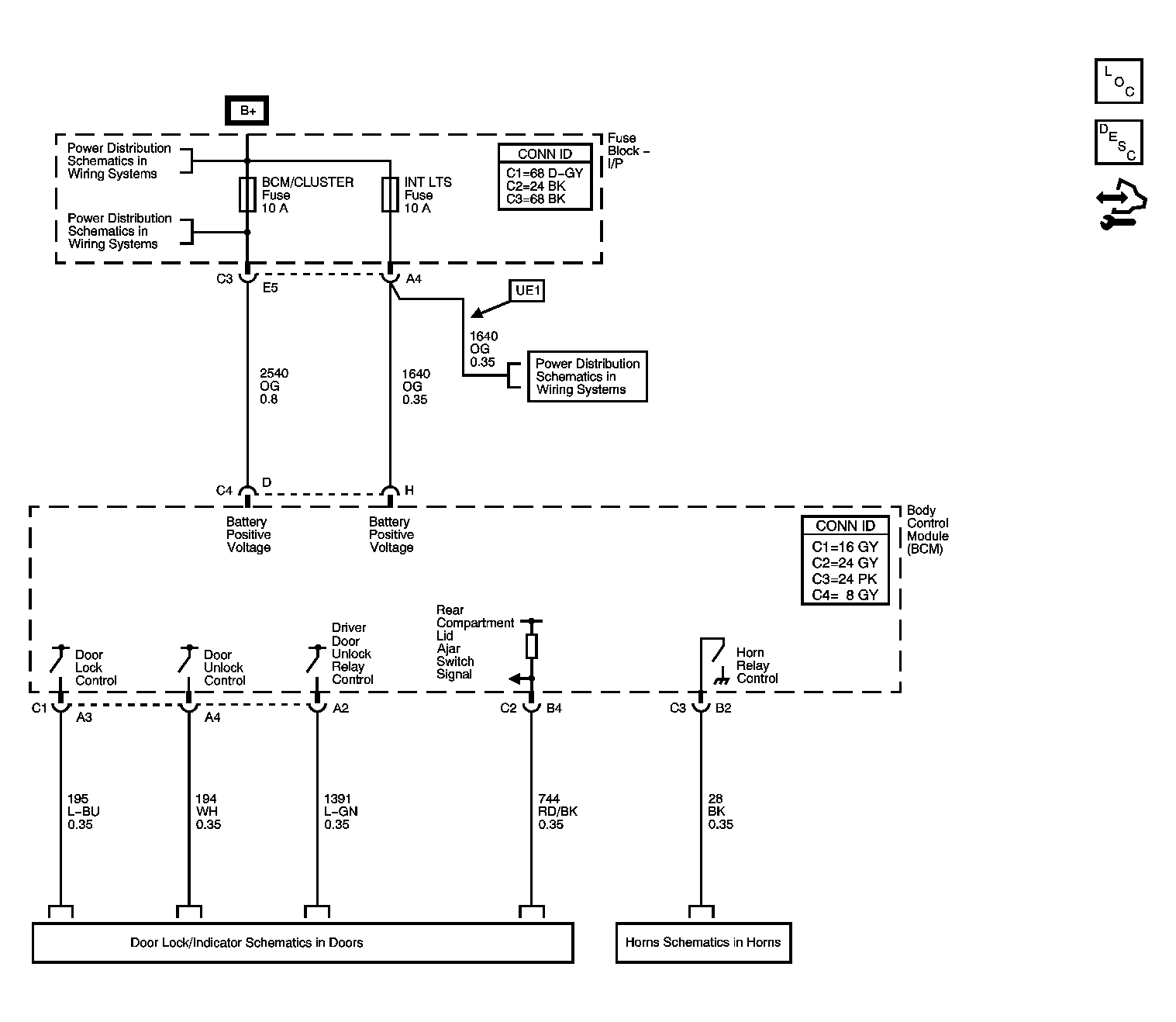

Fig 1: Keyless Entry Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
