ABS Component Views

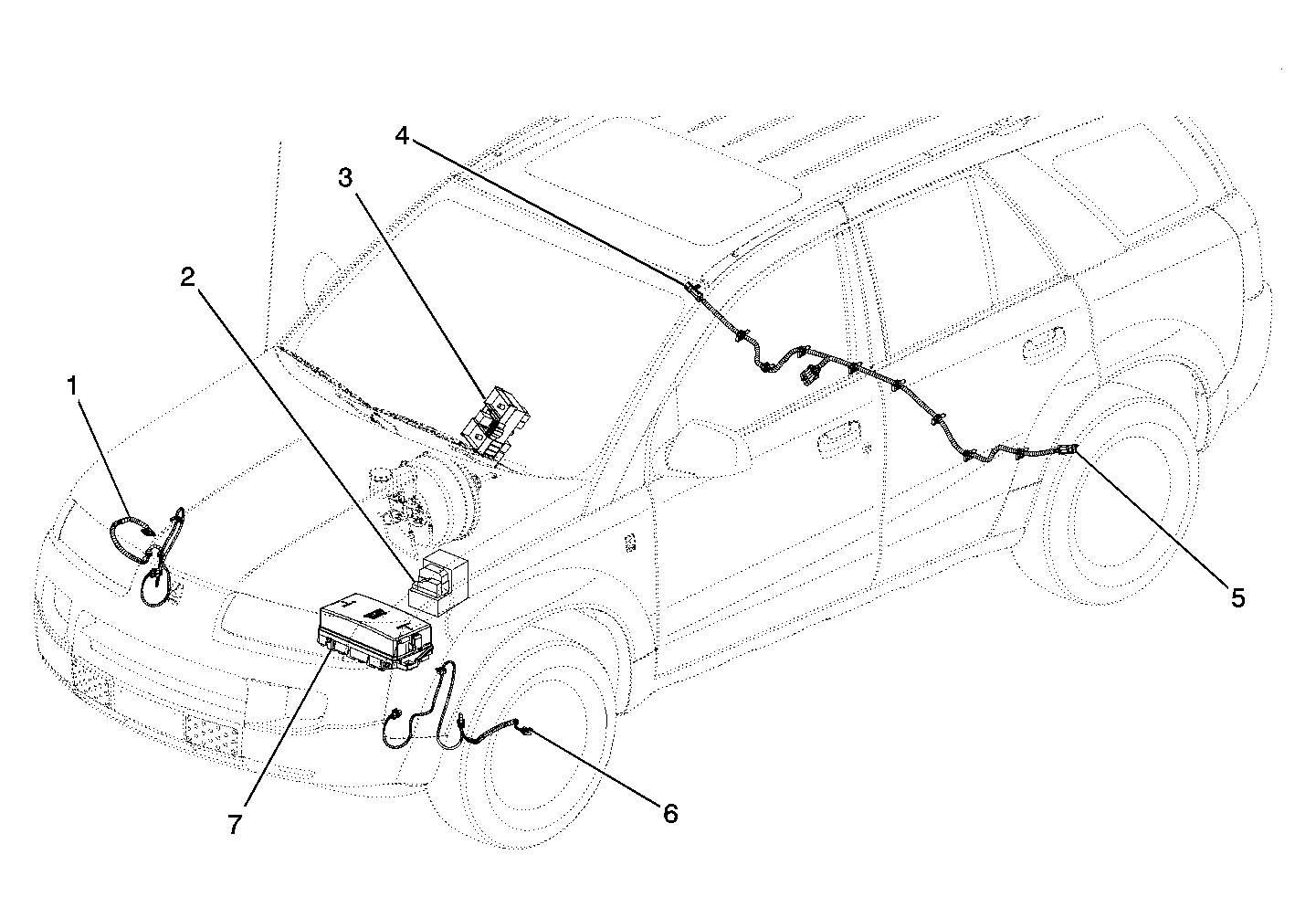

Fig 1: ABS Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Electronic Brake Control Module (EBCM)
3	Fuse Block - I/P
4	Wheel Speed Sensor (WSS) - RR
5	Wheel Speed Sensor (WSS) - LR
6	Wheel Speed Sensor (WSS) - LF
7	Fuse Block - Underhood
