ABS Schematics

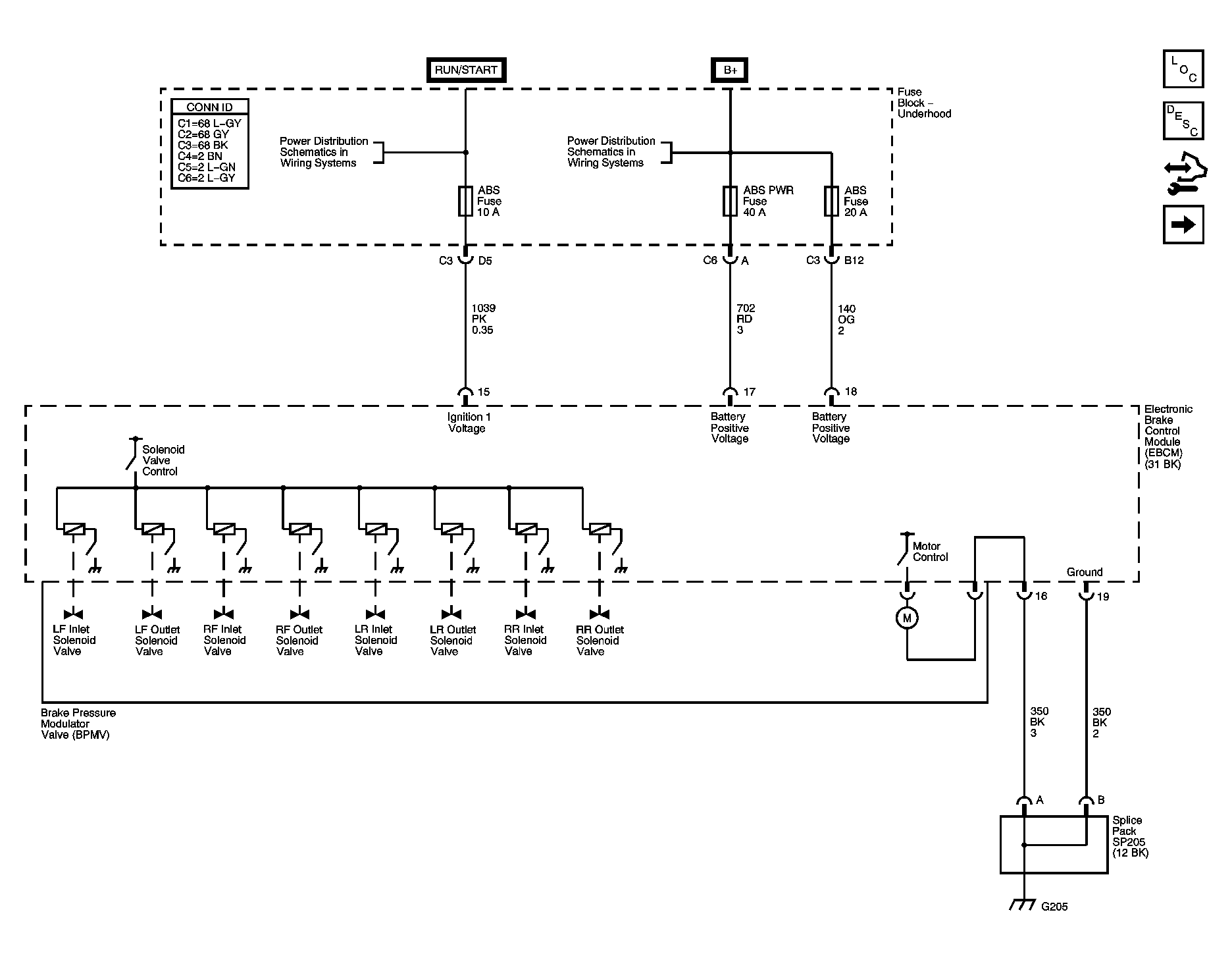

Fig 1: Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

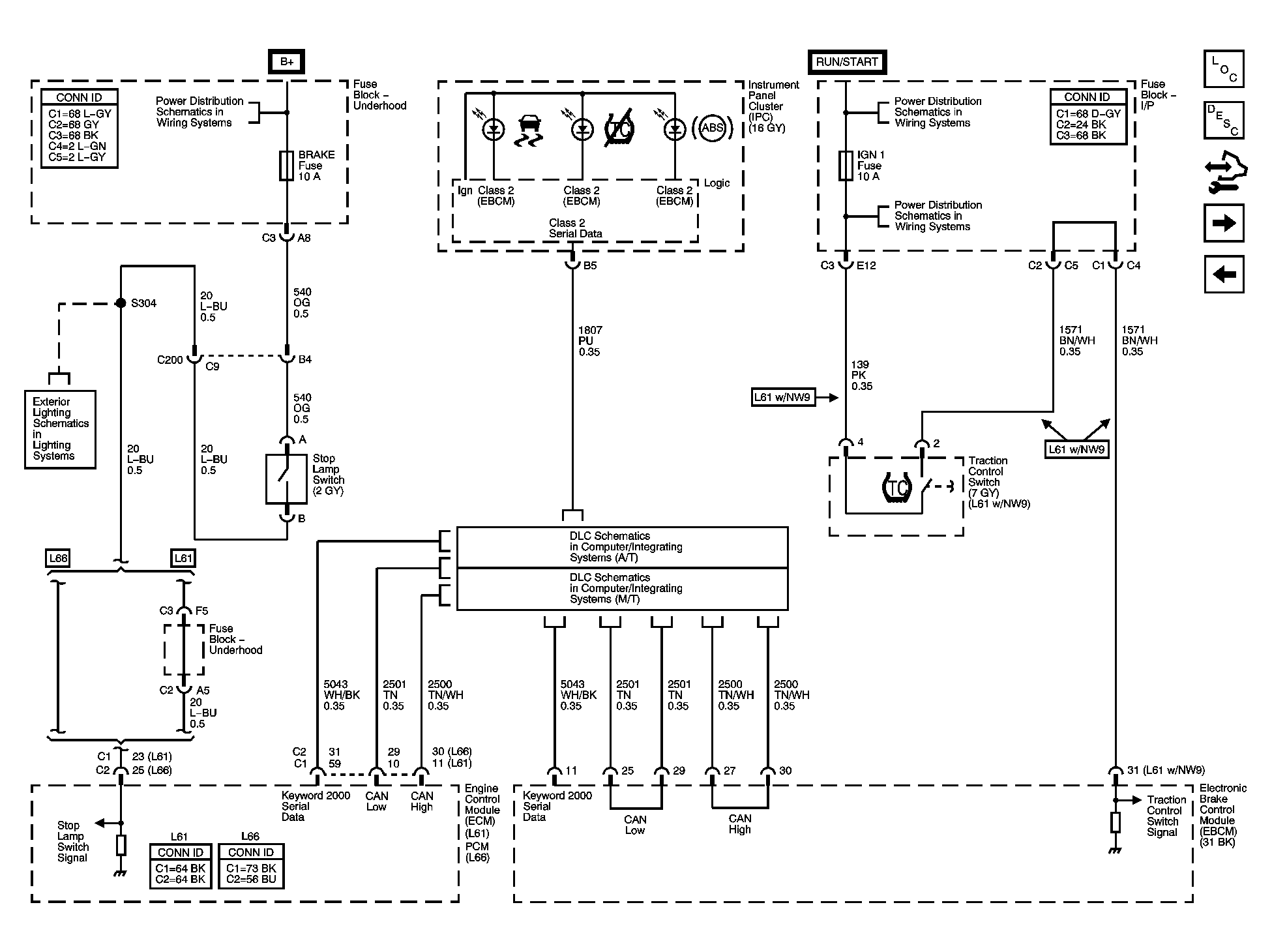

Fig 2: TC Switch, Indicators and the Stop Lamp Switch Signal Schematic

Courtesy of GENERAL MOTORS CORP.

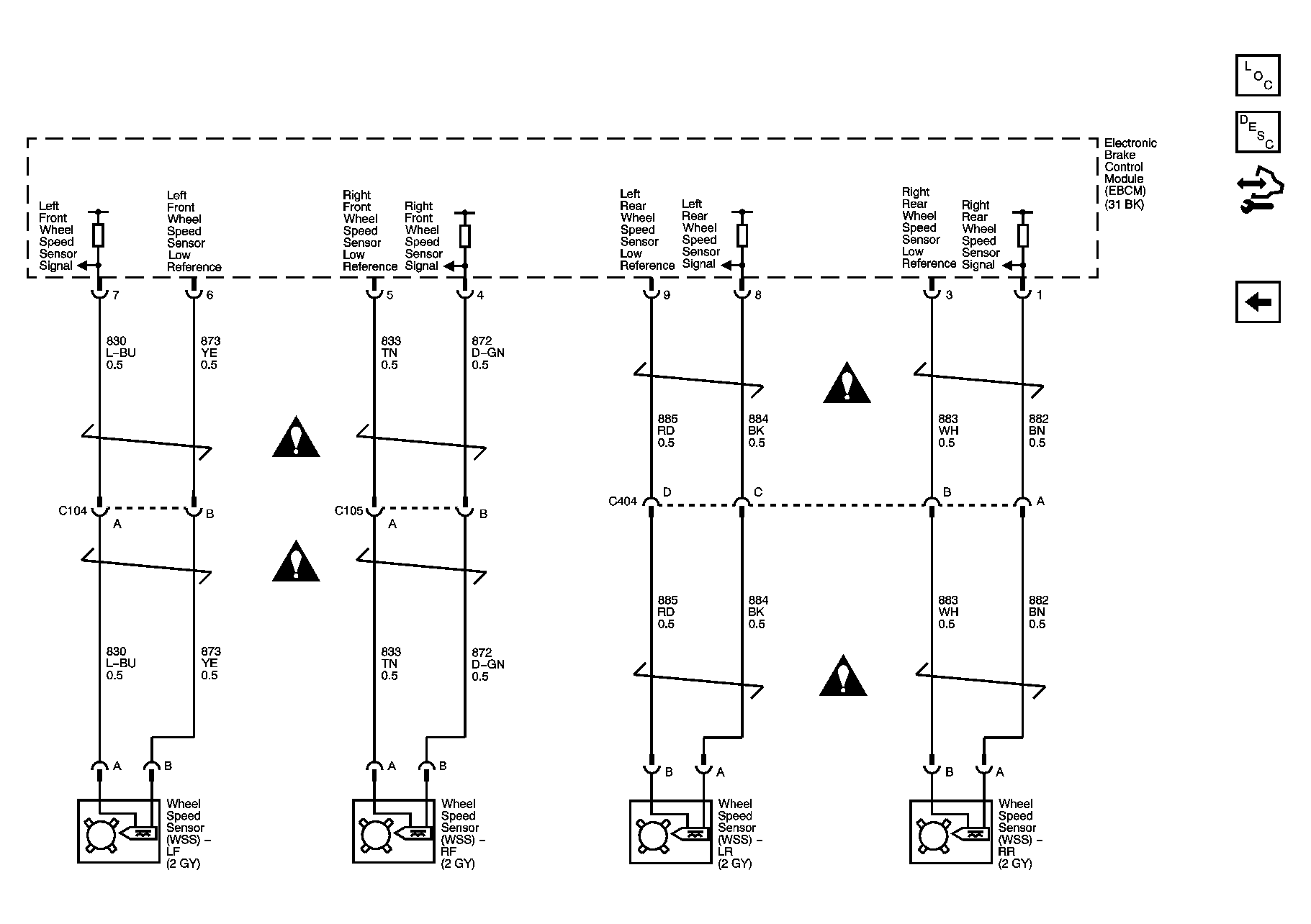

Fig 3: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
