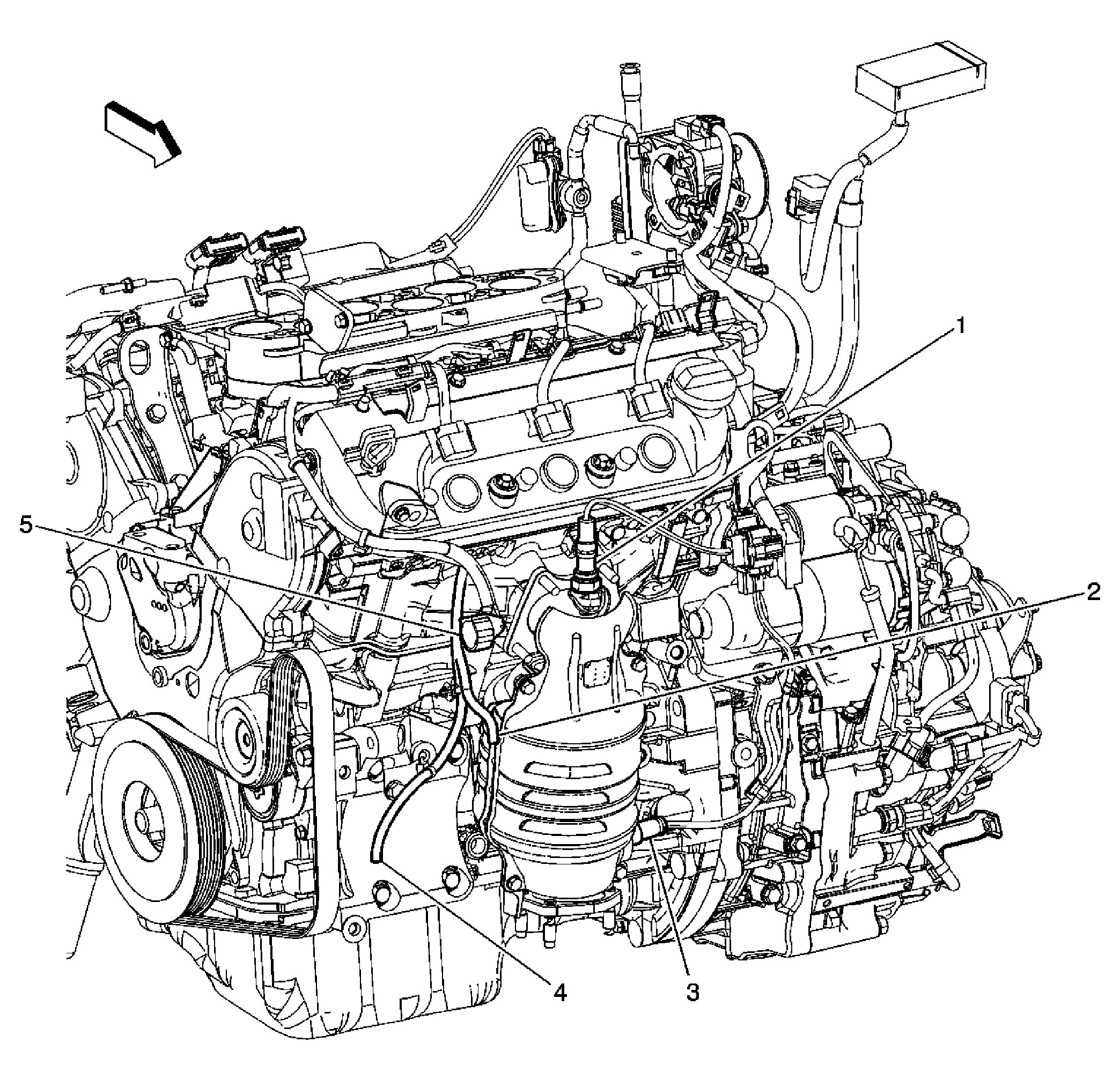

Engine Component View (Front)
| Callout | Component Name | |||
| 1 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 | |||
| 2 | A/C High Pressure Switch (Incomplete) | |||
| 3 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 | |||
| 4 | A/C Compressor Clutch (Incomplete) | |||
| 5 | Generator Connector | |||
| Callout | Component Names | ||||
| 1 | Intake Air Temperature (IAT) Sensor 2 (Sensor 1 in the Air Cleaner Housing) | ||||
| 2 | Manifold Absolute Pressure (MAP) Sensor | ||||
| 3 | Throttle Actuator Control (TAC) Module | ||||
| 4 | Engine Coolant Temperature (ECT) Sensor | ||||
| 5 | Exhaust Gas Recirculation (EGR) Valve | ||||
| 6 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 | ||||
| 7 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 | ||||
| 8 | Ignition Control Modules (ICM) 4, 5, and 6 | ||||
| 9 | Knock Sensor (KS) | ||||
