DTC U0107: Notes

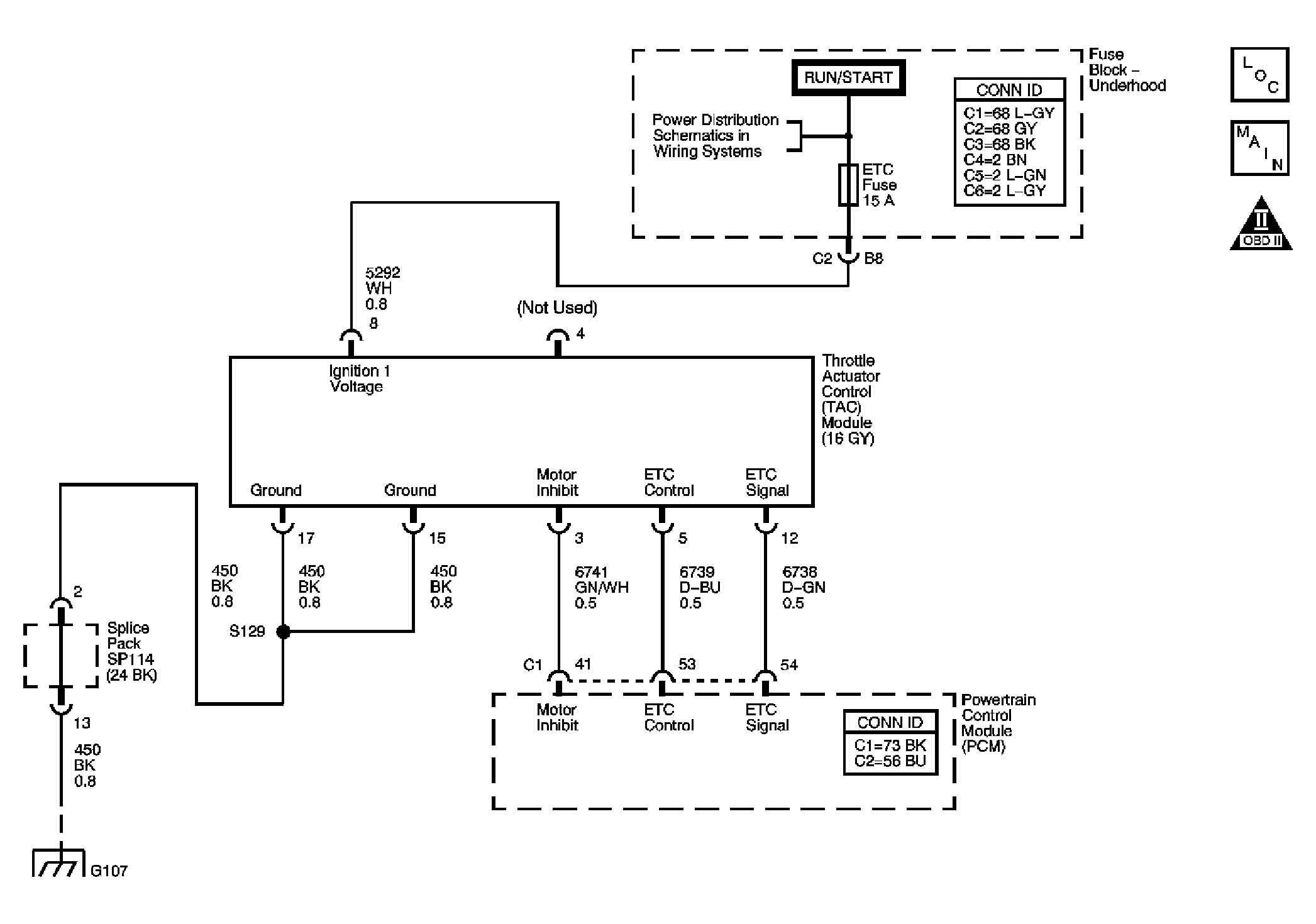

Fig 1: Throttle Actuator Control (TAC) Module Circuit
GM1350434Courtesy of GENERAL MOTORS CORP.
