Range Selector Displays Incorrect Range: Notes

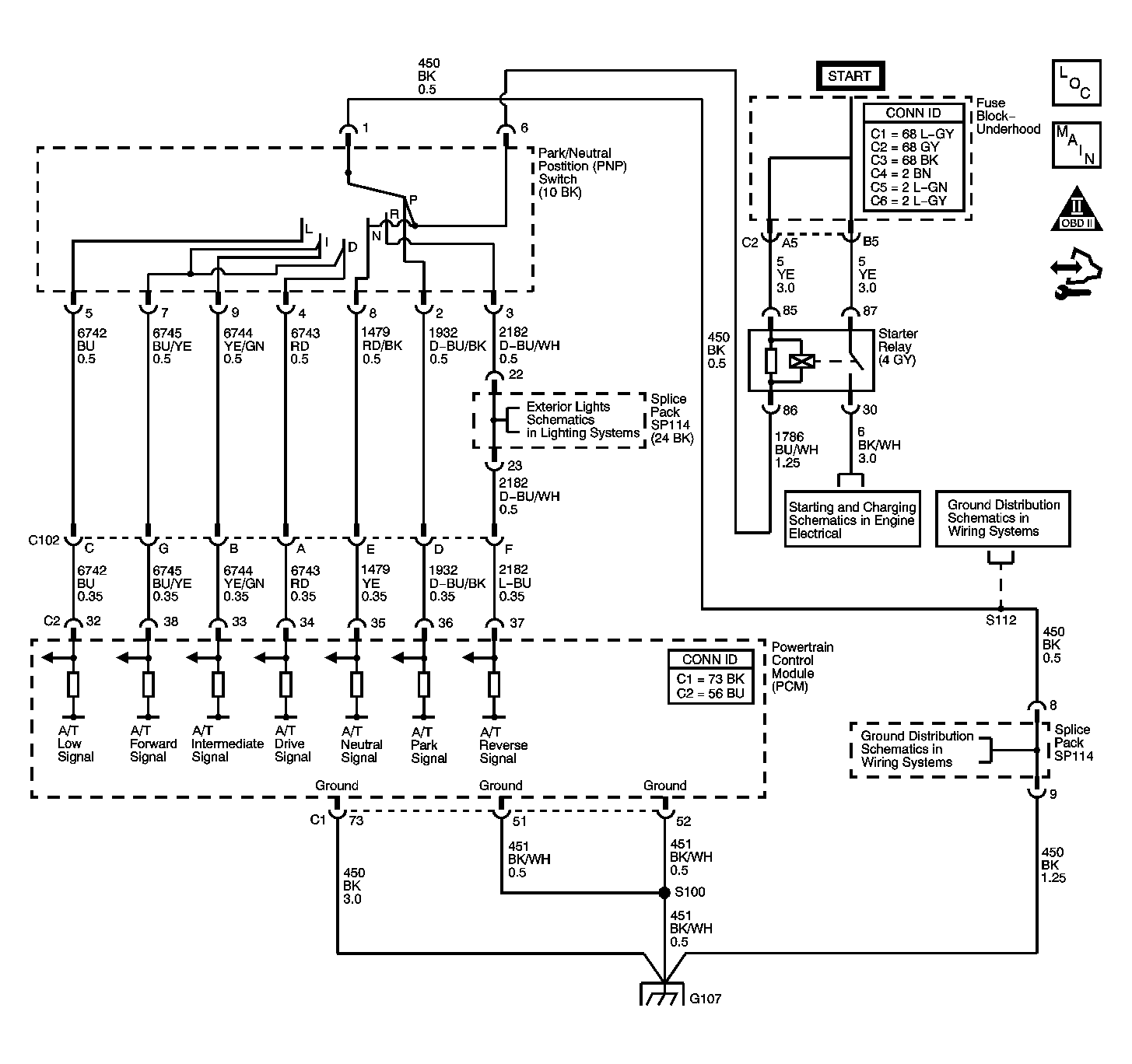

Fig 1: Park/Neutral Position Switch Circuit
GM1466928Courtesy of GENERAL MOTORS CORP.
