Data Communication Component Views

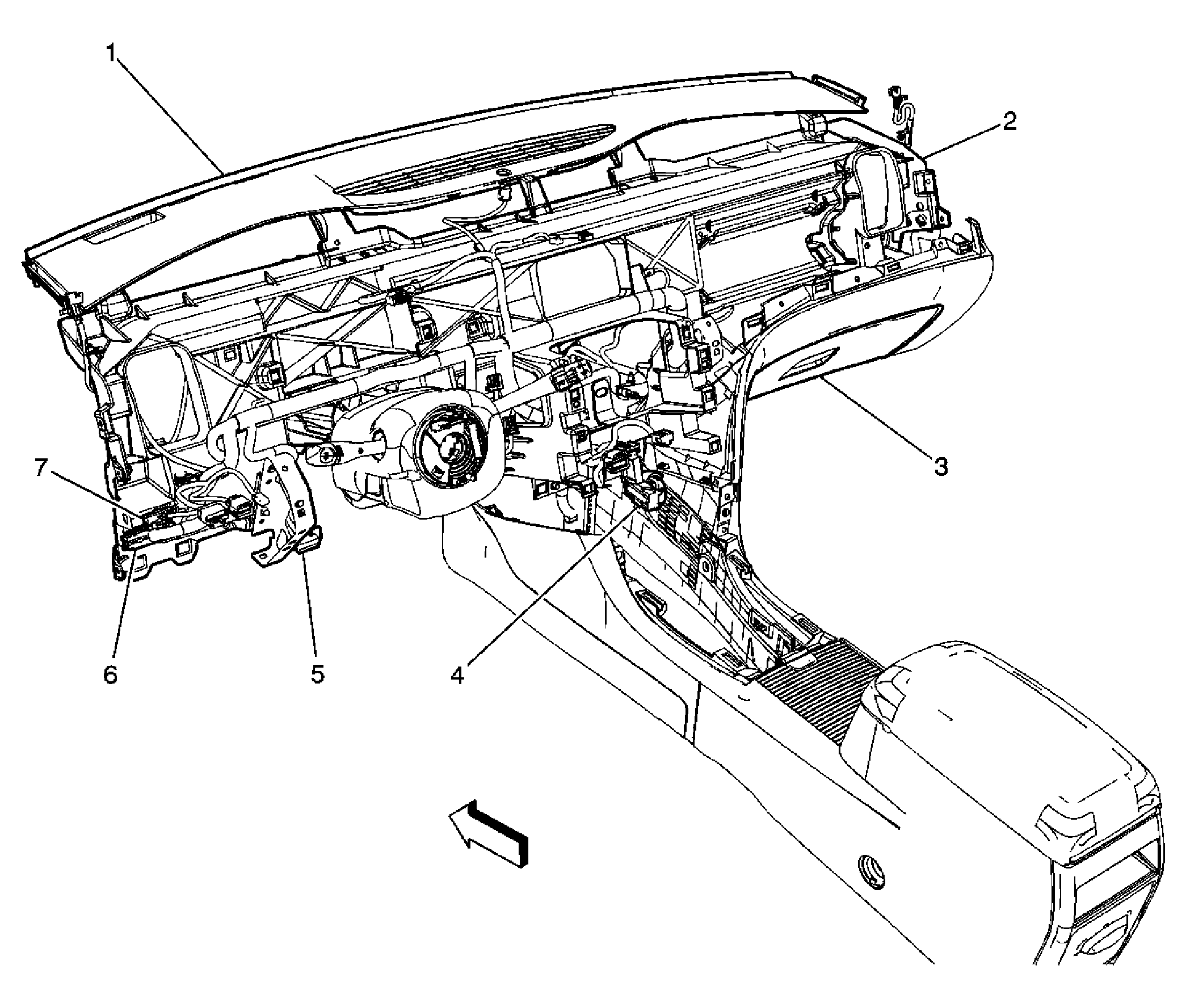

Fig 1: View Of I/P Harness - Front Of Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	I/P Carrier
3	I/P Compartment
4	Body Bontrol Module (BCM) C2
5	Data Link Connector (DLC)
6	C206
7	C208

Fig 2: View Behind I/P Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Theft Deterrent Control Module
3	Steering Column
4	Ignition Switch
5	Body Control Module (BCM)
