Body Control System Schematics

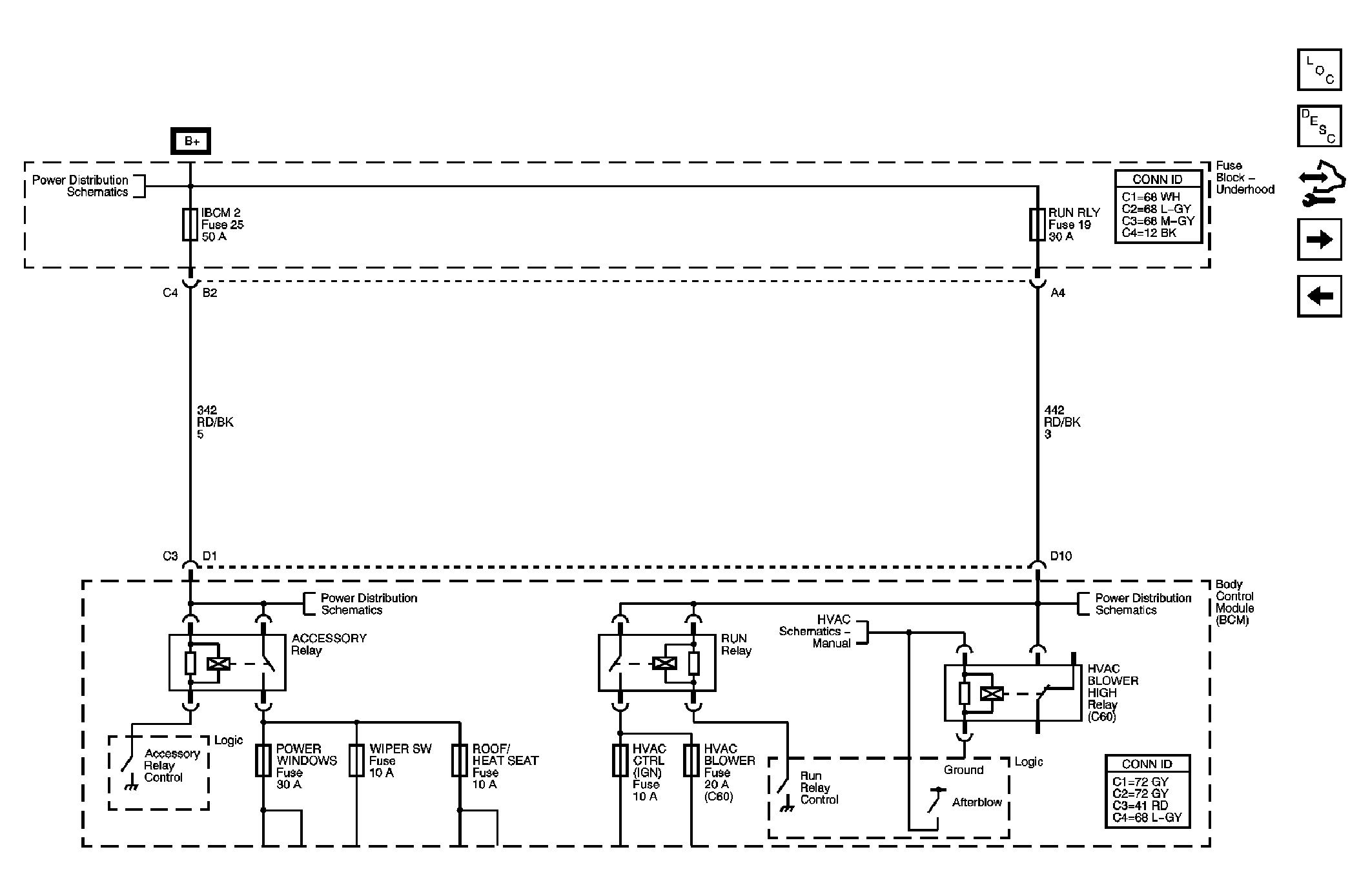

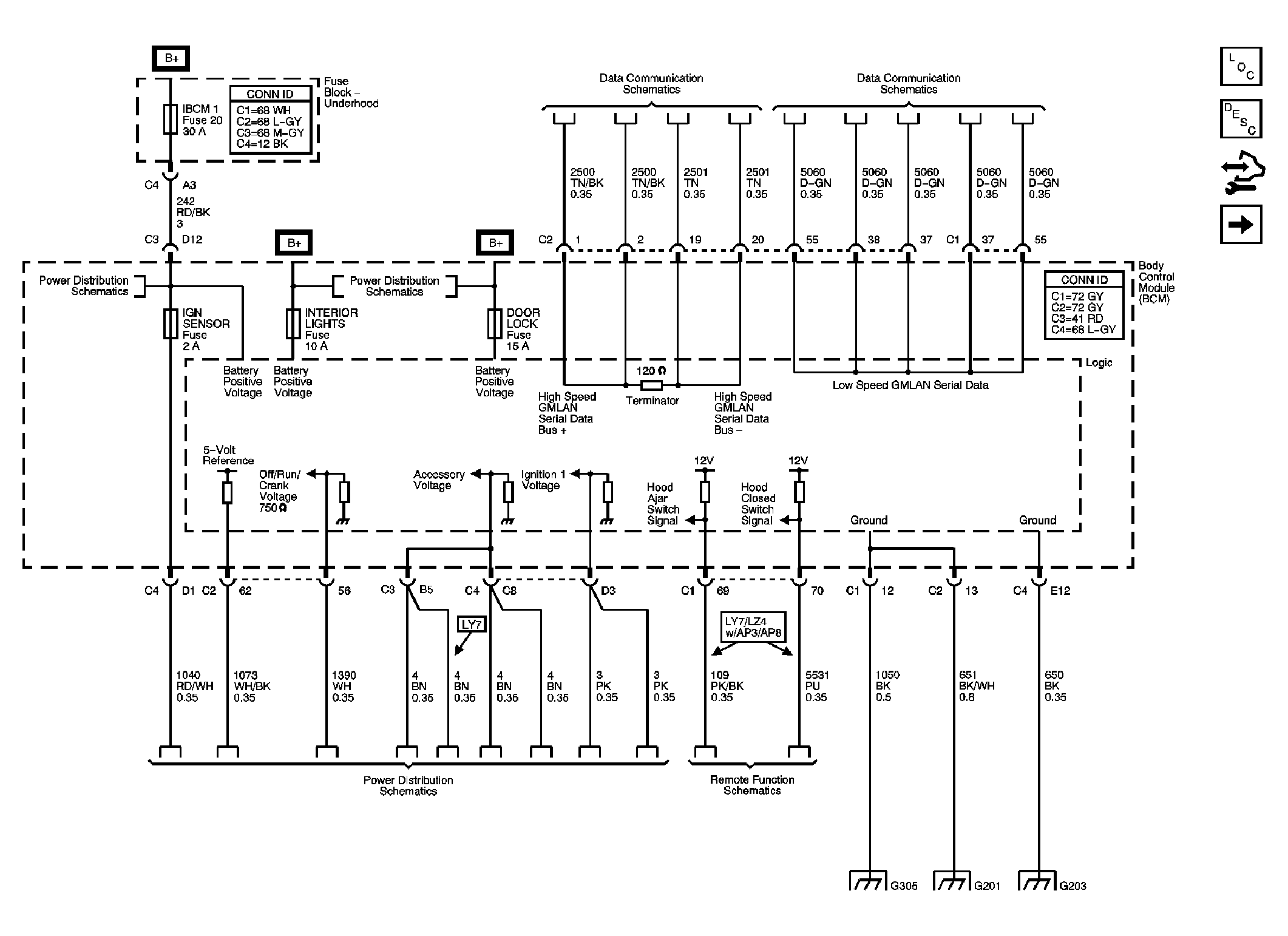

Fig 1: Power, Ground & DLC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Controlled/Monitored Subsystem References Schematic (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

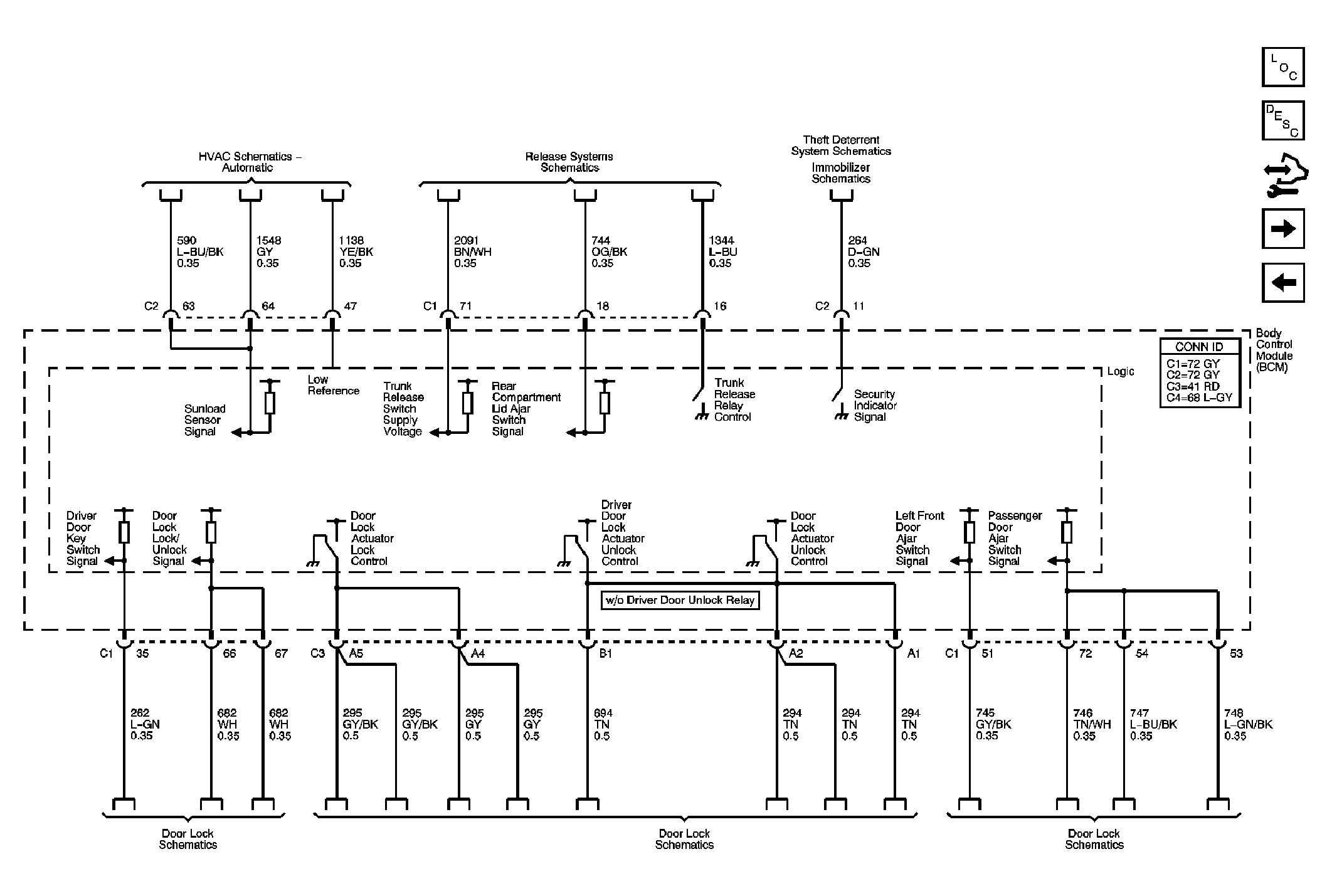

Fig 3: Controlled/Monitored Subsystem References Schematic (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

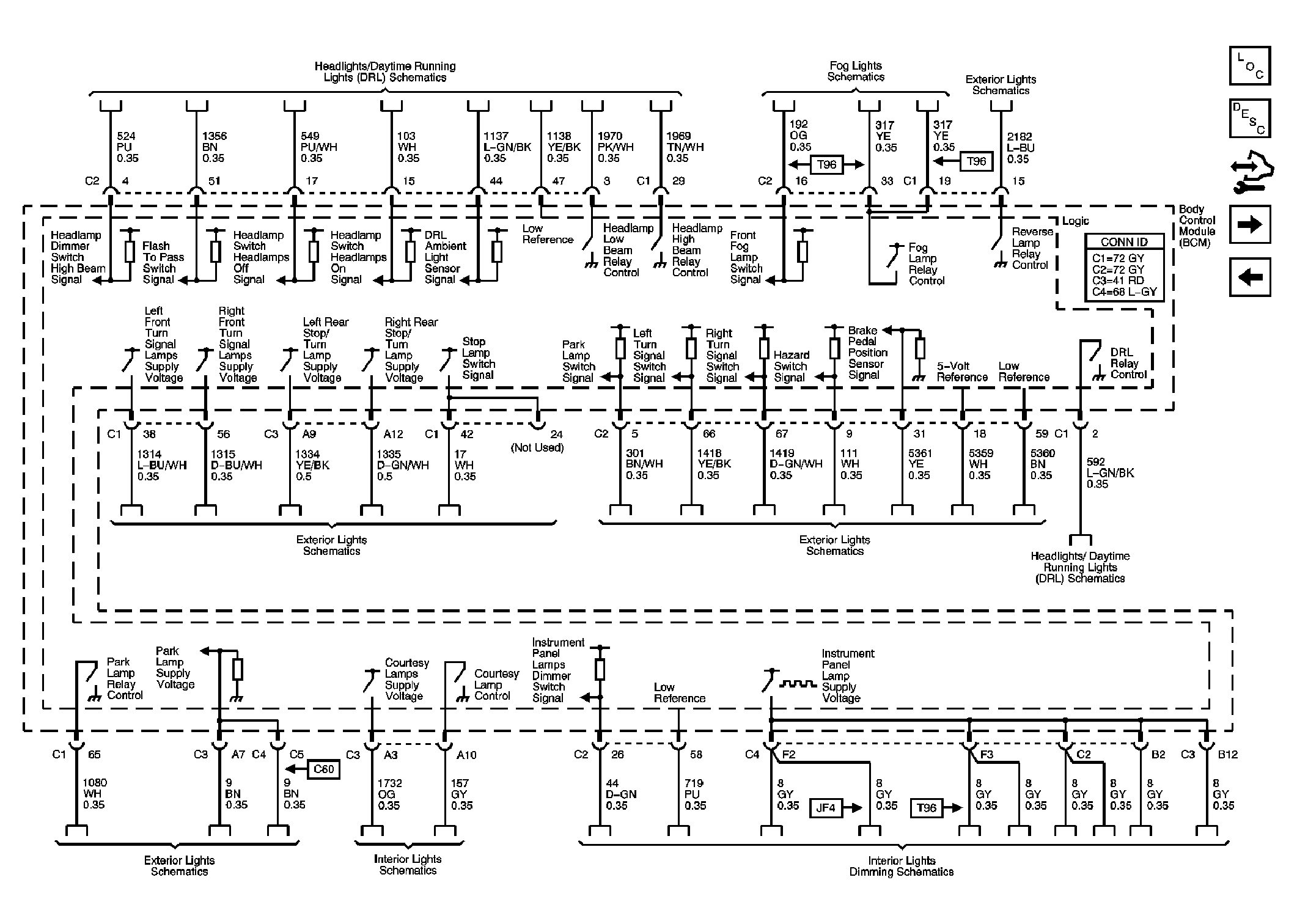

Fig 4: Controlled/Monitored Subsystem References Schematic (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

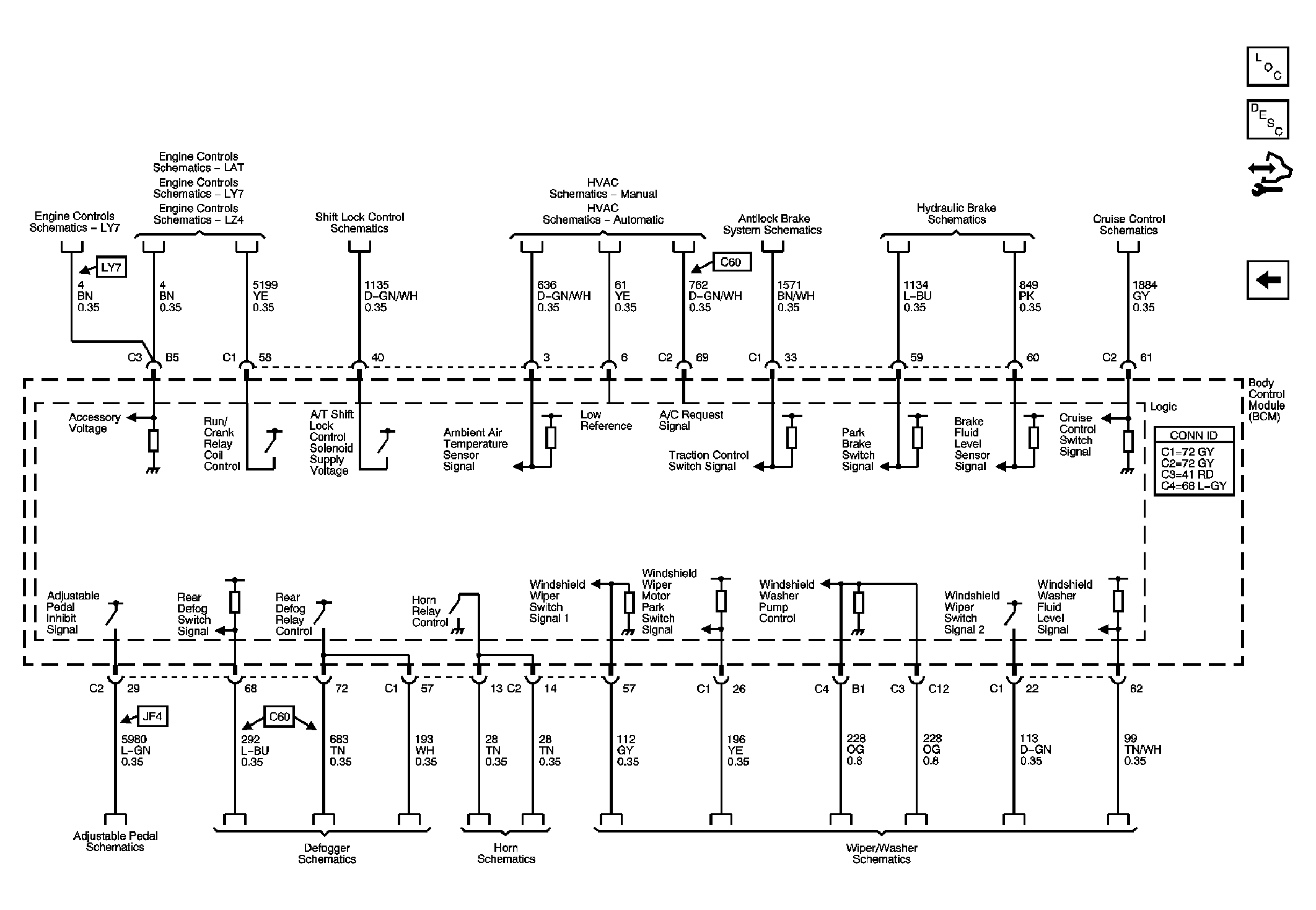

Fig 5: Controlled/Monitored Subsystem References Schematic (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
