Secondary/Configurable Control Component Views

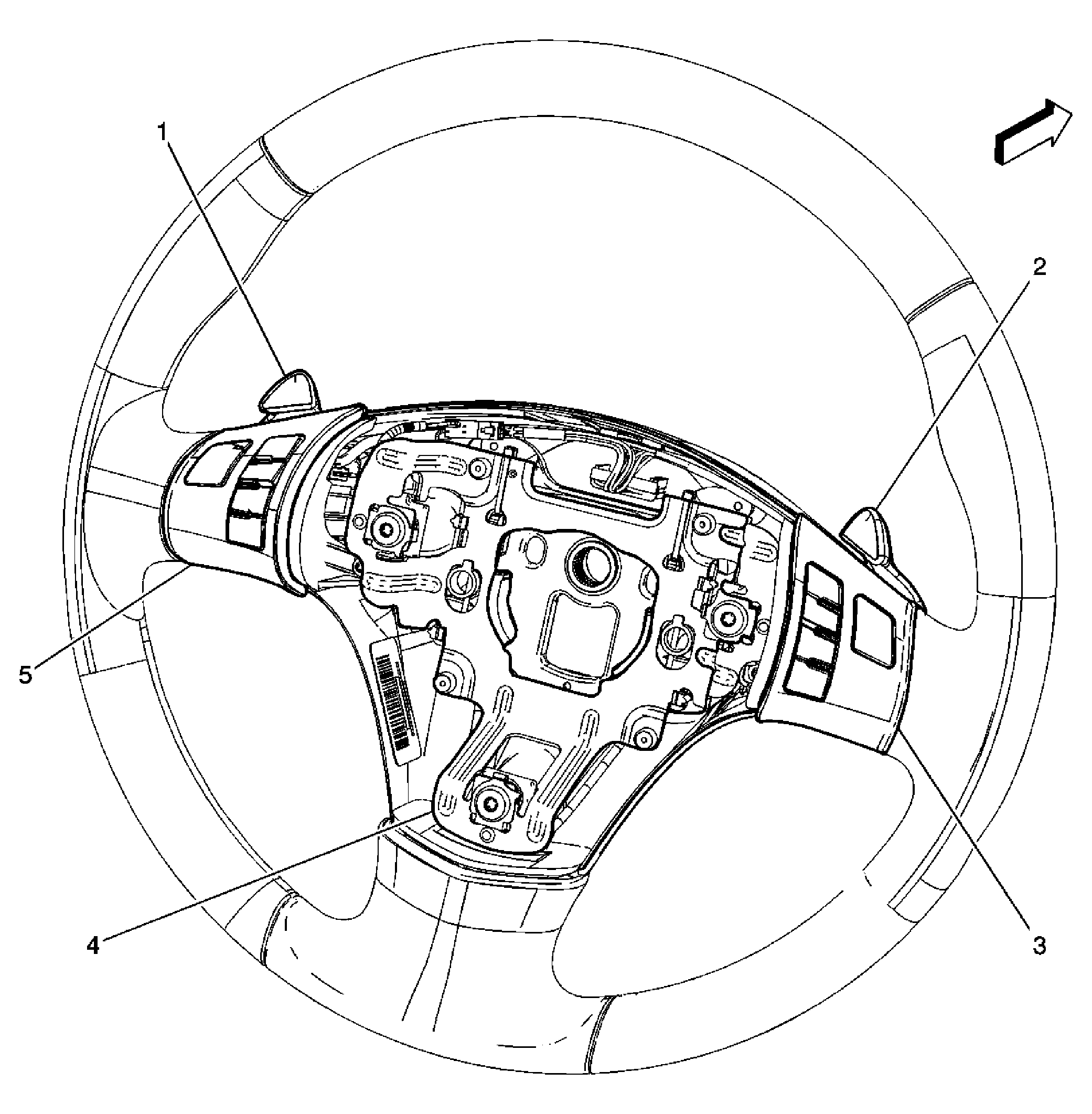

Fig 1: View Of Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tap Up/Tap Down Switch - Left (KB7)
2	Tap Up/Tap Down Switch - Right (KB7)
3	Steering Wheel Controls - Right (UK3)
4	Horn Switch
5	Steering Wheel Controls - Left (UK3)
