Immobilizer Component Views

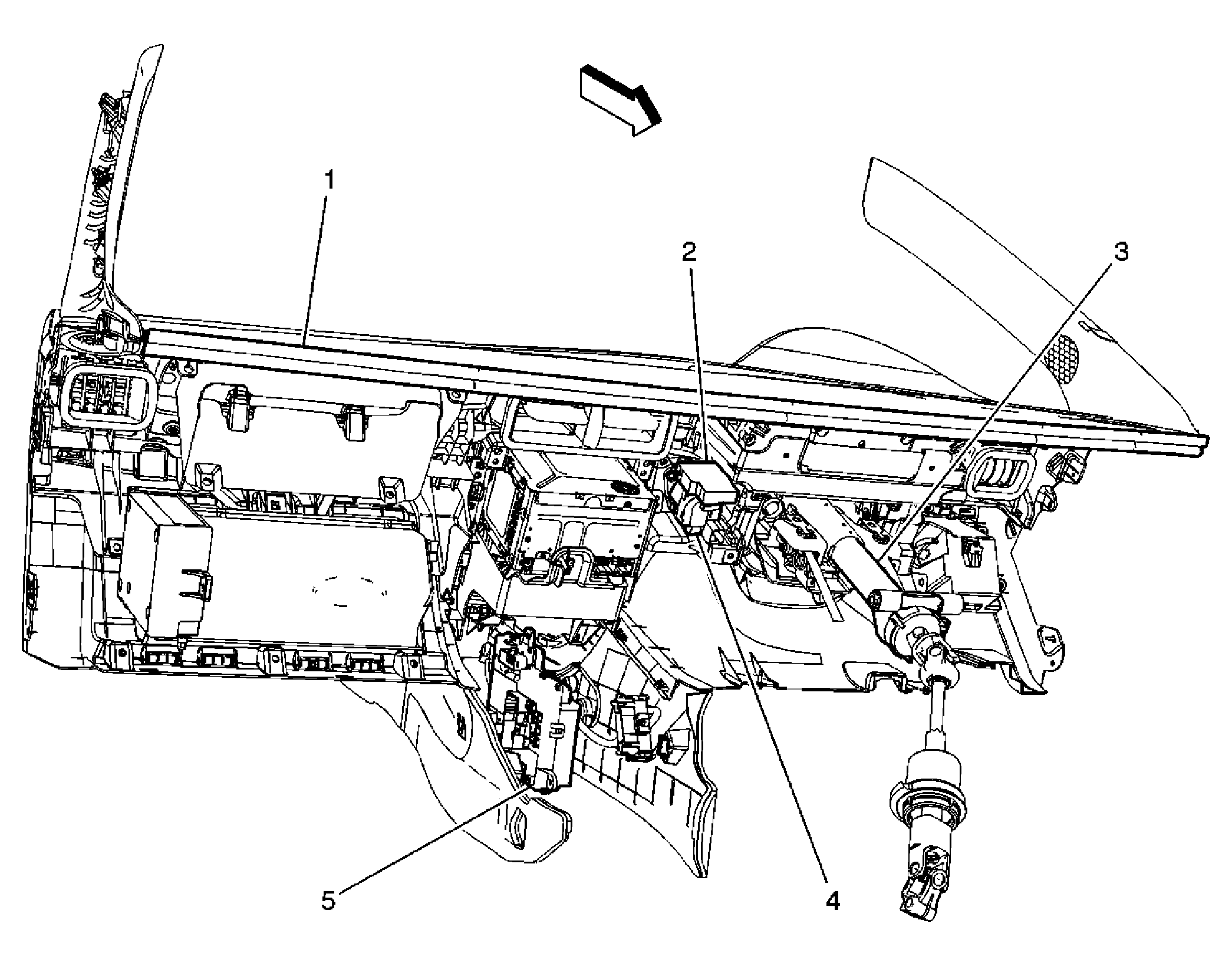

Fig 1: View Behind I/P Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Theft Deterrent Control Module
3	Steering Column
4	Ignition Switch
5	Body Control Module (BCM)
