Power Mirror Switch Replacement

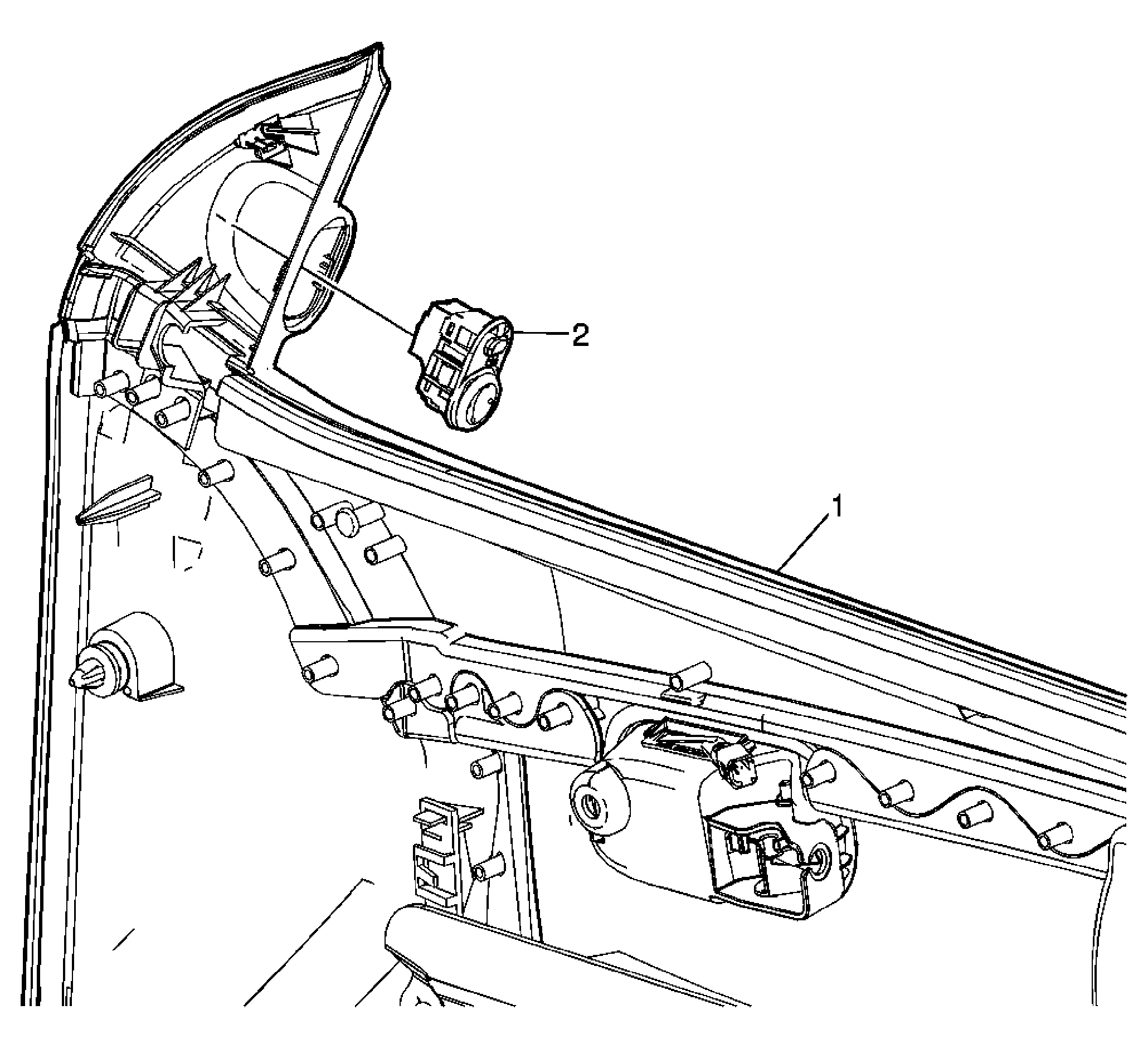

Fig 1: View Of Power Mirror Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove front door switch bezel. Refer to Front Door Switch Bezel Replacement (Driver Side) or Front Door Switch Bezel Replacement (Passenger Side) .
1	Front Side Door Trim Panel Refer to Front Side Door Trim Panel Replacement .
2	Outside Rear View Mirror Switch Assembly Tip: Disconnect electrical connector.
