Power Outlet Component Views

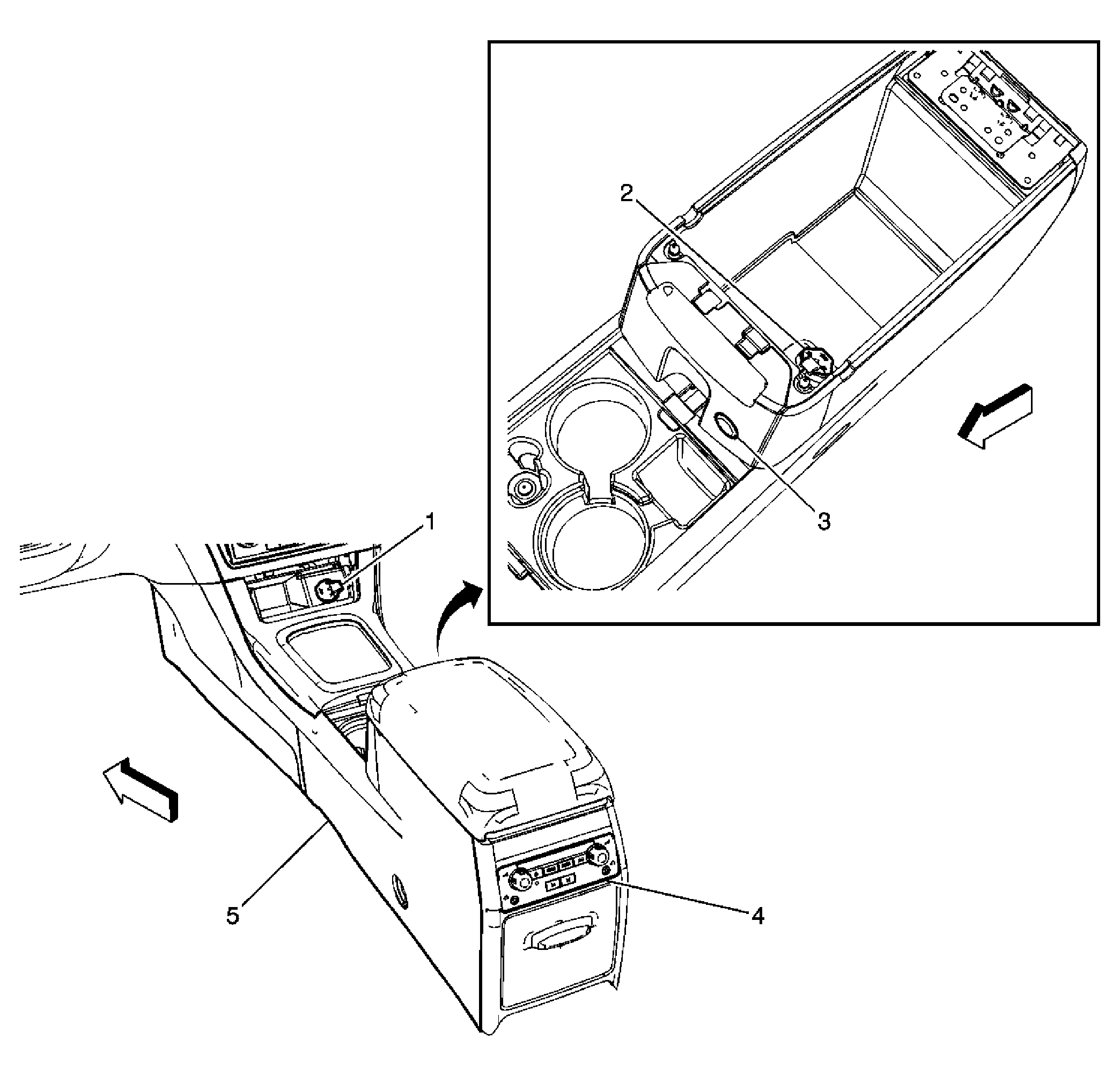

Fig 1: Identifying Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet (w/o DT4), Cigar Lighter (DT4)
2	Auxiliary Power Outlet (NW7)
3	Traction Control Switch (NW7)
4	Rear Seat Audio (RSA) Controller (UK6)
5	Console Trim
