Hybrid Controls Component Views

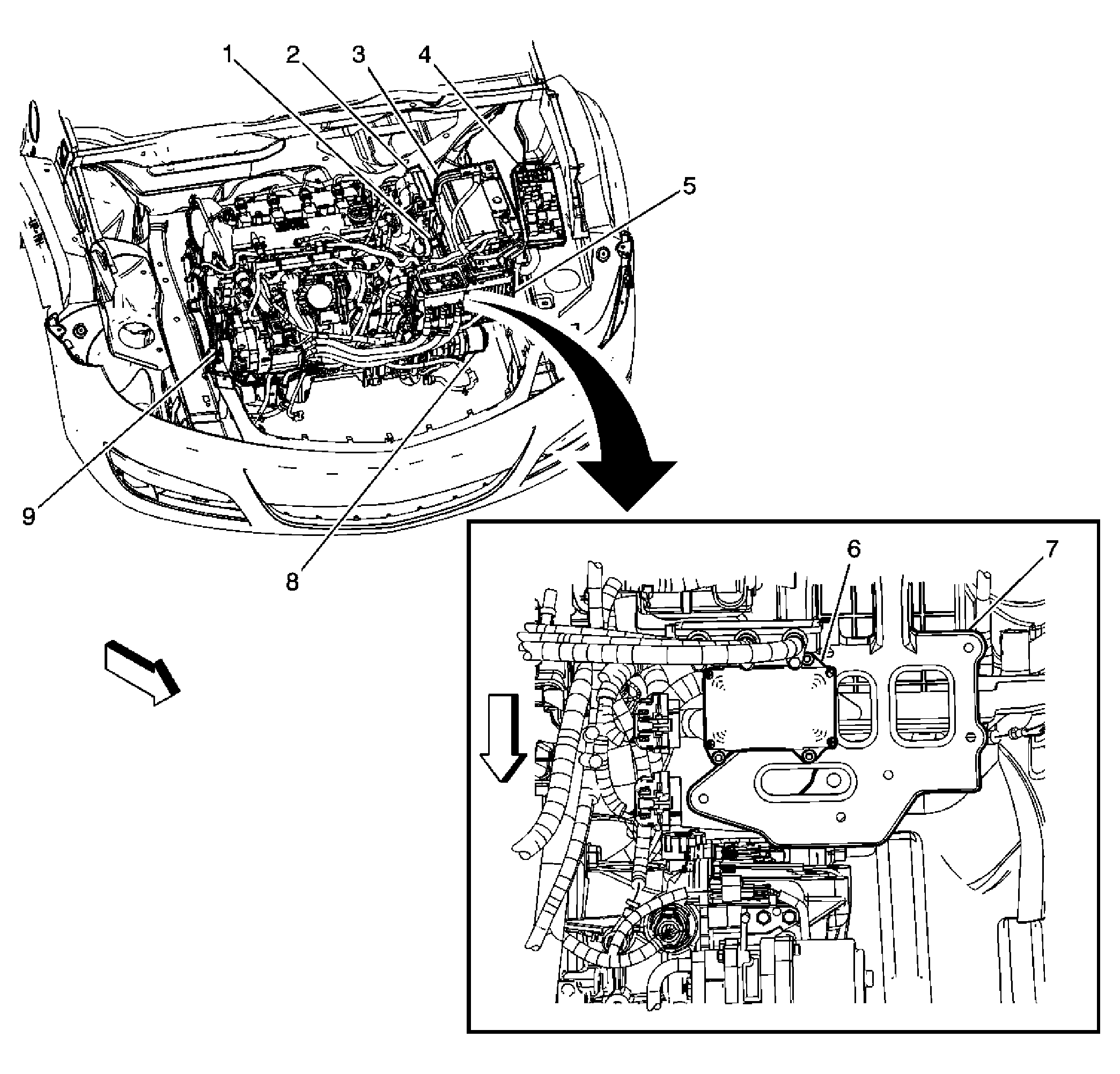

Fig 1: View Of Front Engine Compartment (LAT)
GM1873502Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Control Module (TCM)
2 Engine Control Module (ECM)
3 Battery
4 Fuse Block - Underhood
5 Starter Generator Control Module (SGCM)
6 Pump Driver
7 Starter Generator Control Module (SGCM) Bracket
8 Transmission Pump
9 Starter Generator
