Remote Function Schematics

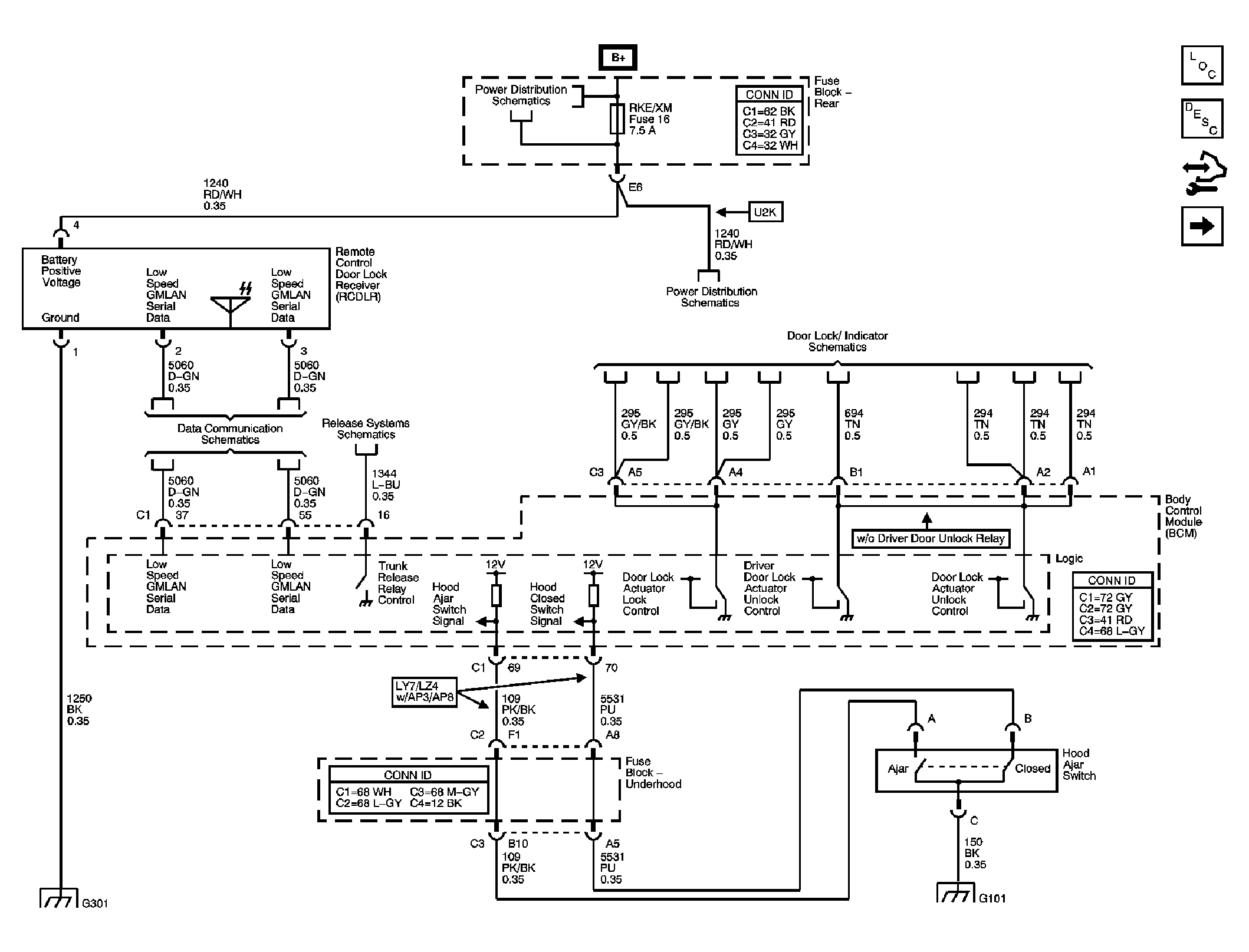

Fig 1: Keyless Entry (w/o HP7) Schematic
GM1808264Courtesy of GENERAL MOTORS CORP.

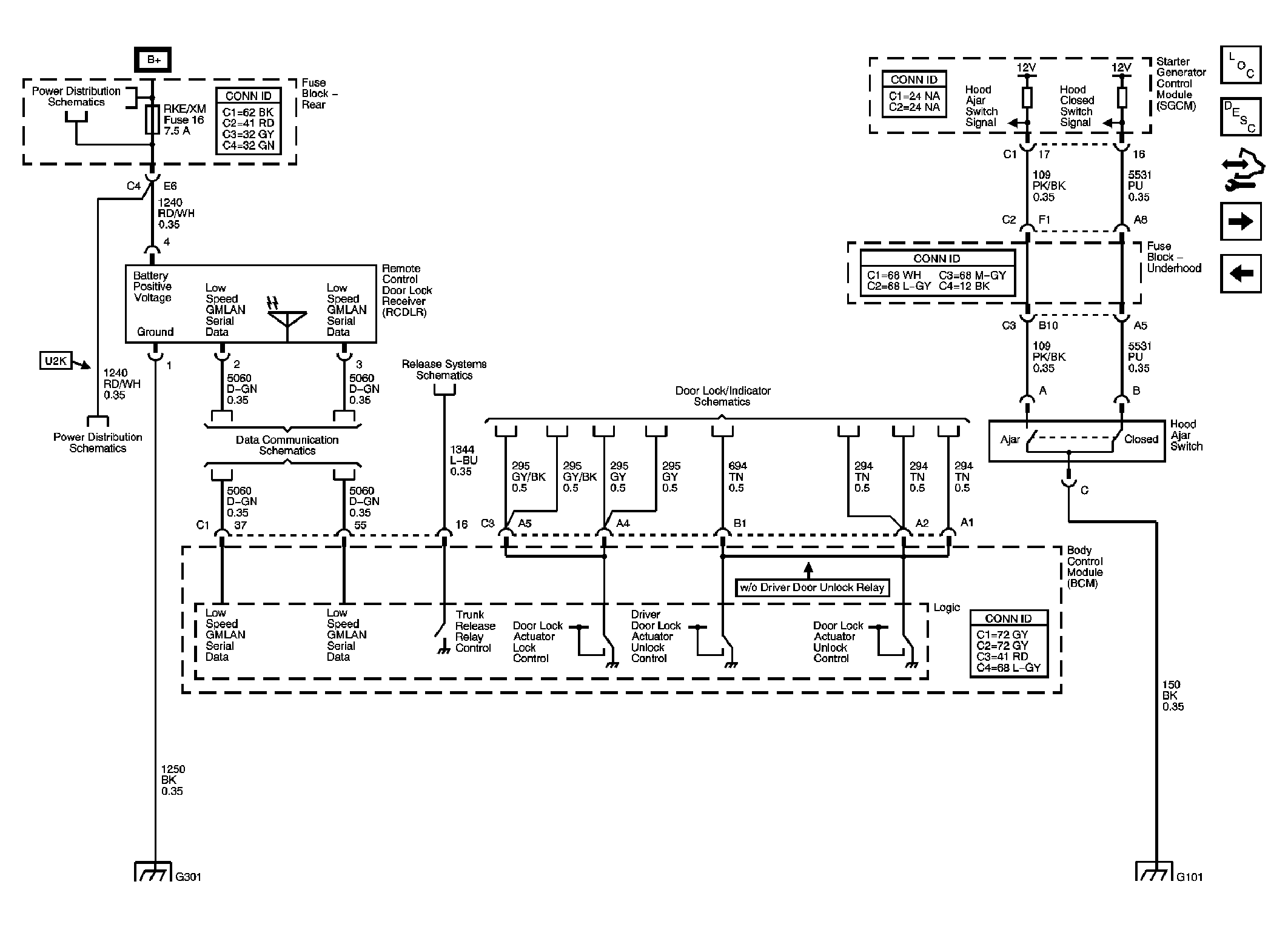

Fig 2: Keyless Entry - HP7 Schematic
GM1872208Courtesy of GENERAL MOTORS CORP.
Fig 3: Universal Garage Door Opener Schematic
GM1808267Courtesy of GENERAL MOTORS CORP.
