Cruise Control Schematics

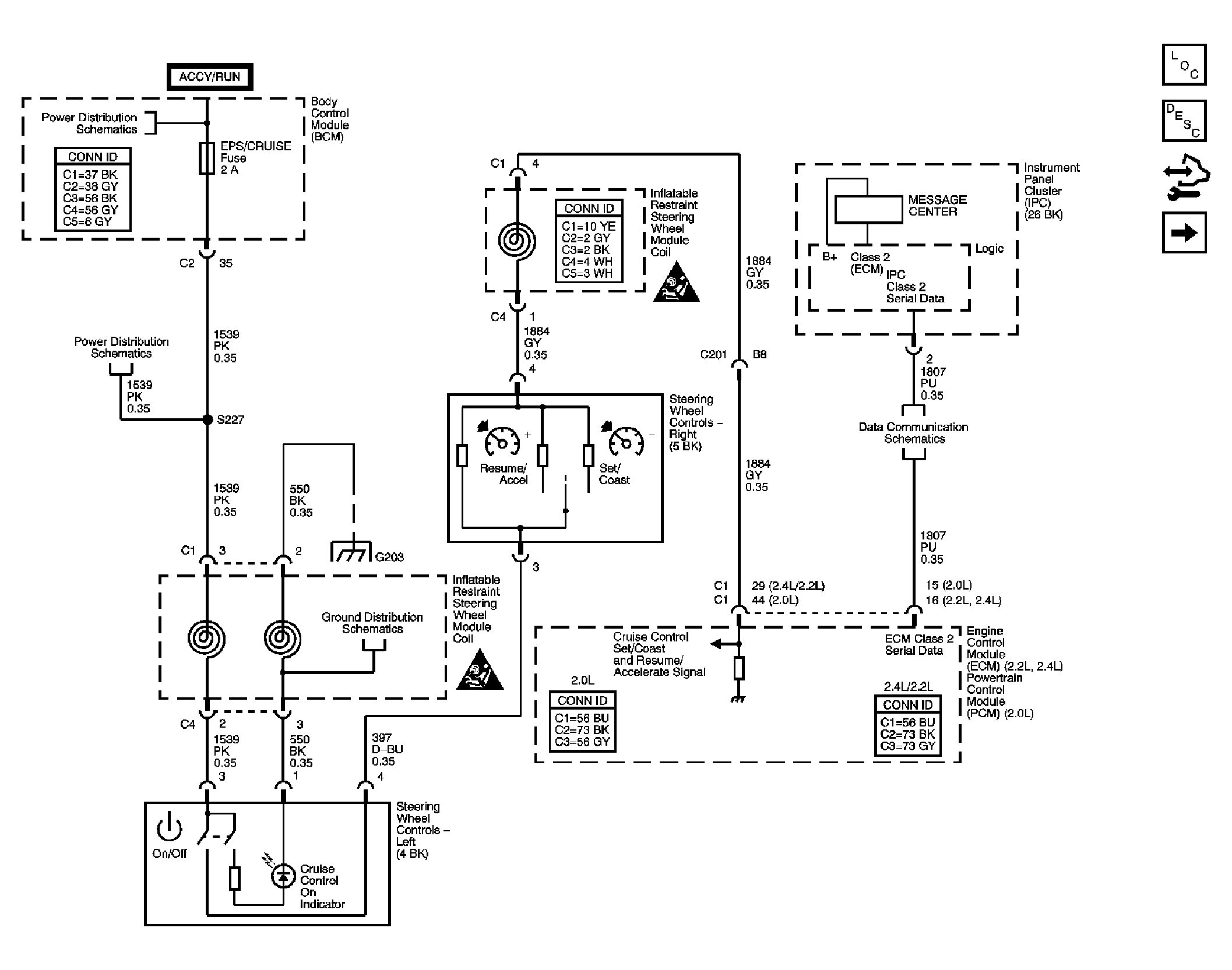

Fig 1: Driver Controls
GM1768399Courtesy of GENERAL MOTORS CORP.

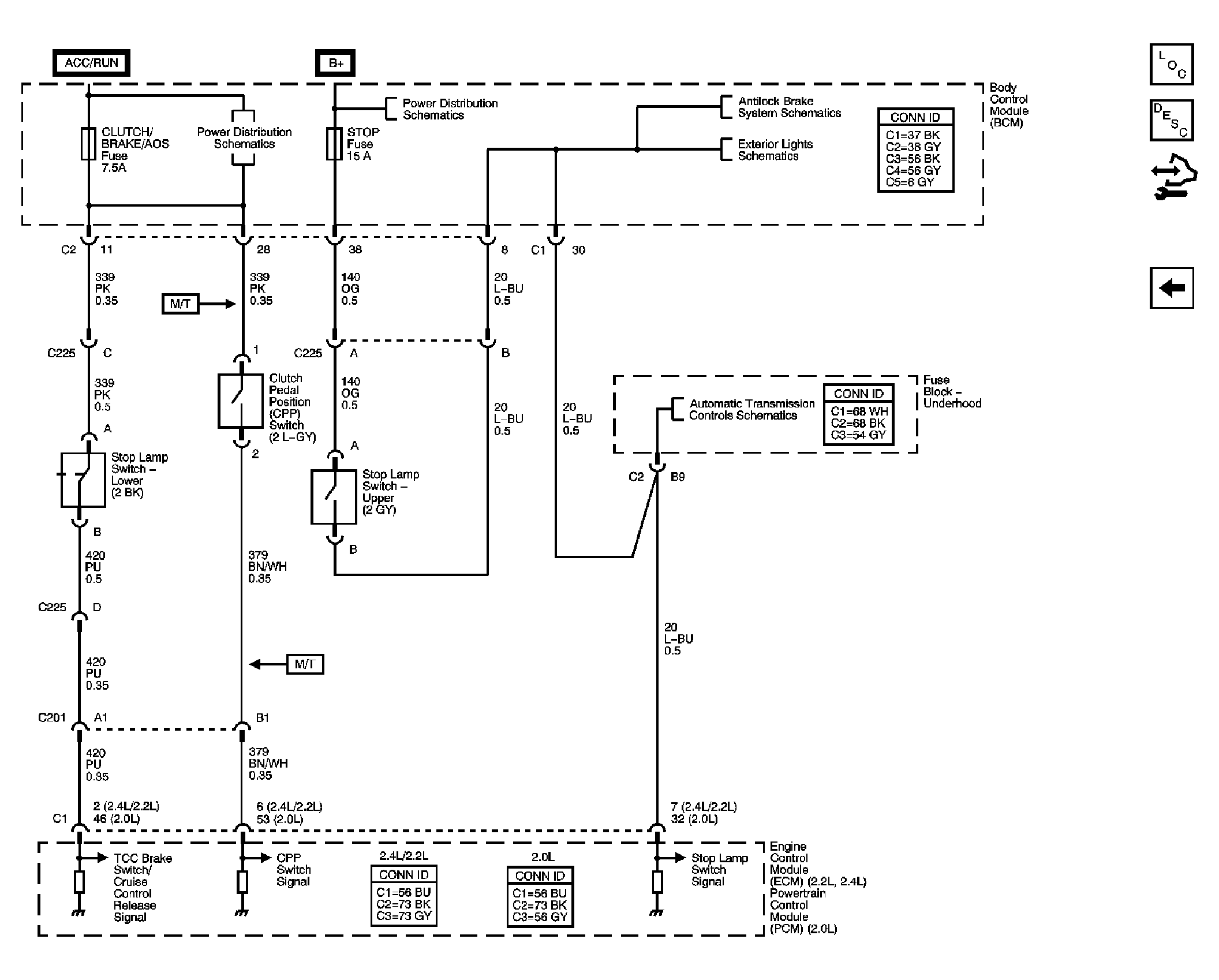

Fig 2: Stop Lamp and Clutch Switches
GM1768405Courtesy of GENERAL MOTORS CORP.
