Power Window Schematics

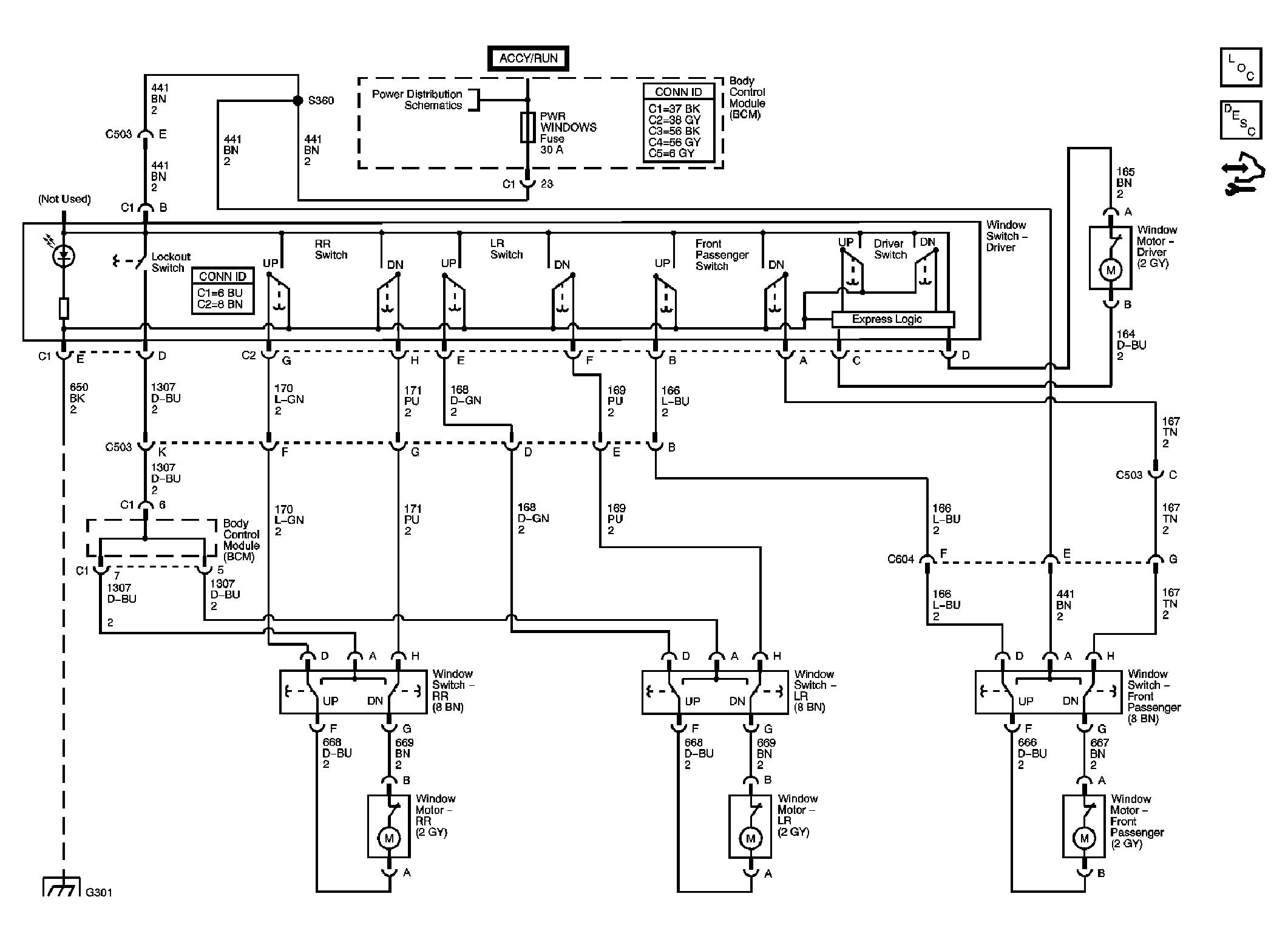

Fig 1: Power Window Schematics - Sedan
GM1769077Courtesy of GENERAL MOTORS CORP.

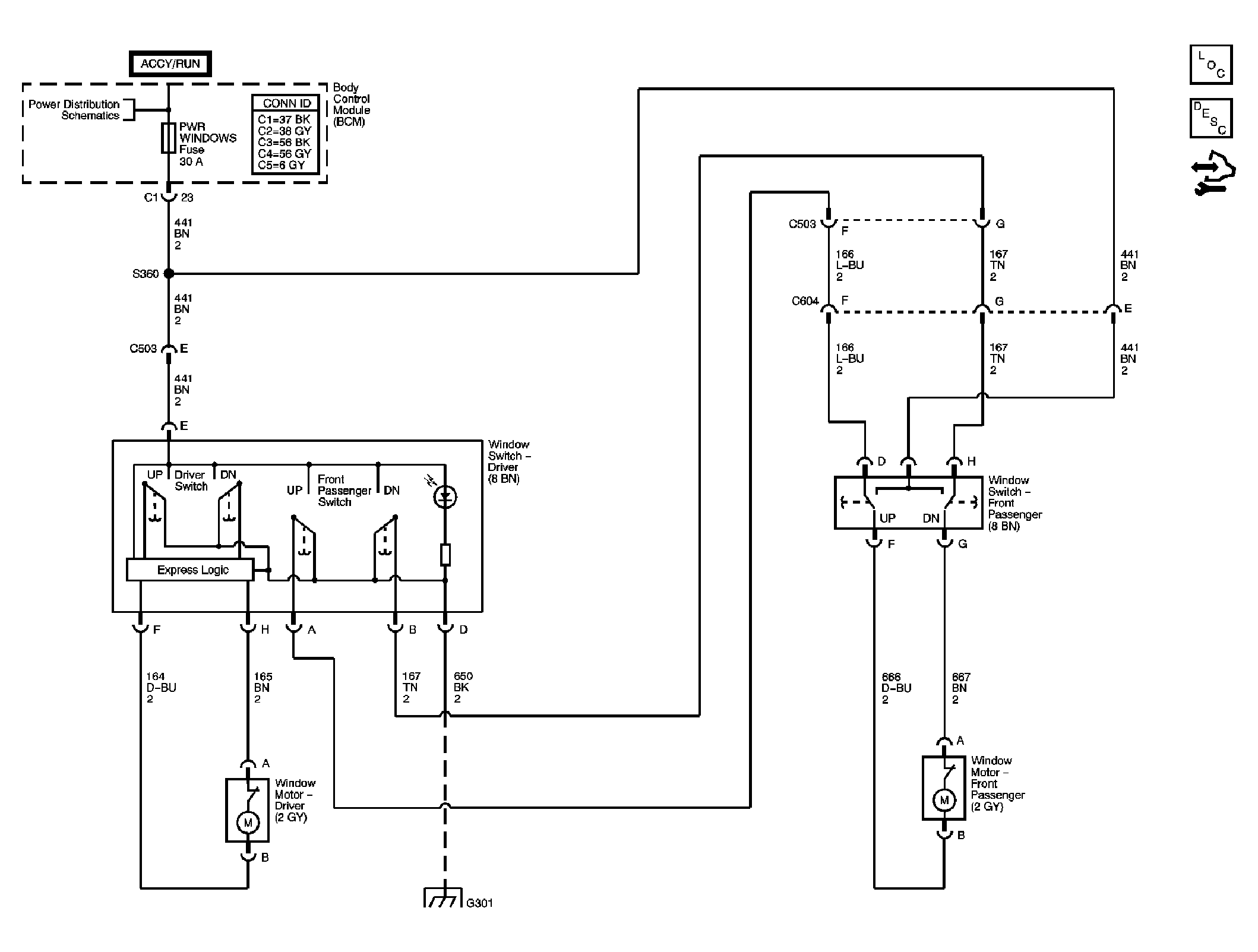

Fig 2: Power Window Schematics - Coupe
GM1769079Courtesy of GENERAL MOTORS CORP.
