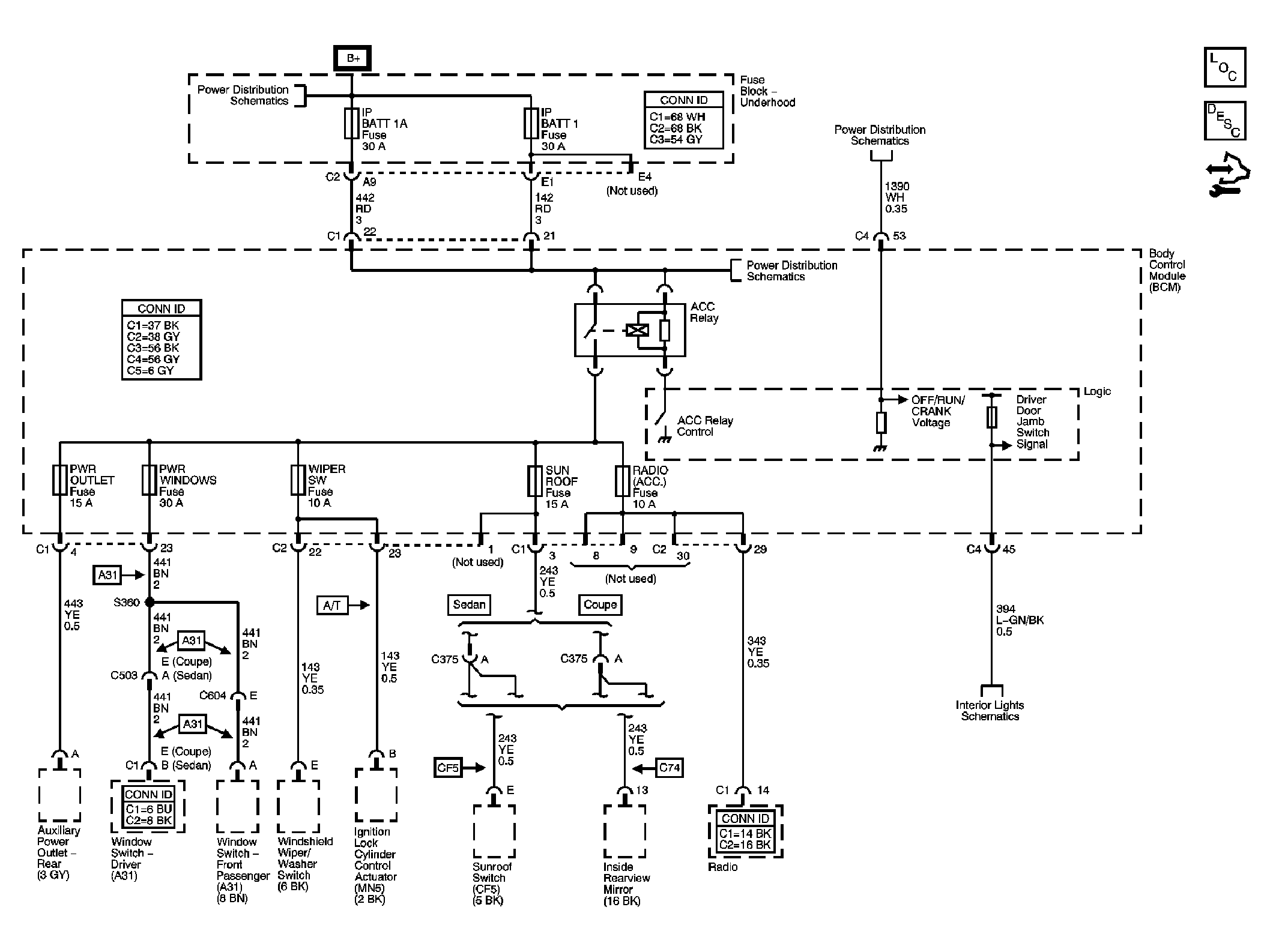

Home › Saturn › 2007 › Ion Red Line › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Wiring Systems And Power Management - Introduction › Schematic and Routing Diagrams › Power Moding Schematics
