Installation Procedure

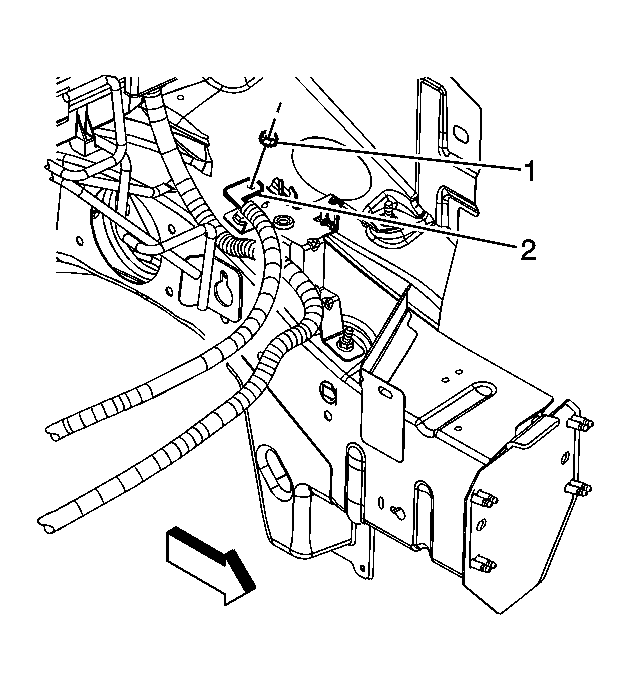

    Fig 1: View Of Negative Battery Cable Ground
    GM1650330Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable ground.
  2. Install the negative battery cable ground terminal (2) to the stud.
    3. NOTE: Refer to Fastener Notice .
  3. Install the battery cable ground nut (1) to the stud on the side rail.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

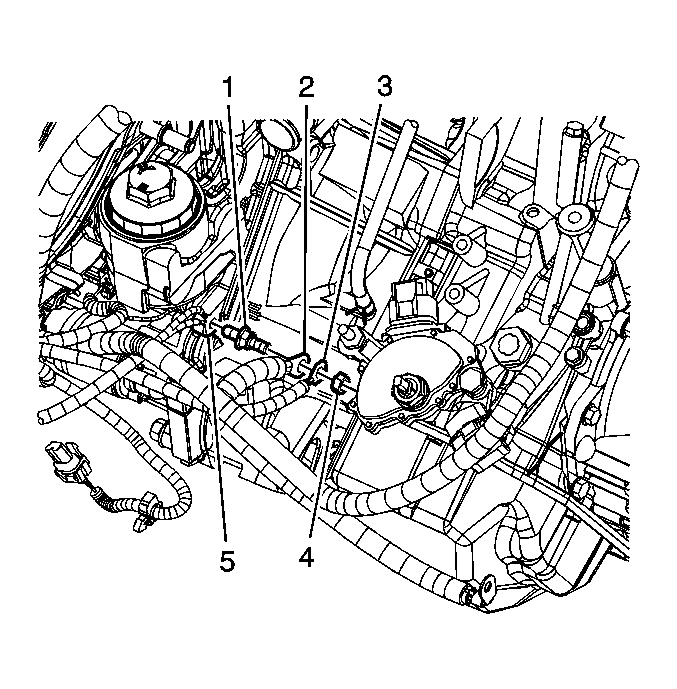

    4. Fig 2: View Of Battery Negative Cable
    GM1648000Courtesy of GENERAL MOTORS CORP.
  4. Install the negative battery cable ground terminal (2) to the stud (1).
  5. Install the engine harness ground terminal (3) to the stud (1).
  6. Install the engine harness ground nut (4).

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

  7. Tape the negative battery cable ground to the wiring harness near the transmission.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
