Installation Procedure

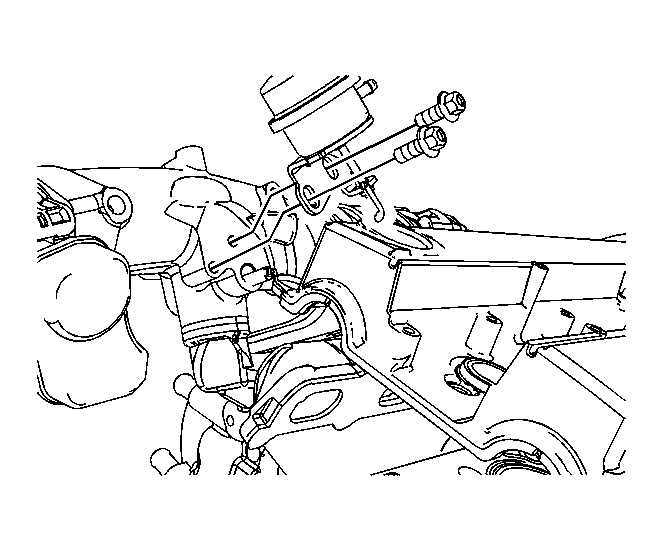

    Fig 1: View Of bypass valve actuator
    GM1686669Courtesy of GENERAL MOTORS CORP.
  1. Install the bypass valve actuator.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bypass valve actuator bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Connect the vacuum hoses to the bypass valve actuator.
