HVAC Component Views

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

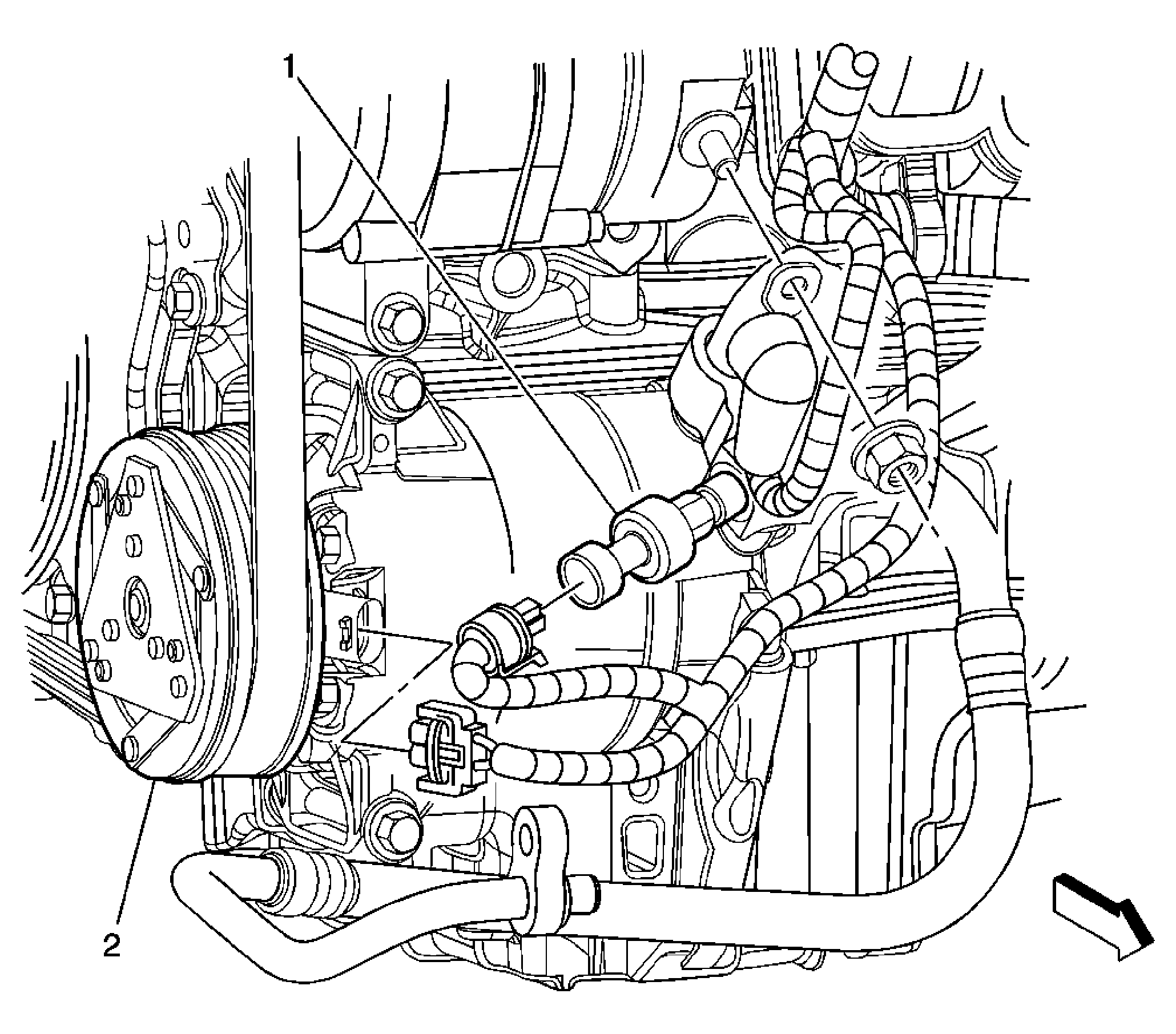

Fig 1: Lower Right Side Of Engine (C60) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Refrigerant Pressure Sensor
2	A/C Compressor Clutch

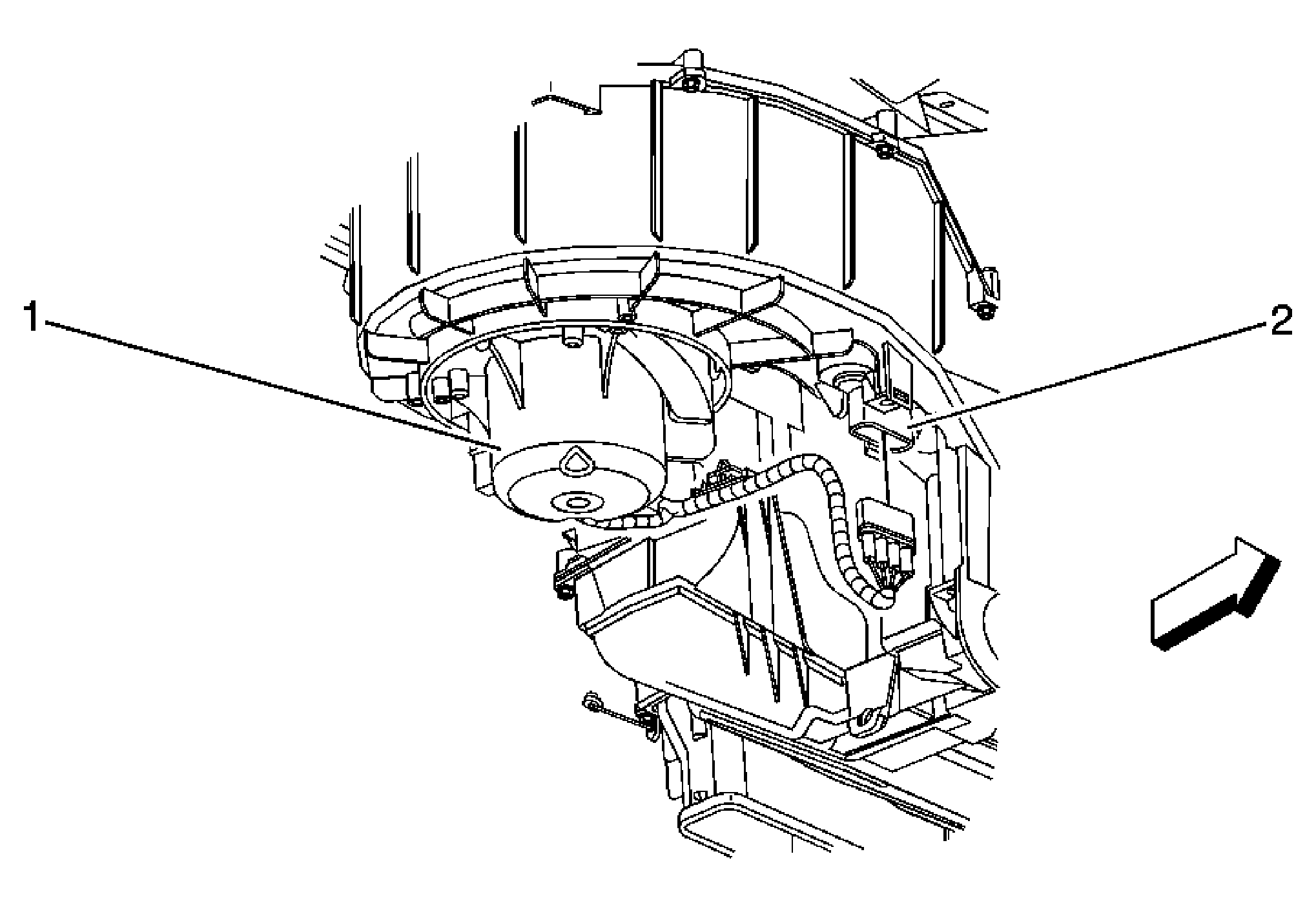

Fig 2: Lower RF Of Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Resistor Assembly

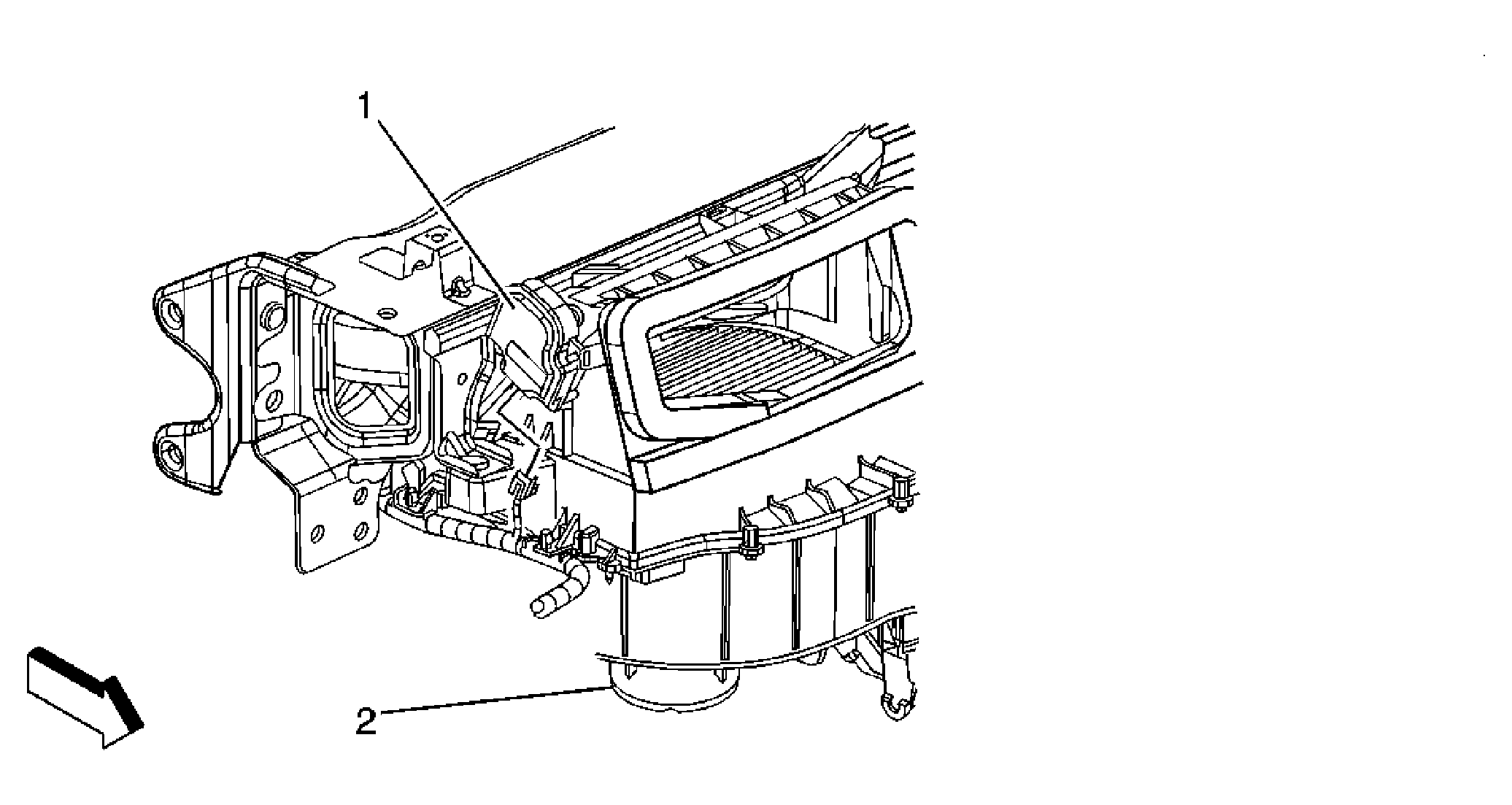

Fig 3: Behind Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
2	Blower Motor

Fig 4: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (M75/M43)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch
