Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Do not bend the temperature cable.
  1. Install the temperature cable. Make certain that the cable is properly seated in the notches in the HVAC module.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the temperature cable screw.

    Tighten:  Tighten the screw to 2 N.m (18 lb in).

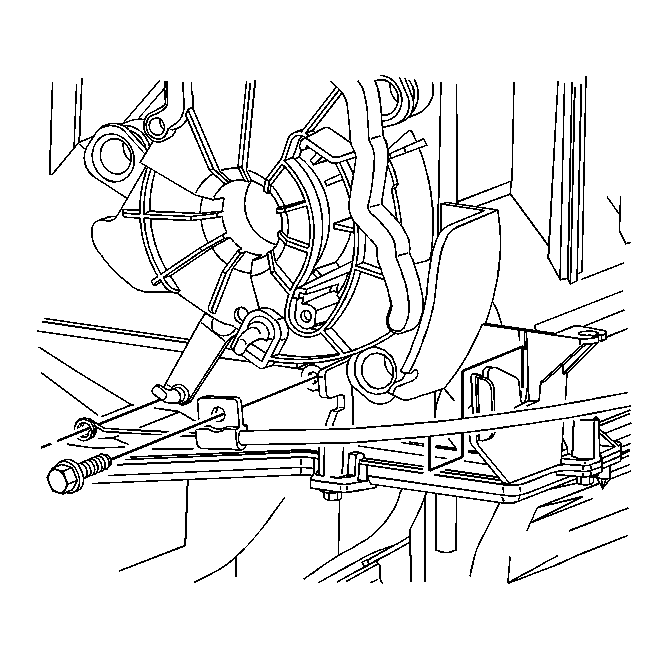

    3. Fig 1: View Of Temperature Cable
    GM873748Courtesy of GENERAL MOTORS CORP.
  3. Install the HVAC control assembly.
  4. Install the HVAC control assembly screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

    5. Fig 2: View Of HVAC Control Assembly
    GM873747Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not bend the mode and temperature cables.
  5. Connect the mode and temperature cables to the HVAC control assembly.
    6. Fig 3: View Of HVAC Control Assembly Mode & Temperature Cables
    GM873745Courtesy of GENERAL MOTORS CORP.
  6. Connect the HVAC control assembly electrical connectors.
    7. Fig 4: View Of HVAC Control Assembly Electrical Connectors
    GM873744Courtesy of GENERAL MOTORS CORP.
  7. Place the radio in the vehicle and connect the radio electrical connectors.
    8. Fig 5: View Of Radio Electrical Connectors
    GM873752Courtesy of GENERAL MOTORS CORP.
  8. Push the radio into position.
    9. Fig 6: View Of Radio
    GM873751Courtesy of GENERAL MOTORS CORP.
  9. Install the screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  10. Connect the accessory trim plate electrical connector(s).
    11. Fig 7: View Of Accessory Trim Plate Electrical Connectors
    GM877774Courtesy of GENERAL MOTORS CORP.
  11. Align the retaining fasteners with the I/P.
    12. Fig 8: Instrument Panel Bezel/Trim Plate
    GM877771Courtesy of GENERAL MOTORS CORP.
  12. Push on the outer edge of the accessory trim plate in order to secure the retaining fasteners.
