Installation Procedure
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the HVAC control module assembly electrical connectors.

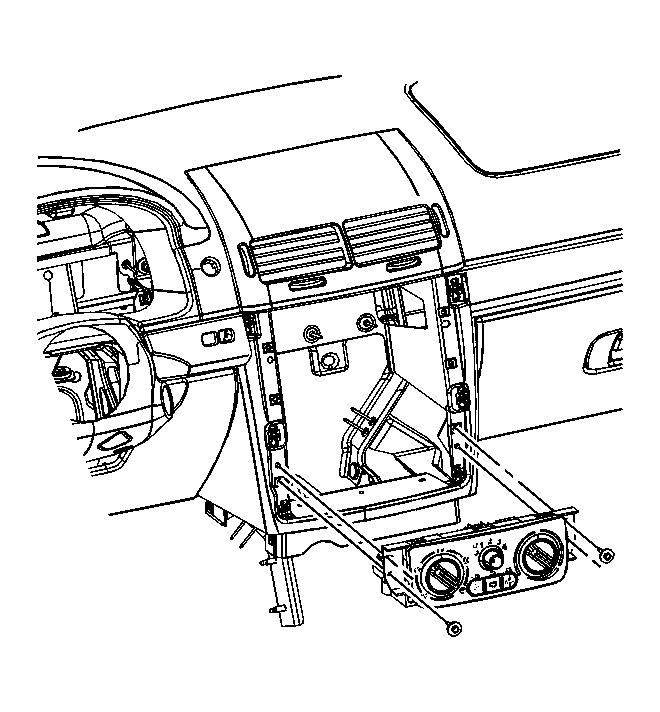

- Install the HVAC control module assembly.
- Install the HVAC control module screws.
Tighten: Tighten the screws to 2.2 N.m (19 lb in).
- Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
NOTE:
Refer to Fastener Notice
.
