Shift Linkage Disassemble

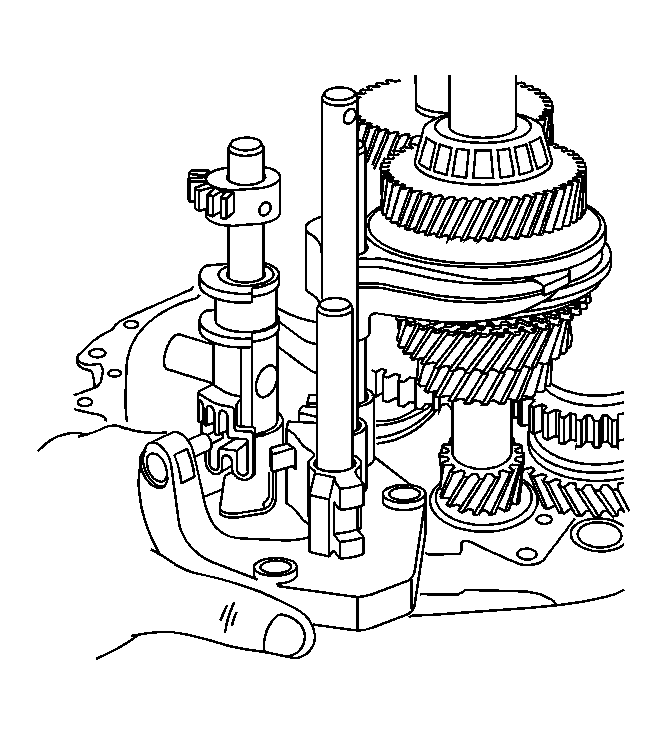

    Fig 1: View Of Shift Linkage Assembly
    GM1591714Courtesy of GENERAL MOTORS CORP.
  1. Remove the shift linkage assembly from the clutch housing case.
  2. Pull the shift position mechanism and the shift shafts partially away from the shift control bracket assembly. Partial extraction of the shift shafts provides considerable end play during removal of the gear shift mechanism.
    3. Fig 2: View Of Gear Shift Mechanism
    GM1591701Courtesy of GENERAL MOTORS CORP.
  3. Remove the gear shift mechanism from the shift control bracket assembly.
    4. Fig 3: Locating Shift Shaft Assemblies
    GM1591692Courtesy of GENERAL MOTORS CORP.
  4. Remove the shift shaft assemblies from the shift control bracket assembly.
    5. Fig 4: Exploded View Of Shift Shaft Fork
    GM895303Courtesy of GENERAL MOTORS CORP.
  5. Tap out the remaining pins in order to disassemble the shift shaft fork and/or shift shaft blocks from the shift shafts.
    6. Fig 5: Exploded View Of Shaft
    GM1407802Courtesy of GENERAL MOTORS CORP.
  6. Remove the lock ring.
  7. Remove the tension spring.
  8. Remove the roll pin and dual interlock from the shaft.
  9. Remove the gear position guide from the shaft.
