Installation Procedure

    Fig 1: Identifying Air Cleaner Components
    GM1860603Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW air cleaner element (4).
  2. Position the air cleaner housing cover (3) (with outlet duct) onto the air cleaner lower housing.
  3. Install the air cleaner outlet duct onto the throttle body.
  4. Tighten the 6 air cleaner housing cover screws (2) until snug.
    5. NOTE: Refer to Fastener Notice .
  5. Tighten the air cleaner outlet duct clamp (1) at the throttle body.

    Tighten:  Tighten the clamp to 4 N.m (35 lb in).

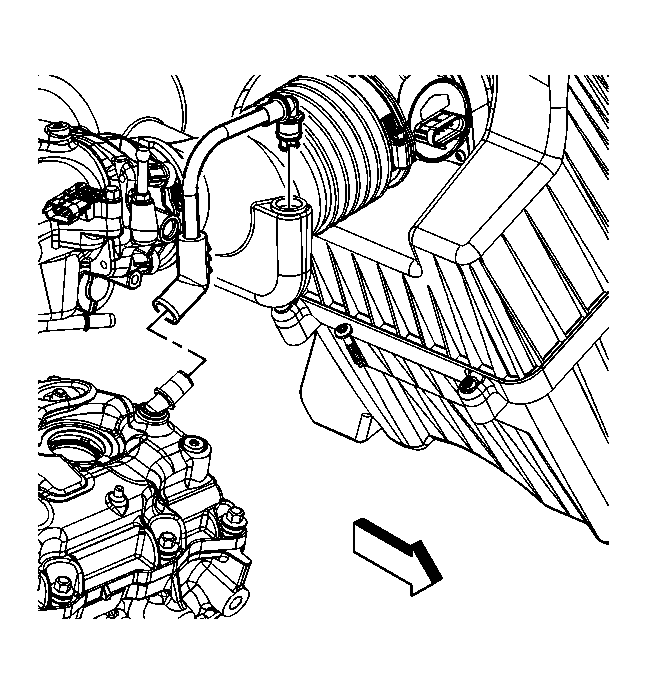

    6. Fig 2: Locating PCV Fresh Air Tube
    GM1860628Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
  7. Install the PCV fresh air tube to the camshaft cover fitting.
  8. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
