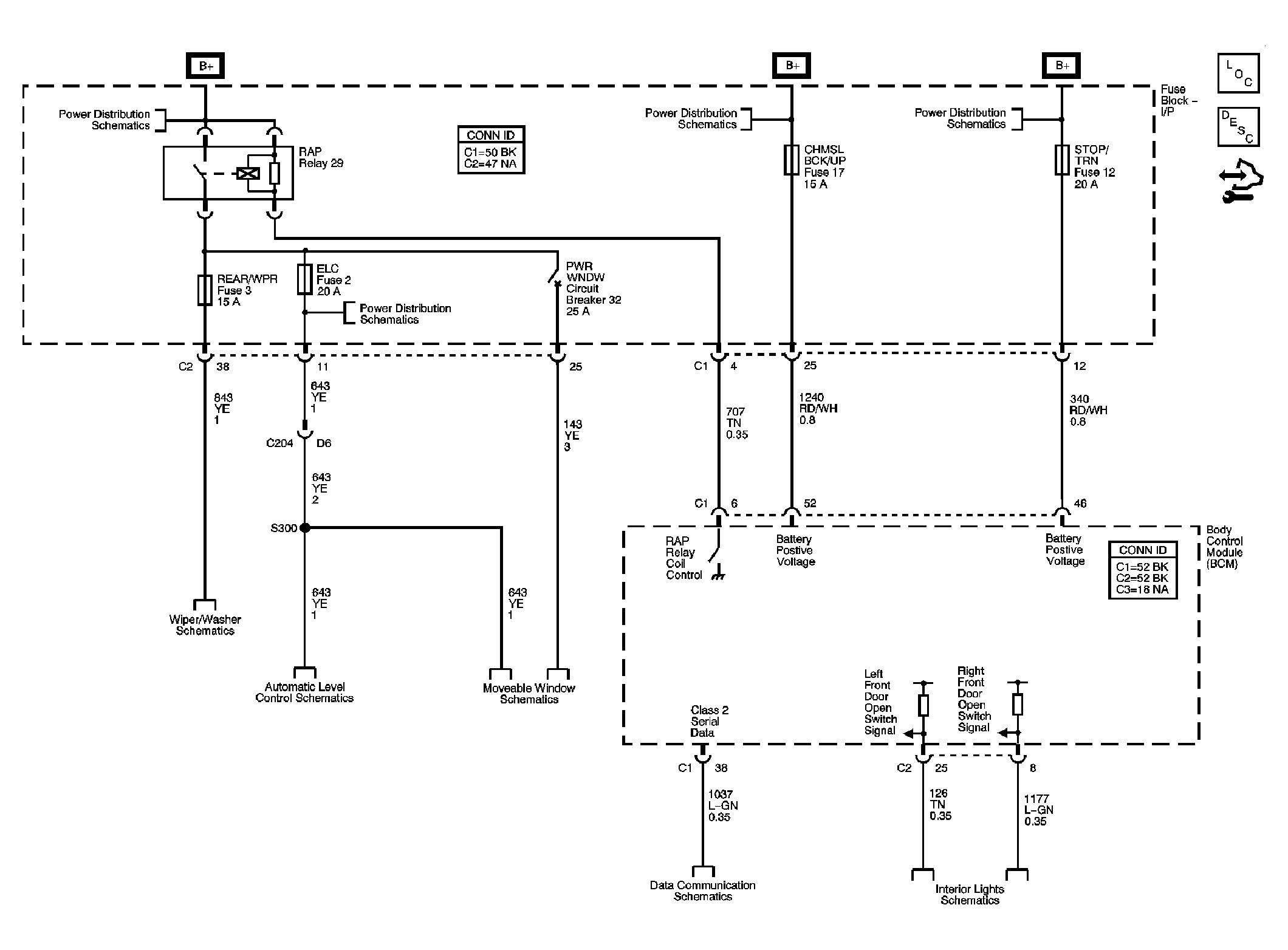

Home › Saturn › 2007 › Relay 3.9 1 › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Wiring Systems And Power Management - Introduction › Schematic and Routing Diagrams › Power Moding Schematics
