Instrument Panel Fuse Block
NOTE:
The instrument panel fuse block is located in the instrument panel, behind the right instrument panel access panel.

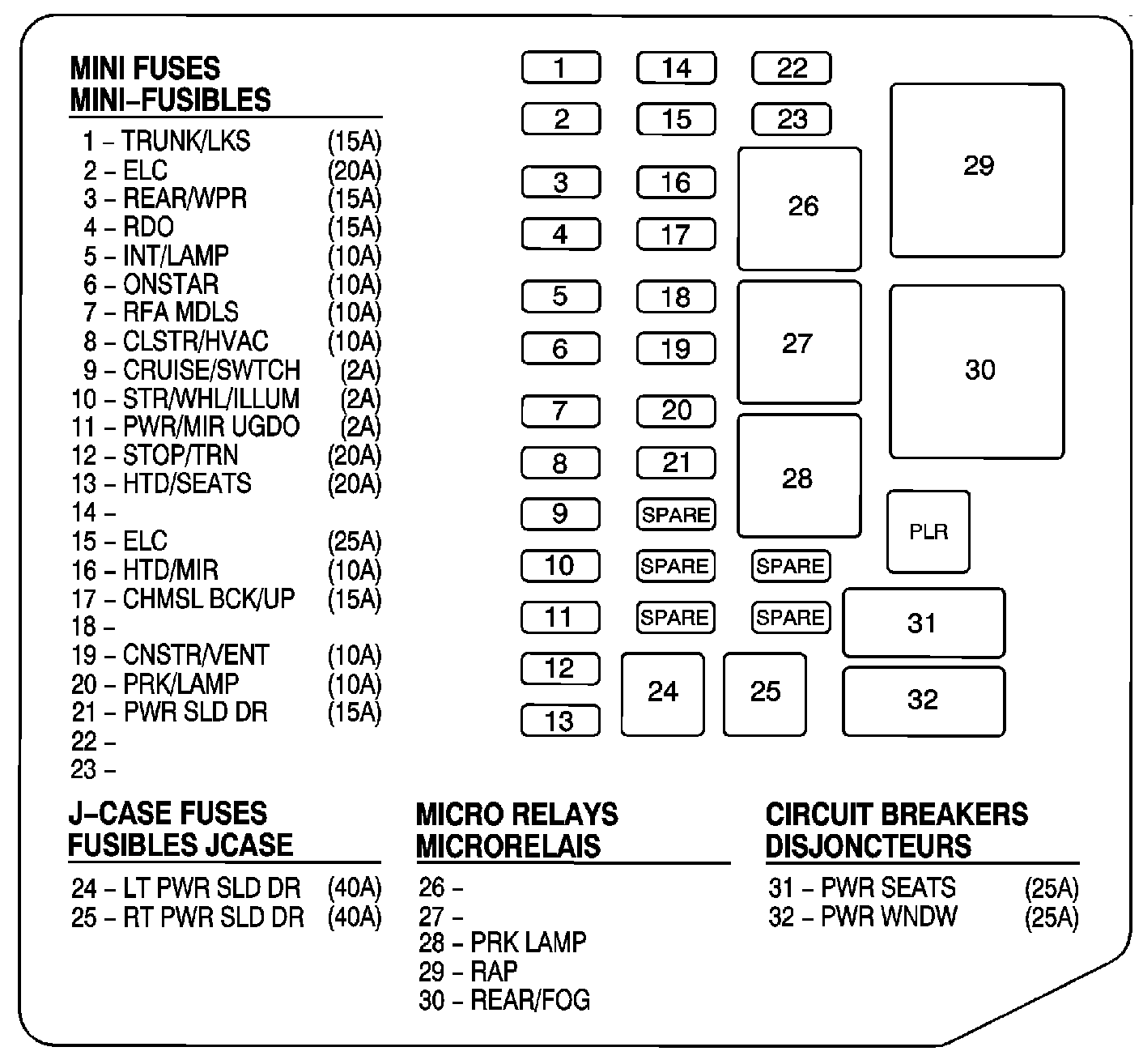

FUSE BLOCK - I/P FUSE IDENTIFICATION LEGEND
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | TRUNK/LKS Fuse | 15A | BCM |
| 2 | ELC Fuse | 20A | ALC Sensor, Multifunction Switch - Overhead Console and Rear Window Washer Fluid Pump Relay |
| 3 | RR WPR Fuse | 15A | Rear Window Wiper Motor |
| 4 | RDO Fuse | 20A | DVD Player, Mobile Entertainment Player Module and Radio |
| 5 | INT/LAMP Fuse | 10A | BCM |
| 6 | ONSTAR Fuse | 10A | DLC and VCU |
| 7 | RFA MDLS Fuse | 10A | Digital Radio Receiver and RCDLR |
| 8 | CLSTR/HVAC Fuse | 10A | HVAC Control Module and IPC |
| 9 | CRUISE/SWTCH Fuse | 2A | Cruise Control Lever |
| 10 | STRG/WHL/ILLUM Fuse | 2A | Steering Wheel Control Switch Assembly - Left and Steering Wheel Control Switch Assembly - Right |
| 11 | PWR/MIR Fuse | 10A | Garage Door Opener and Outside Rearview Mirror Switch (Early Production) |
| 2A | Garage Door Opener and Outside Rearview Mirror Switch (Late Production) | ||
| 12 | STOP/TRN Fuse | 20A | BCM |
| 13 | HTD/SEATS Fuse | 20A | Heated Seat Relay - Driver and Heated Seat Relay - Passenger |
| 14 | - | - | Not Used |
| 15 | ELC Fuse | 25A | ALC Compressor, ALC Inflator Air Switch, ALC Sensor, ALC Solenoid Valve, and Trailer Wiring Blunt Cut |
| 16 | HTD/MIR Fuse | 10A | Outside Rearview Mirror - Driver and Outside Rearview Mirror - Passenger |
| 17 | CHMSL BCK/UP Fuse | 15A | BCM |
| 18 | - | - | Not Used |
| 19 | CNSTR/VENT Fuse | 10A | EVAP Canister Vent Solenoid |
| 20 | PRK/LAMP Fuse | 10A | PRK LAMP Relay |
| 21 | PWR SLD DR Fuse | 15A | LSDM and RSDM |
| 22 | - | - | Not Used |
| 23 | - | - | Not Used |
| 24 | LT PWR SLD DR Fuse | 40A | LSDM |
| 25 | RT PWR SLD DR Fuse | 40A | RSDM |
| 31 | PWR SEATS (Ciruit Breaker) |
25A | Seat Adjuster Switch - Driver or Memory Seat Module - Driver and Seat Adjuster Switch - Passenger |
| 32 | PWR WNDW (Ciruit Breaker) |
25A | Window Switch - Driver and Window Switch - Passenger |
FUSE BLOCK - I/P RELAY IDENTIFICATION LEGEND
| No. | Relay Description | Circuits |
|---|---|---|
| 26 | - | Not Used |
| 27 | - | Not Used |
| 28 | PRK LAMP Relay | License Lamp - Left, License Lamp - Right, Tail Lamp - Left, Tail Lamp - Right, Tail/Stop and Turn Signal Lamp - Left, Tail/Stop and Turn Signal Lamp - Right, and Trailer Wiring Blunt Cut |
| 29 | RAP Relay | ELC and RR WPR Fuses, and PWR WNDW Circuit Breaker |
| 30 | REAR/FOG Relay | HTD/MIR Fuse and Rear Window Defogger Grid |
