Driver Information Display Switch Replacement

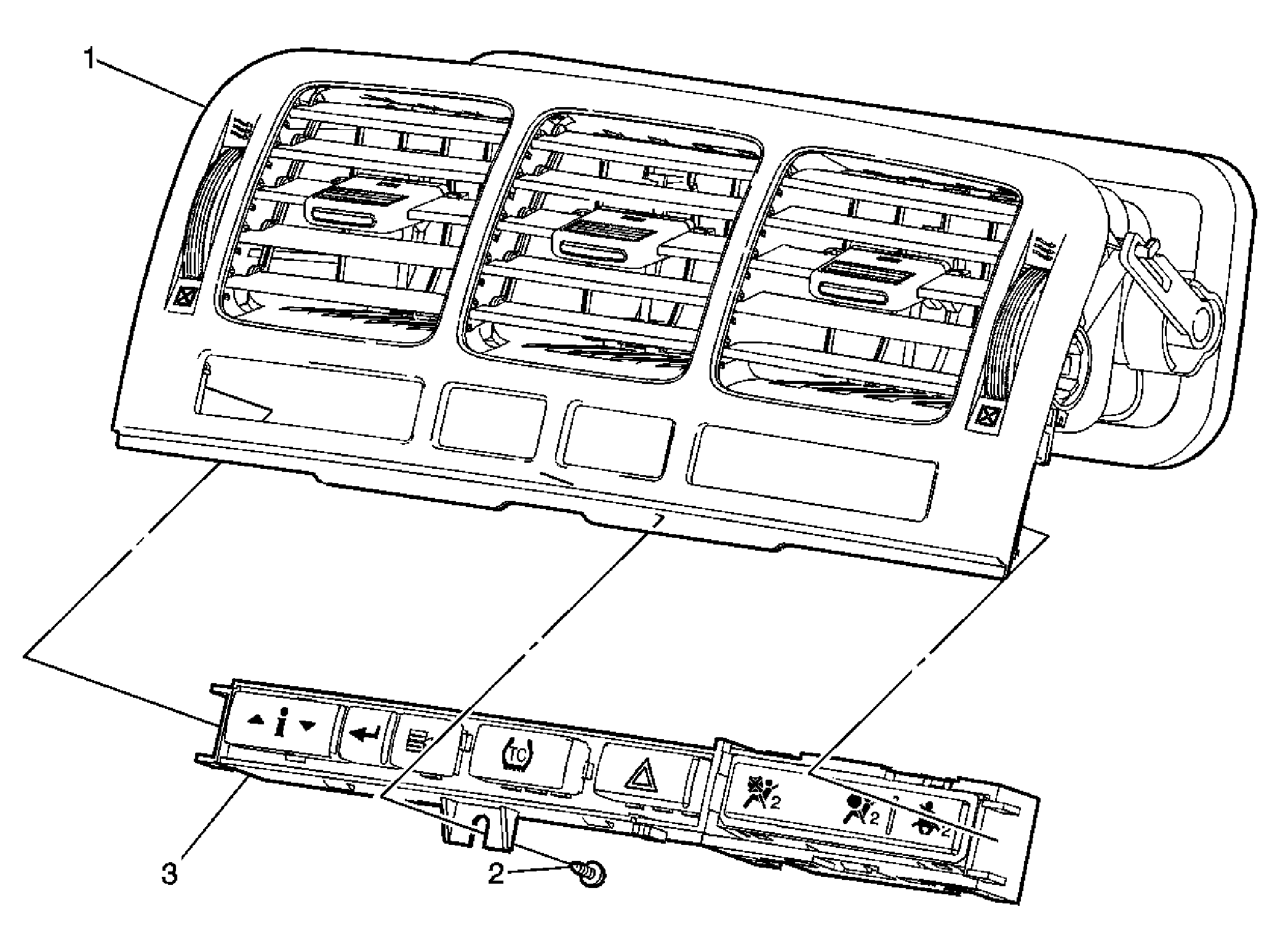

Fig 1: View f Driver Information Display Switch
GM1750456Courtesy of GENERAL MOTORS CORP.
Driver Information Display Switch Replacement

Callout Component Name
1 Instrument Panel Air Outlet Assembly
Refer to Instrument Panel Center Air Outlet Replacement .
2 Driver Information Center Switch Screw (Qty: 1)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)

3 Driver Information Center Switch Assembly
