Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

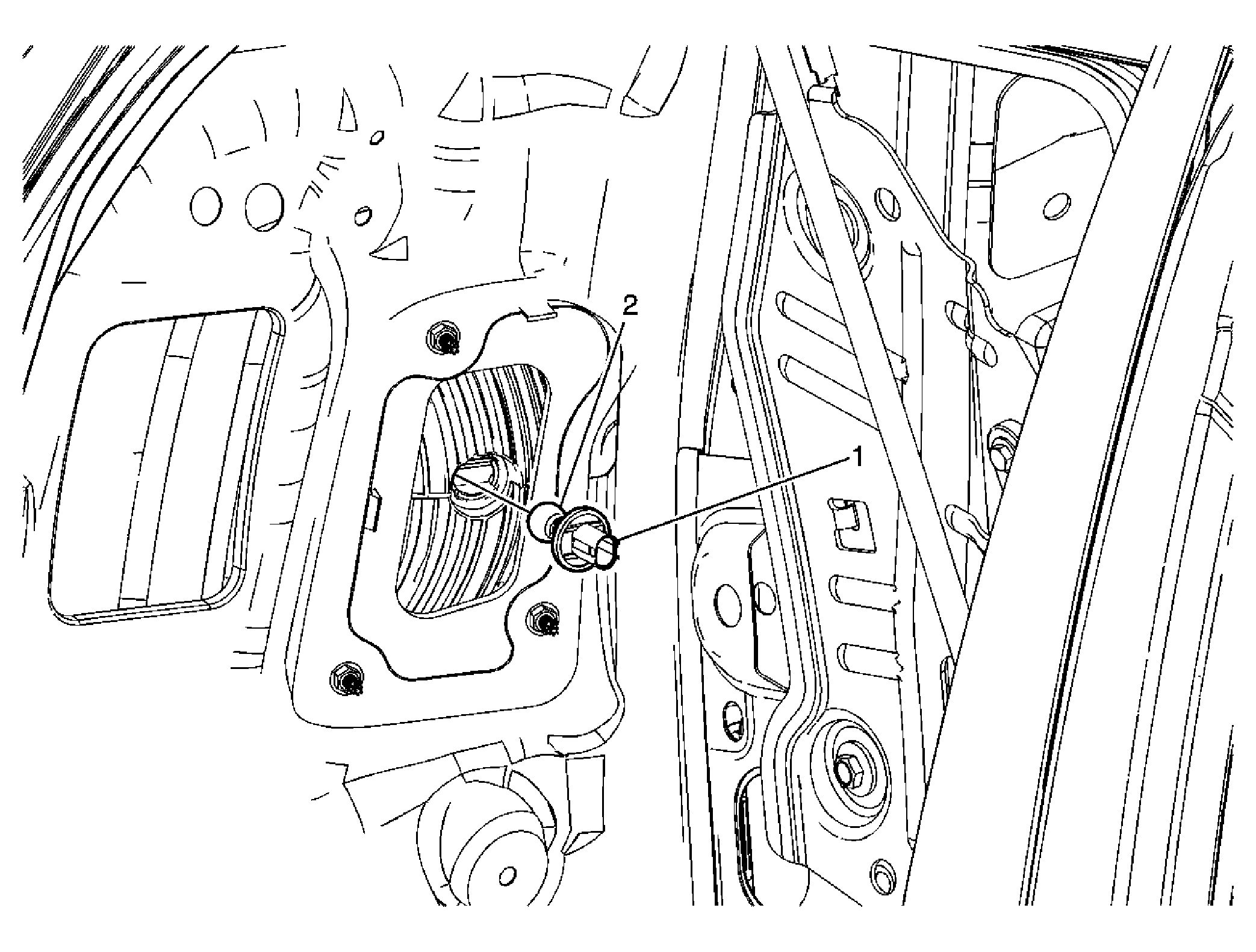

Fig 1: View Of Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the lift gate interior trim panel. Refer to Liftgate Trim Panel Replacement .
1	Back Up Lamp Socket Procedure: Rotate and remove the socket from the lamp assembly.
2	Back Up Lamp Bulb Tip: Remove the bulb and discard.
