Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

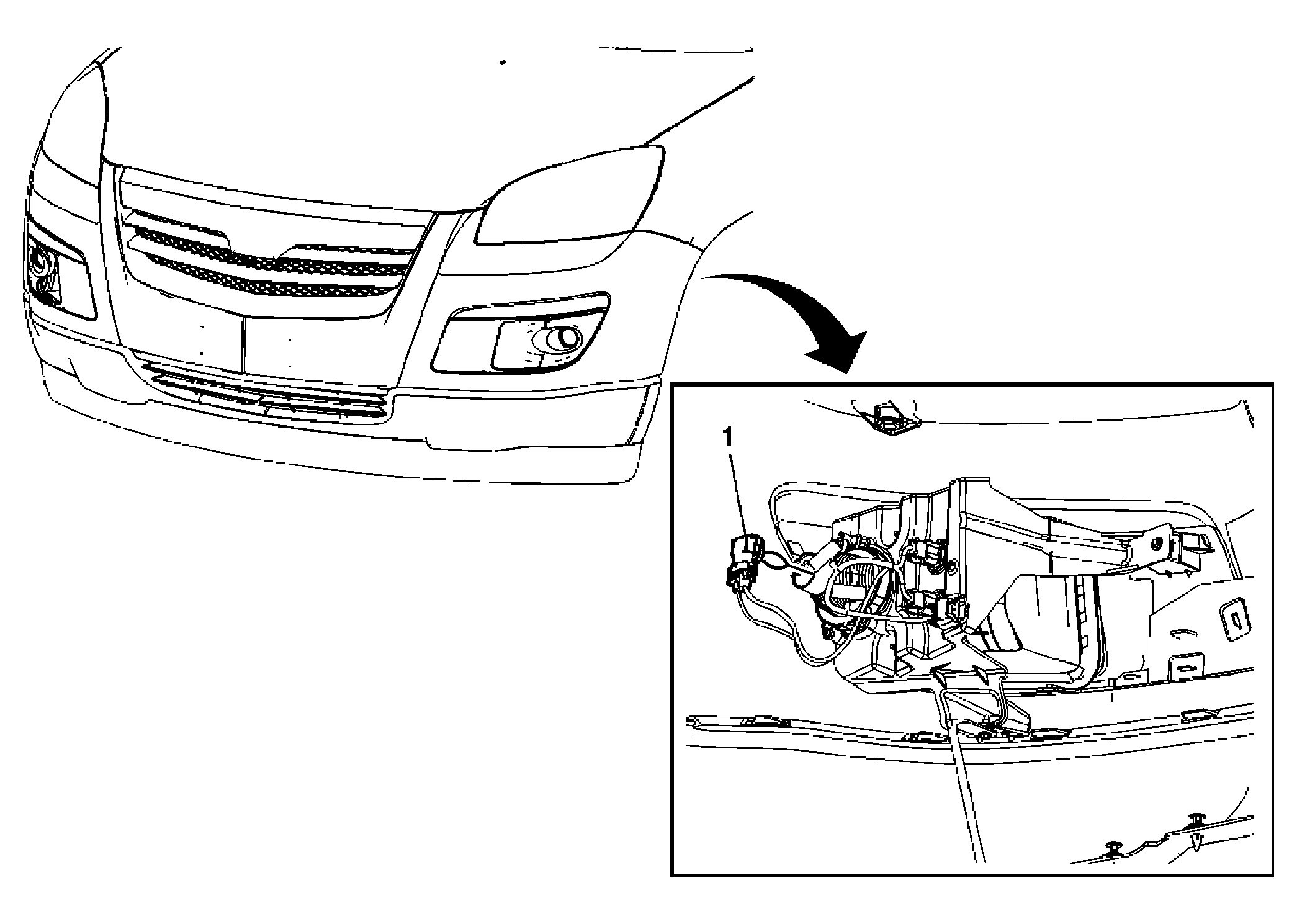

Fig 1: Identifying Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner in order to access the fog lamp bulb. Refer to Front Wheelhouse Liner Replacement (Front) or Front Wheelhouse Liner Replacement (Rear) . Disconnect the fog lamp bulb socket electrical connectors.
1	Front Fog Lamp Bulb (Qty: 2) Tip: Rotate the bulb sockets and remove.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner in order to access the fog lamp bulb. Refer to Front Wheelhouse Liner Replacement (Front) or Front Wheelhouse Liner Replacement (Rear) .
Disconnect the fog lamp bulb socket electrical connectors.

Front Fog Lamp Bulb (Qty: 2)
Tip: Rotate the bulb sockets and remove.
