Front Fog Lamp Cover Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

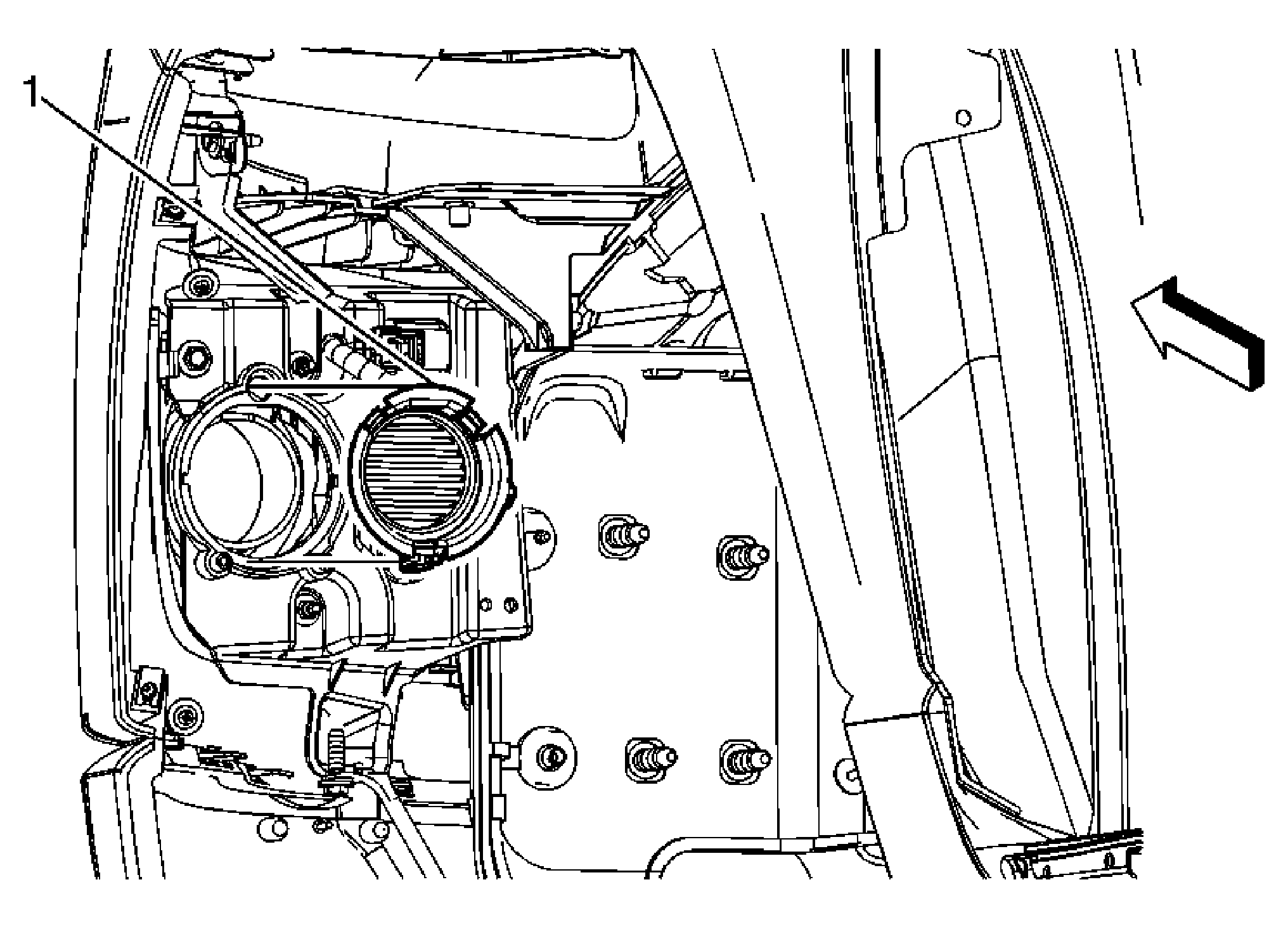

Fig 1: Identifying Front Fog Lamp Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the wheelhouse liner in order to access the fog lamp cover. Refer to Front Wheelhouse Liner Replacement (Front) or Front Wheelhouse Liner Replacement (Rear) .
1	Fog Lamp Bulb Cover Procedure: Rotate the bulb cover one quarter turn in order to remove the cover from inside the front bumper fascia.
