Tail Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

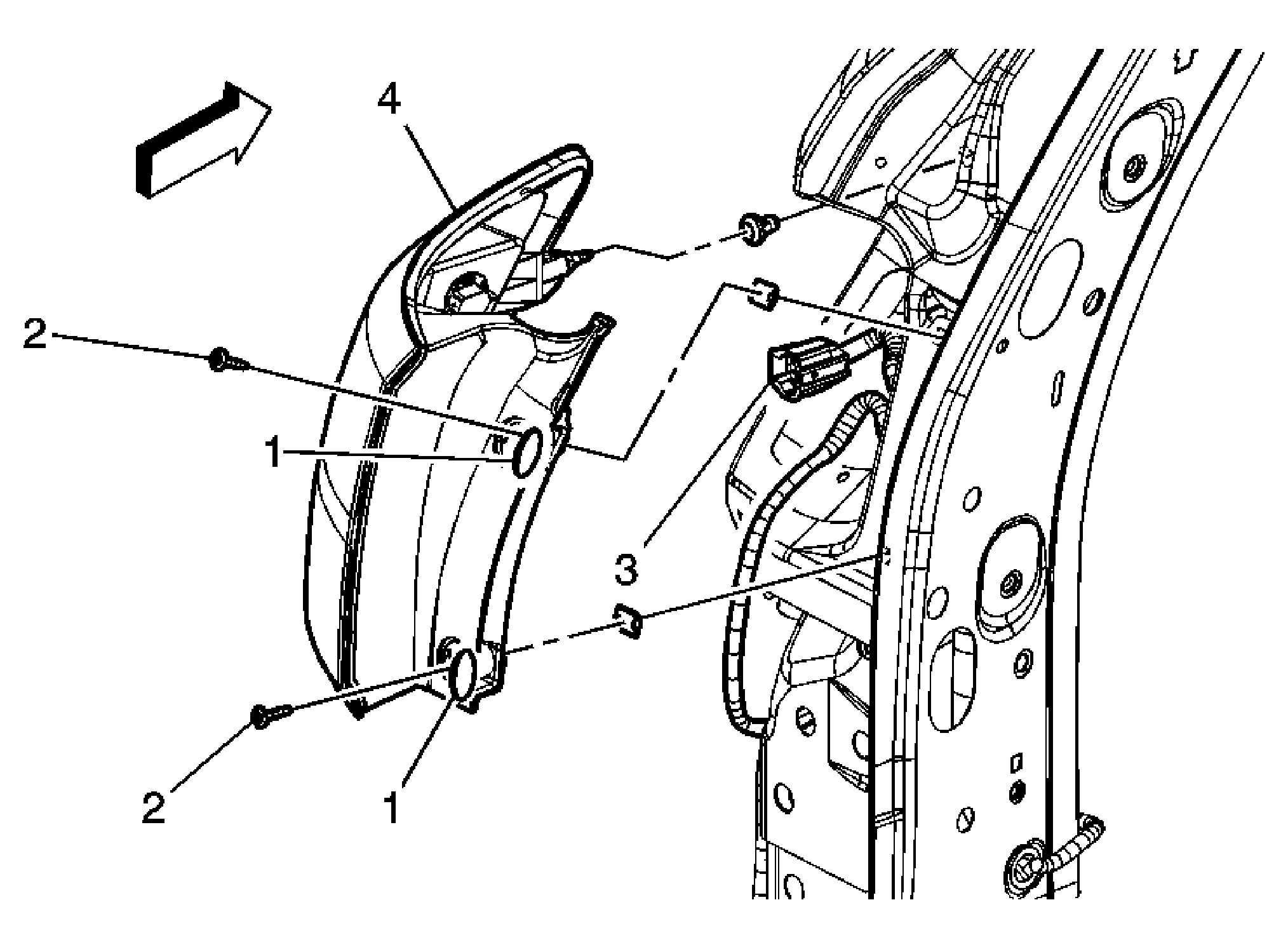

Fig 1: View Of Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Open the lift gate in order to access the tail lamp access hole covers.
1	Tail Lamp Access Hole Covers (Qty: 2) Tip: Use a small flat bladed tool in order to remove the covers.
2	Tail Lamp Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
3	Tail Lamp Wiring Harness Connector Tip: Disconnect the harness prior to removing the lamp assembly.
4	Tail Lamp Assembly Tip: Transfer the turn signal and side marker lamp bulbs as needed.
