Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

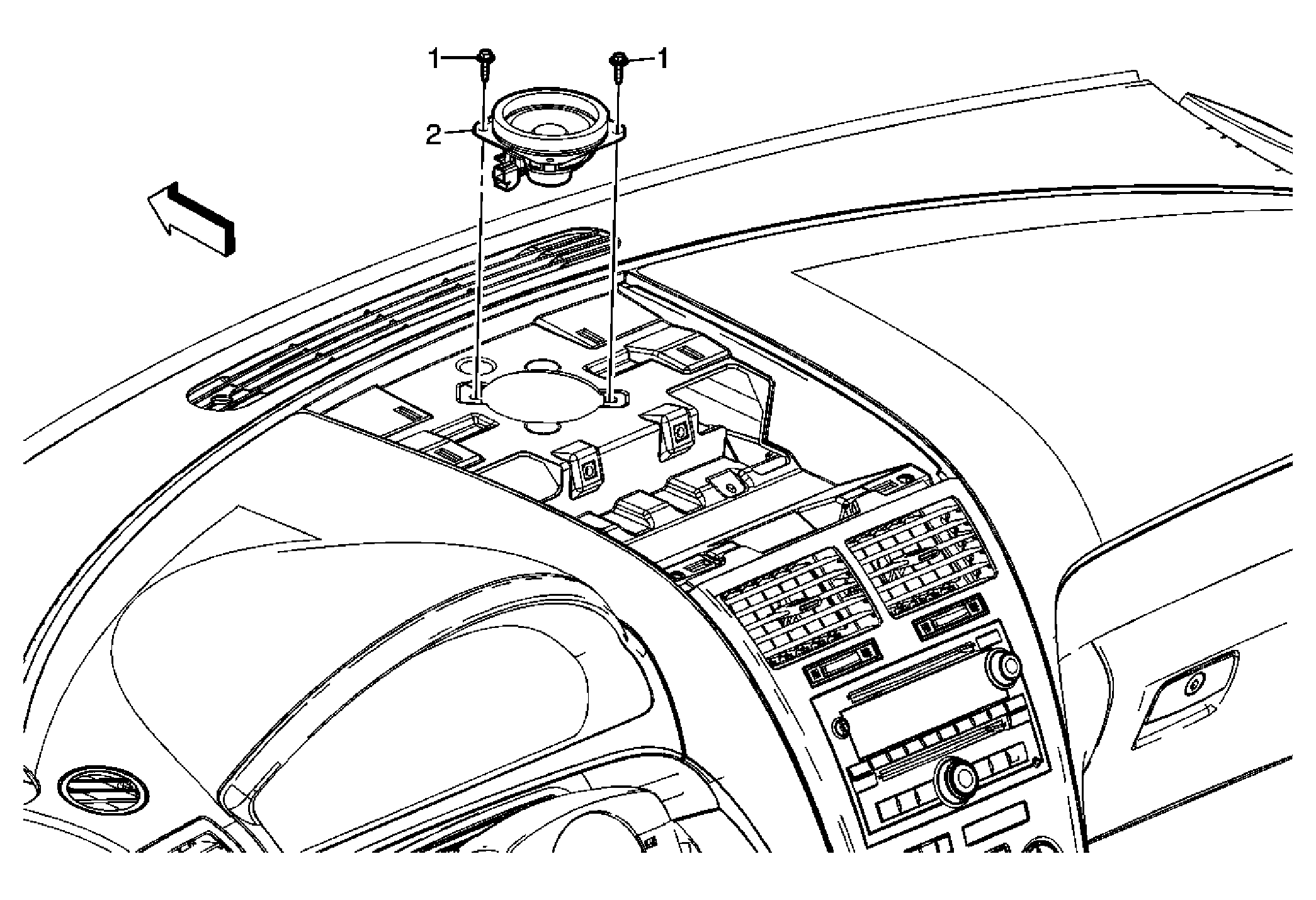

Fig 1: View Of Radio Front Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement .
1	Radio Front Speaker Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Radio Front Speaker Assembly Procedure: Disconnect the electrical connector.
