Rear Body Control Module Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

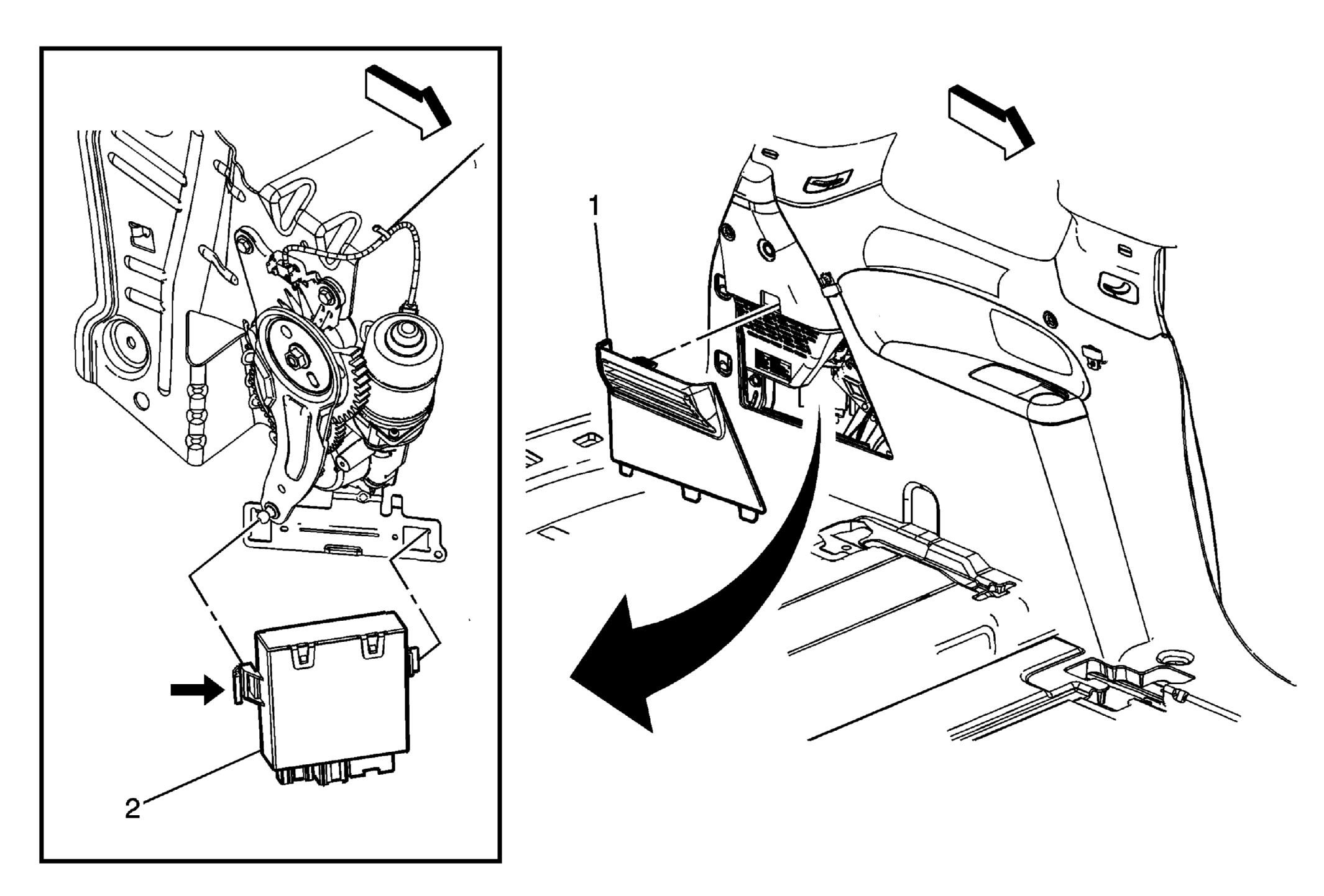

Fig 1: Identifying Rear Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Trim Panel Stow Compartment Door Assembly
2	Rear Body Control Module Assembly Procedure Disconnect the electrical connectors. Reprogram the rear body control module if replaced. Refer to Control Module References . Tip: Push in the tab to release the module from the liftgate actuator assembly.

Callout

Component Name

Body Side Trim Panel Stow Compartment Door Assembly

Rear Body Control Module Assembly

Procedure

Disconnect the electrical connectors.
Reprogram the rear body control module if replaced. Refer to Control Module References .

Tip: Push in the tab to release the module from the liftgate actuator assembly.
