Body Control System Schematics

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

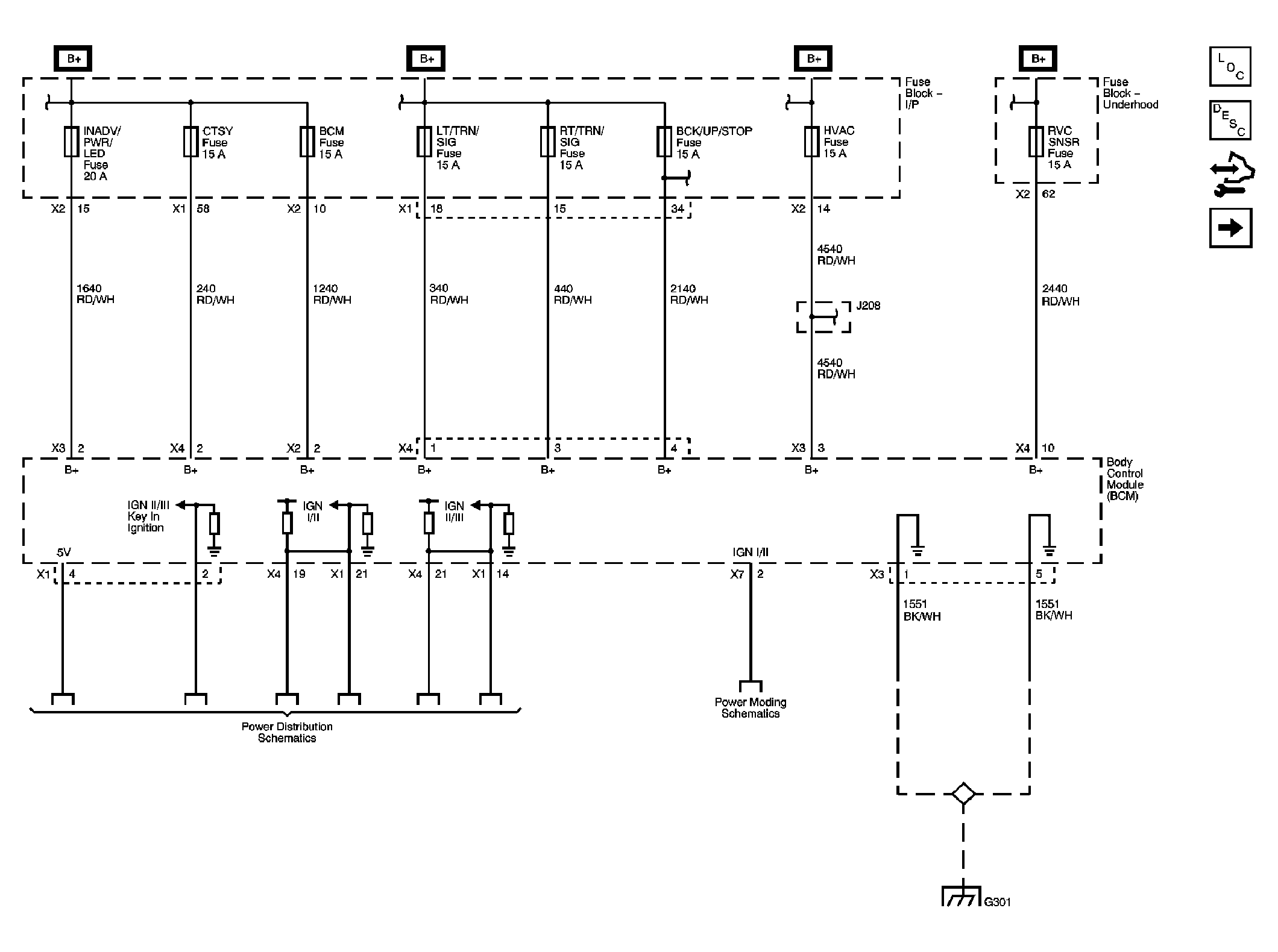

Fig 1: Module Power, Ground & References To Power Distribution & Power Moding Schematic

Courtesy of GENERAL MOTORS CORP.

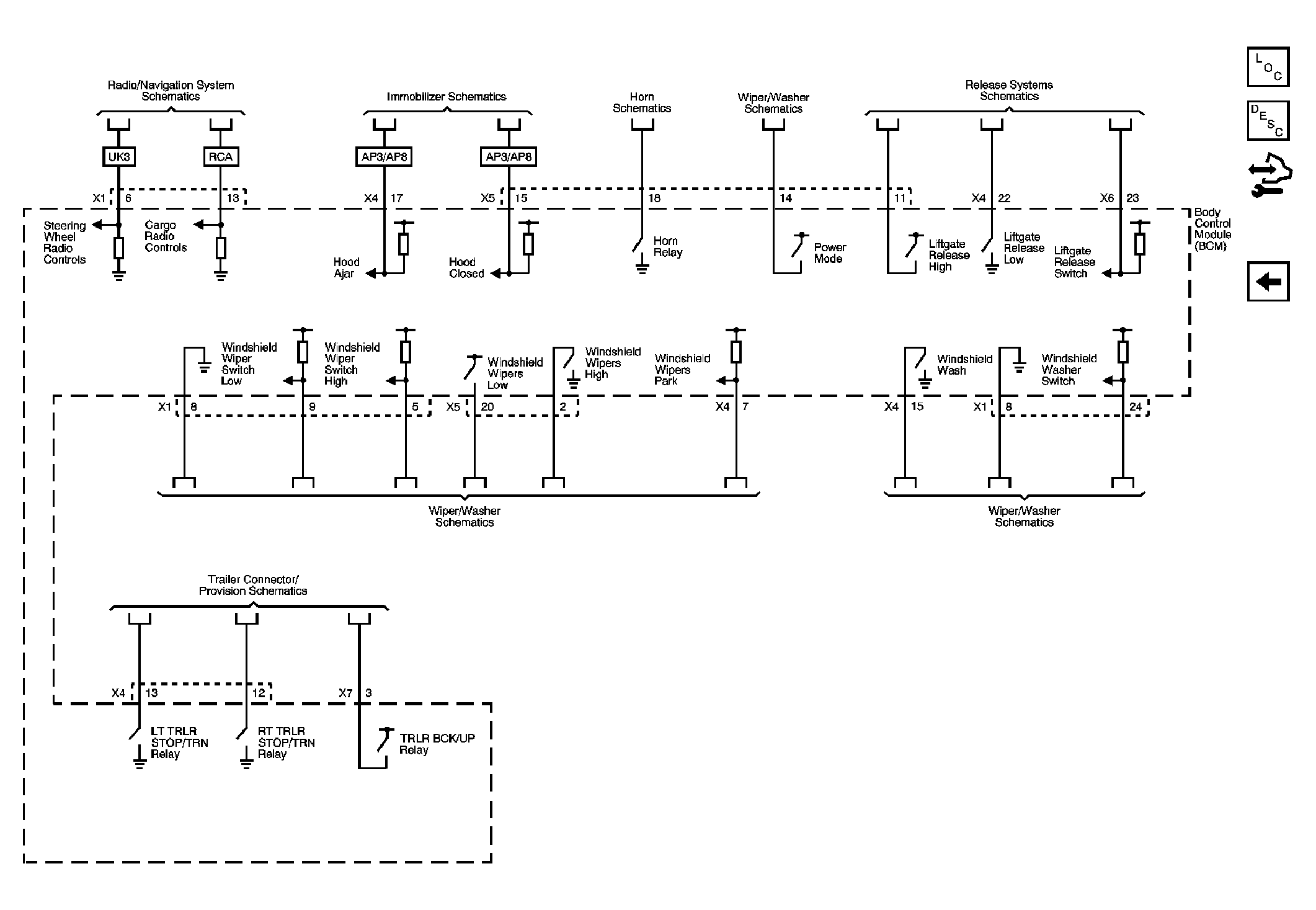

Fig 2: Subsystem References Schematic (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

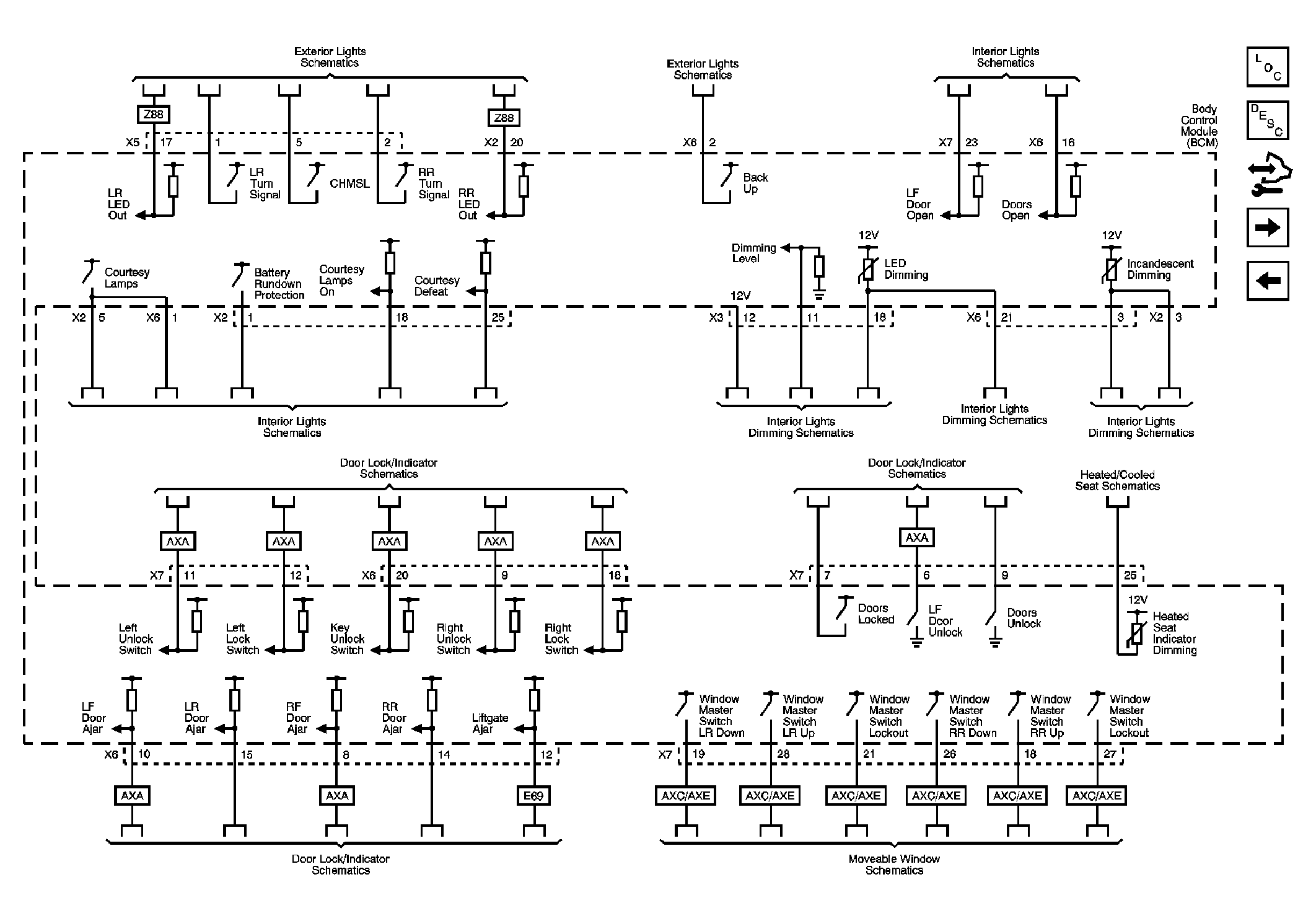

Fig 3: Subsystem References Schematic (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

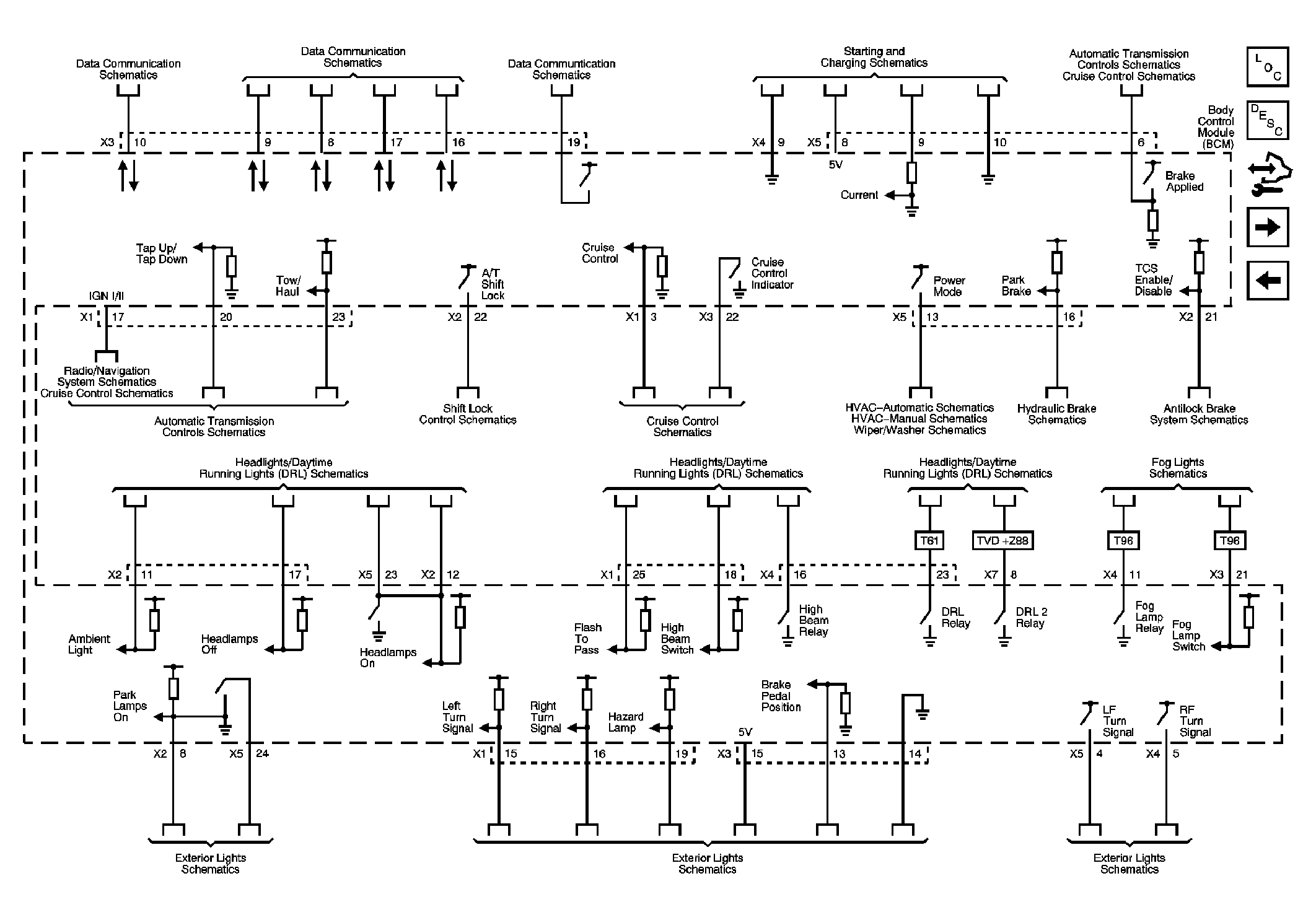

Fig 4: Subsystem References Schematic (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
