SIR Component Views

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Sensors
GM1863203Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Front End Sensor - Left
2 Inflatable Restraint Front End Sensor - Right
3 Front Fascia
Fig 2: View Of Front Air Bags
GM1863139Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module
2 Inflatable Restraint I/P Module
Fig 3: Identifying I/P Components
GM1863162Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 Instrument Panel Cluster (IPC)
3 Radio
4 Sunload Sensor (CJ2)/Ambient Light Sensor (C67)
5 I/P Trim
6 Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7 HVAC Control Module
8 Heated Seat Switch - Passenger (KA1)
9 Auxiliary Power Outlet - I/P
10 I/P Switch Assembly
11 Heated Seat Switch - Driver (KA1)
12 Hazard Switch
13 Driver Information Center (DIC) Switch (UH9)
Fig 4: Identifying Steering Column Components
GM1867859Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tilt/Telescope Switch (N38)
2 Turn Signal/Multifunction Switch
3 Inflatable Restraint Steering Wheel Module Coil
4 Theft Deterrent Control Module
5 Steering Wheel Speed Position Sensor
6 Ignition Lock Cylinder Control Actuator
7 Ignition Switch
8 Tilt Motor
9 Telescope Actuator
Fig 5: View Of Roof Rail Air Bags
GM1863141Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Passenger
2 Inflatable Restraint Roof Rail Module - Driver
3 Floor Panel
4 Windshield
Fig 6: Identifying Driver Door Components
GM1863144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Driver
2 Memory Seat Switch (AG3)
3 Driver Door Module (DDM) (AXC/AXE)
4 Speaker - LF Door
5 Inflatable Restraint Side Impact Sensing Module (SISM) - Left
6 Door Latch Assembly - Driver
7 Window Motor - Driver
8 Turn Signal Lamp (Part of Outside Rearview )
Fig 7: View Of Driver Seat Components (Except A45)
GM1863172Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Lumbar Vertical Motor - Driver
2 Inflatable Restraint Side Impact Module - Left
3 Seat Recline Motor - Driver
4 Seat Lumbar Horizontal Motor - Driver
5 Seat Horizontal Motor - Driver
6 Seat Lumbar Switch - Driver
7 Seat Adjuster Switch - Driver
8 Seat Rear Vertical Motor - Driver
9 Heated Seat Control Module - Driver (KA1)
10 Seat Front Vertical Motor - Driver
11 Seat Belt Switch - Driver
12 Heated Seat Element - Driver Cushion (KA1)
13 Heated Seat Element - Driver Back (KA1)
Fig 8: Identifying Driver Seat Components (AG3)
GM1863171Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Horizontal Position Sensor
2 Seat Lumbar Vertical Motor - Driver (AG3/AH5)
3 Inflatable Restraint Side Impact Module - Left
4 Seat Lumbar Horizontal Motor - Driver (AG3/AH5)
5 Seat Recline Motor - Driver (AG3/AH5)
6 Seat Recline Position Sensor - Driver
7 Seat Lumbar Switch - Driver (AG3/AH5)
8 Seat Horizontal Motor - Driver (AG1/AG3/AH5)
9 Seat Adjuster Switch - Driver (AG1/AG3/AH5)
10 Inflatable Restraint Seat Position Sensor (SPS) - Driver (W49)
11 Seat Rear Vertical Motor - Driver
12 Seat Rear Vertical Position Sensor
13 Seat Front Vertical Position Sensor
14 Memory Seat Module
15 Seat Front Vertical Motor - Driver
16 Seat Belt Switch - Driver
Fig 9: Identifying Passenger Seat Components
GM1863173Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Module - Right
2 Heated Seat Element - Passenger Back (KA1)
3 Seat Recline Motor - Passenger (AAQ)
4 Seat Lumbar Horizontal Motot - Passenger (AAQ)
5 Seat Lumbar Vertical Motor - Passenger (AAQ)
6 Seat Horizontal Motor - Passenger
7 Inflatable Restraint Seat Position Sensor (SPS) - Passenger (W49)
8 Seat Belt Switch - Passenger
9 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
10 Passenger Presence System (PPS) Module (Part of PPS Sensor)
11 Seat Adjuster Switch - Passenger
12 Seat Lumbar Switch - Passenger
13 Heated Seat Element - Passenger Back
Fig 10: Identifying Components Near Passenger Seat
GM1863165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Seat
2 Battery Current Sensor
3 Battery
4 G304
5 Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 Inflatable Restraint Vehicle Rollover Sensor
7 YAW Rate and Lateral Acceleration Sensor
Fig 11: Locating LR Door Components
GM1863142Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Assembly - LR
3 Window Switch - LR
4 Speaker - LR Door
5 Window Motor - LR
6 Inflatable Restraint Side Impact Sensing Module (SISM) - LR
Fig 12: Locating RR Door Components
GM1863146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch Assembly - RR
2 Window Switch - RR
3 Speaker - RR Door
4 Inflatable Restraint Side Impact Sensing Module (SISM) - RR
5 Window Motor - RR

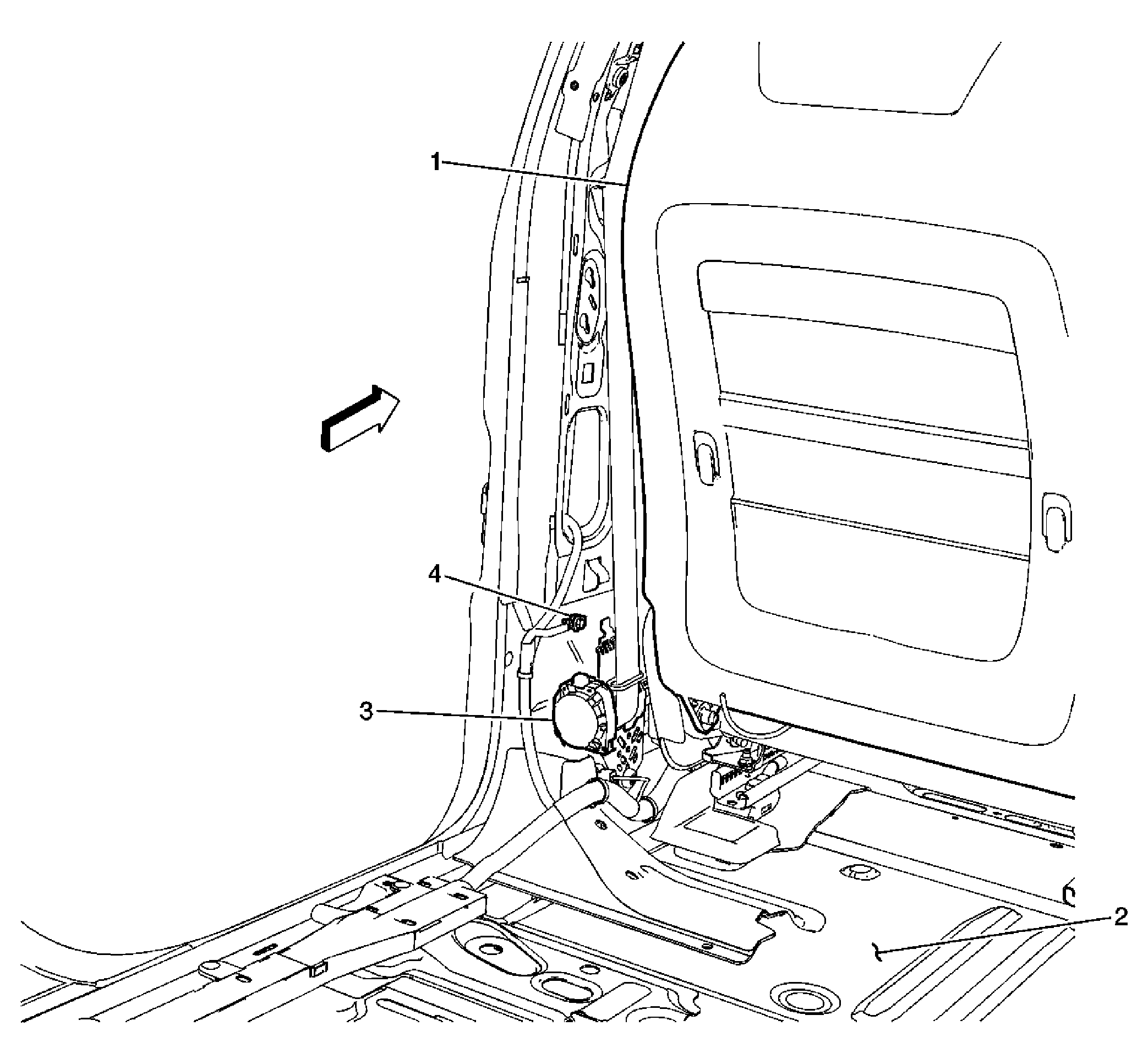

Fig 13: View Of Components Behind Drivers Seat
GM1863121Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Seat
2 Floor Panel
3 Seat Belt Pretensioner - Driver
4 G303

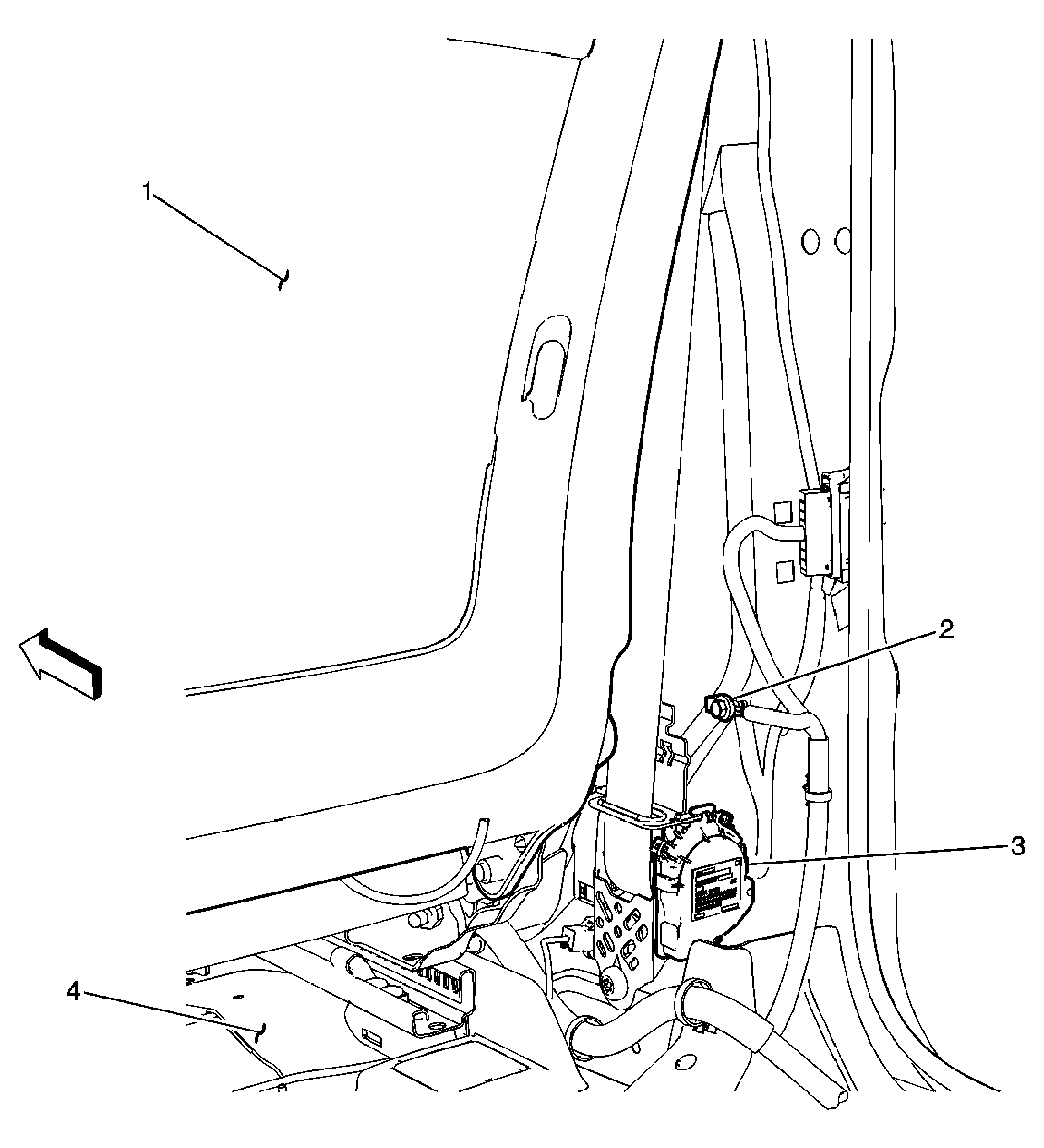

Fig 14: Identifying Components Behind Passenger Seat
GM1863116Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Seat
2 G302
3 Seat Belt Pretensioner - Passenger
4 Floor Panel
