Inflatable Restraint Side Impact Module - Right

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

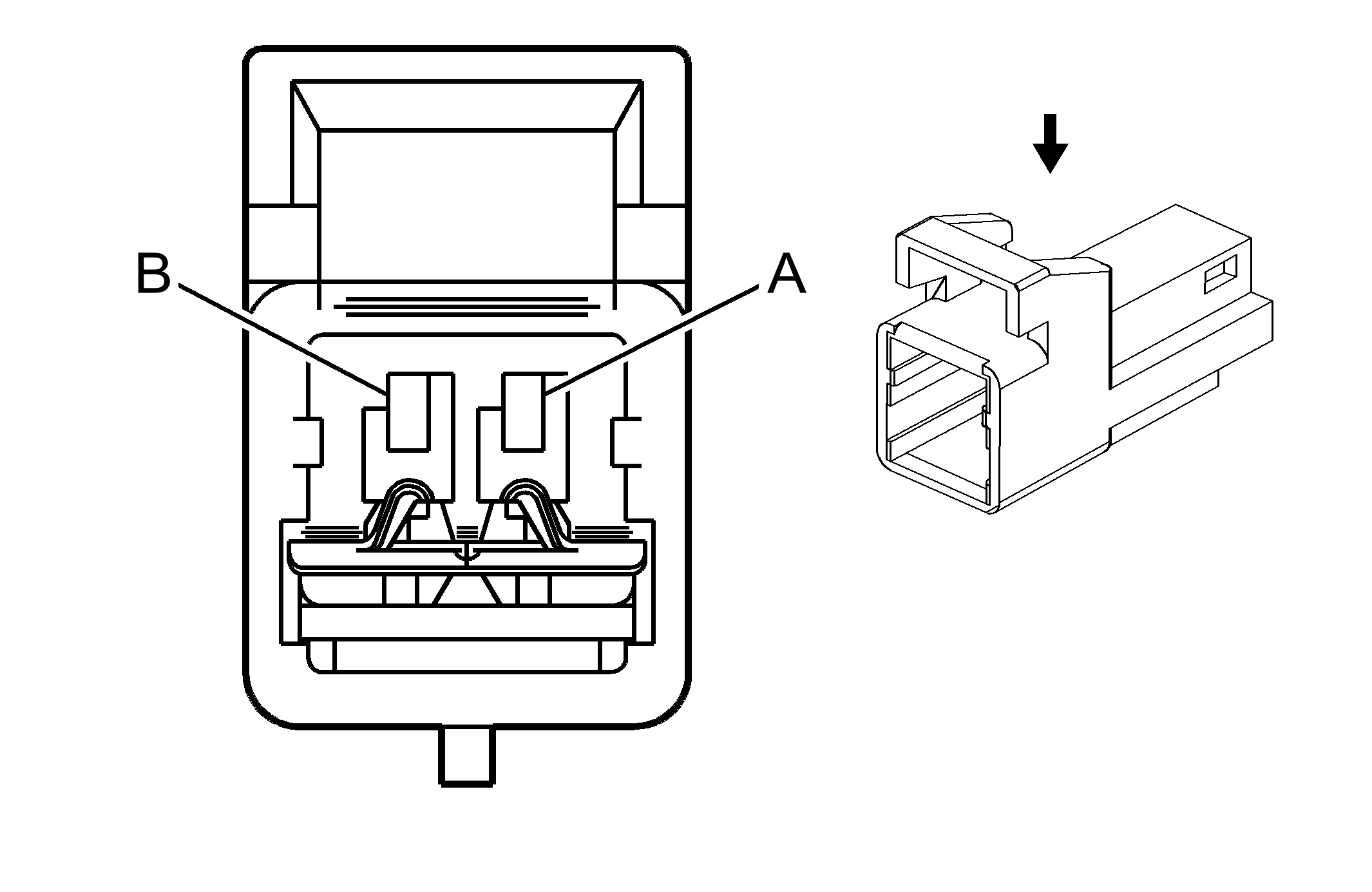

Fig 1: Inflatable Restraint Side Impact Module - Right Connector End View
GM847212Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Module - Right Connector Parts Information

Connector Part Information
  • OEM: 12160816
  • Service: 12160816
  • Description: 2-Way M Metri-Pack 150 Series (YE)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Inflatable Restraint Side Impact Module - Right Connector Terminal Identification

Pin Wire Circuit No. Function
A 0.5 TN/WH 2135 Side Impact Module - RF - High Control
B 0.5 L-GN 2136 Side Impact Module - RF - Low Control
