Sunroof Shade Module

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

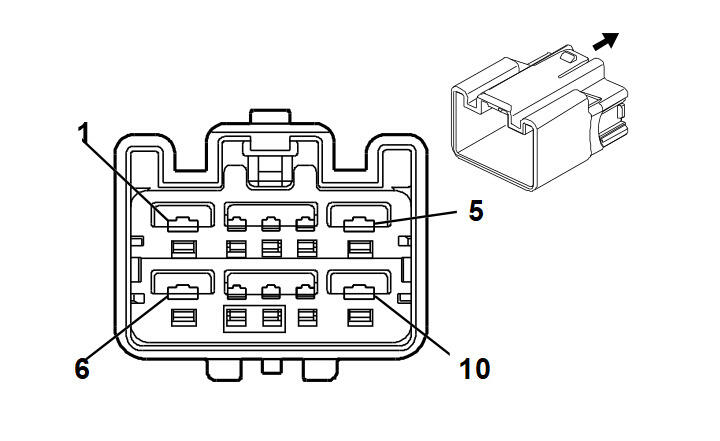

Fig 1: Sunroof Shade Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Sunroof Shade Module Connector Parts Information

Connector Part Information

OEM: 7282-6459-40
Service: See Catalog
Description: 10-Way M (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Sunroof Shade Module Connector Terminal Identification

Pin	Wire	Circuit No.	Function
1	1.3 BK	850	Ground
2	-	-	Not Used
3	0.35 YE	43	Ignition I/II Voltage
4	-	-	Not Used
5	035 L-BU	5304	Front Sunshade Switch Open Signal
6	1.3 RD/WH	3440	Battery Positive Voltage
7-9	-	-	Not Used
10	035 YE	5305	Front Sunshade Switch Close Signal
