Power Steering Pump Replacement

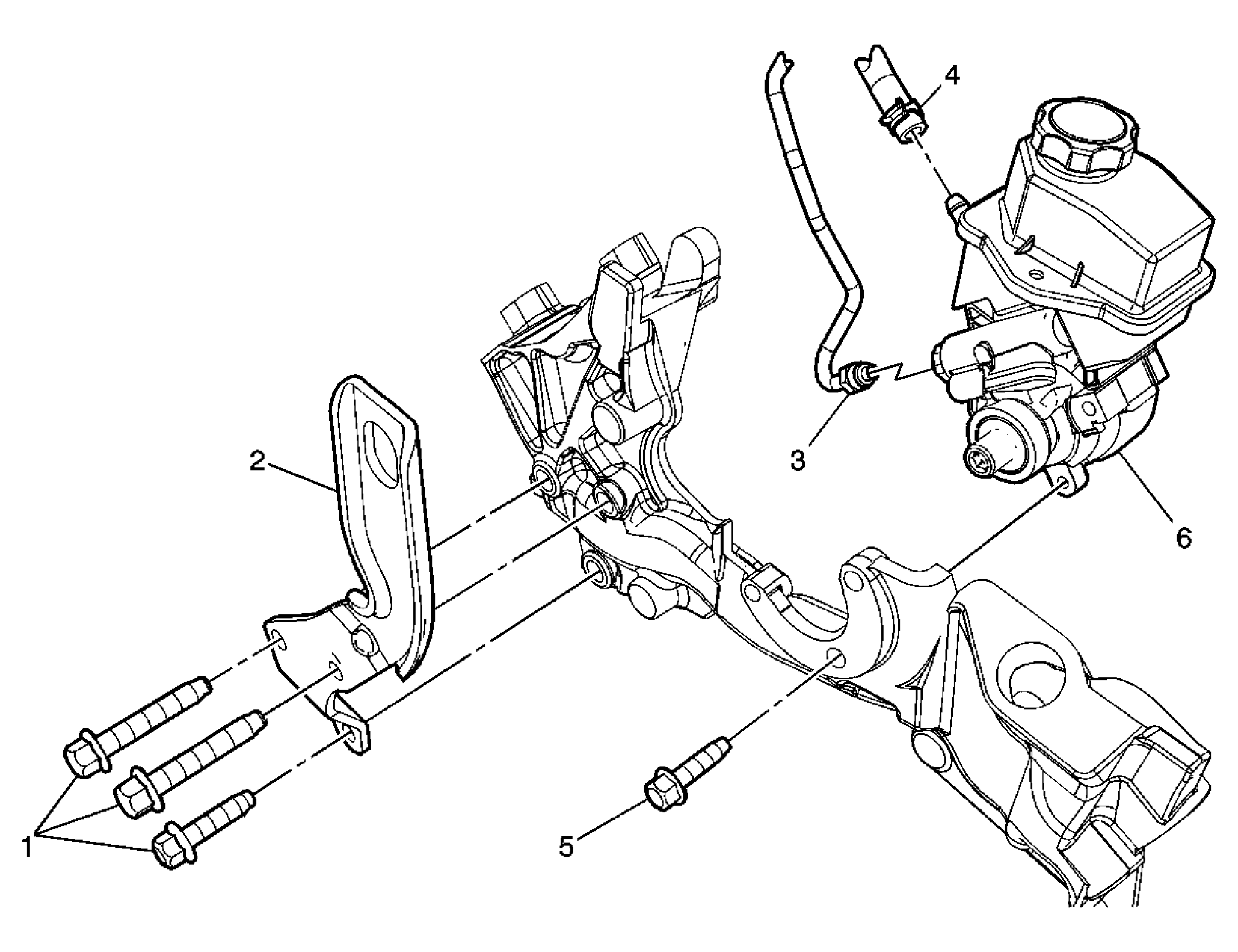

Fig 1: View Of Power Steering Pump Mounting Hardware

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the drive belt. Refer to Drive Belt Replacement . Remove the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement . Remove the power steering pump pulley. Refer to Power Steering Pulley Replacement .
1	Engine Lift Bracket Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Engine Lift Bracket
3	Power Steering Gear Inlet Pipe/Hose Fitting Tip: Use an appropriate tool to remove the power steering fluid from the reservoir before removing the hoses from the pump. Use a new O-ring seal for installation. Tighten: 27 N.m (20 lb ft)
4	Power Steering Pump Inlet Pipe/Hose Tip: Compress the clamp and to disconnect the inlet hose from the power steering reservoir.
5	Power Steering Pump Bolt (Qty: 3) Tighten: 34 N.m (25 lb ft)
6	Power Steering Pump Tip: After installation, fill and bleed the power steering system. Refer to Power Steering System Bleeding .
