Installation Procedure

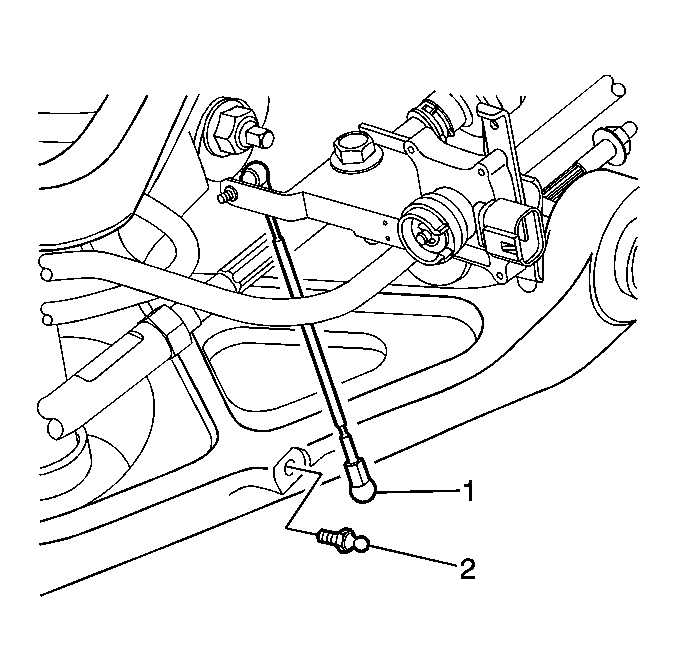

    Fig 1: View Of Control Sensor Link
    GM1708471Courtesy of GENERAL MOTORS CORP.
  1. Install the ball stud (2) to the control arm.

    Tighten:  Tighten the ball stud to 12 N.m (106 lb in).

  2. Install the automatic level control sensor link (1) to the ball stud.
  3. Lower the vehicle.
  4. Install the ELC/TRAILER fuse.
