Automatic Level Control Schematics
Automatic Level Control Schematics

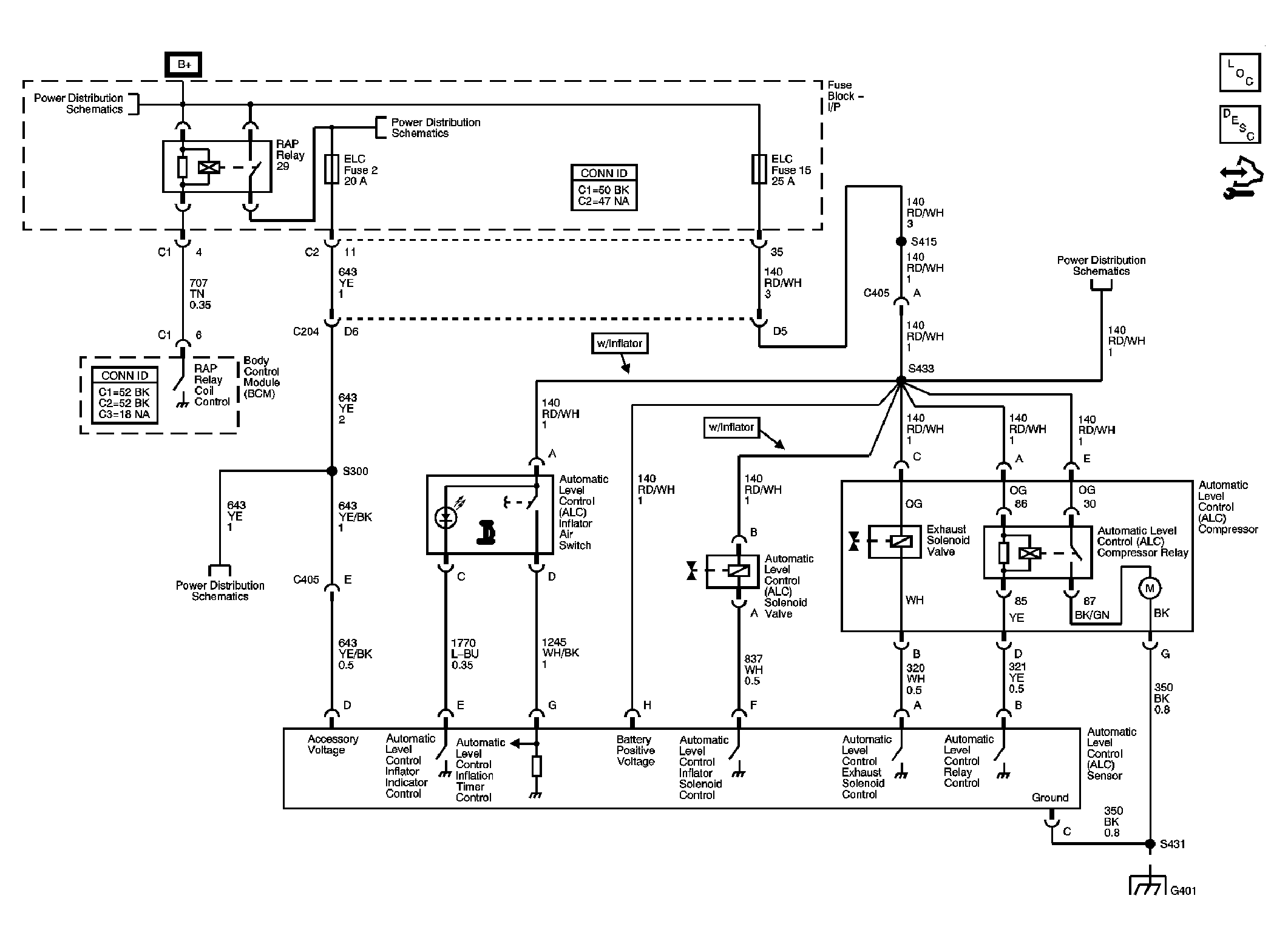

Fig 1: Automatic Level Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
