Transmission Support Replacement

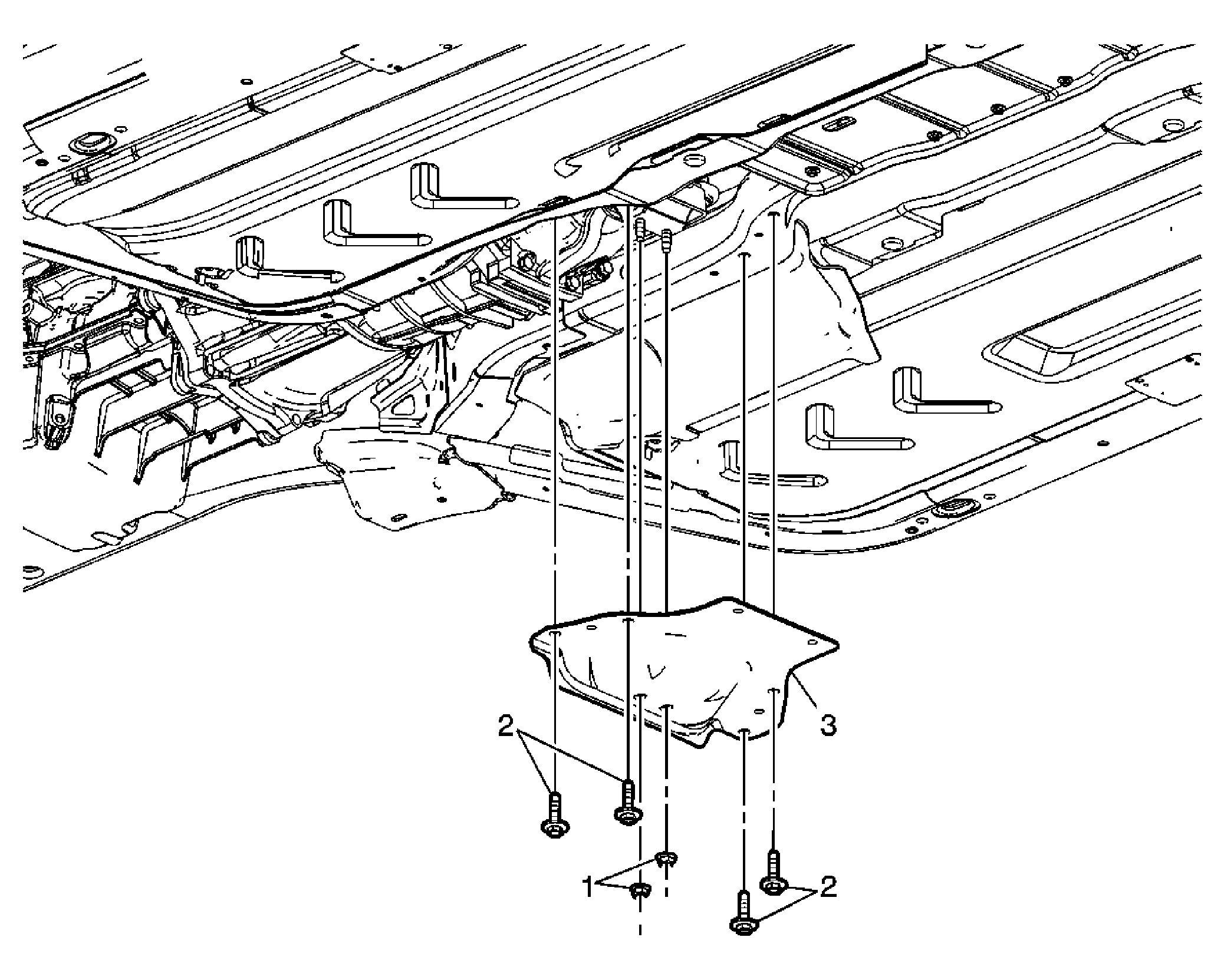

Fig 1: Transmission Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front floor closeout panel. Refer to Floor Panel Tunnel Panel Front Closeout Panel Replacement . Remove the driveline tunnel closeout panel. Refer to Driveline Tunnel Closeout Panel Replacement . Support the transmission.
1	Transmission Mount Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Transmission Support Bolt Tighten: 58 N.m (43 lb ft)
3	Transmission Support
