Instrument Cluster Replacement

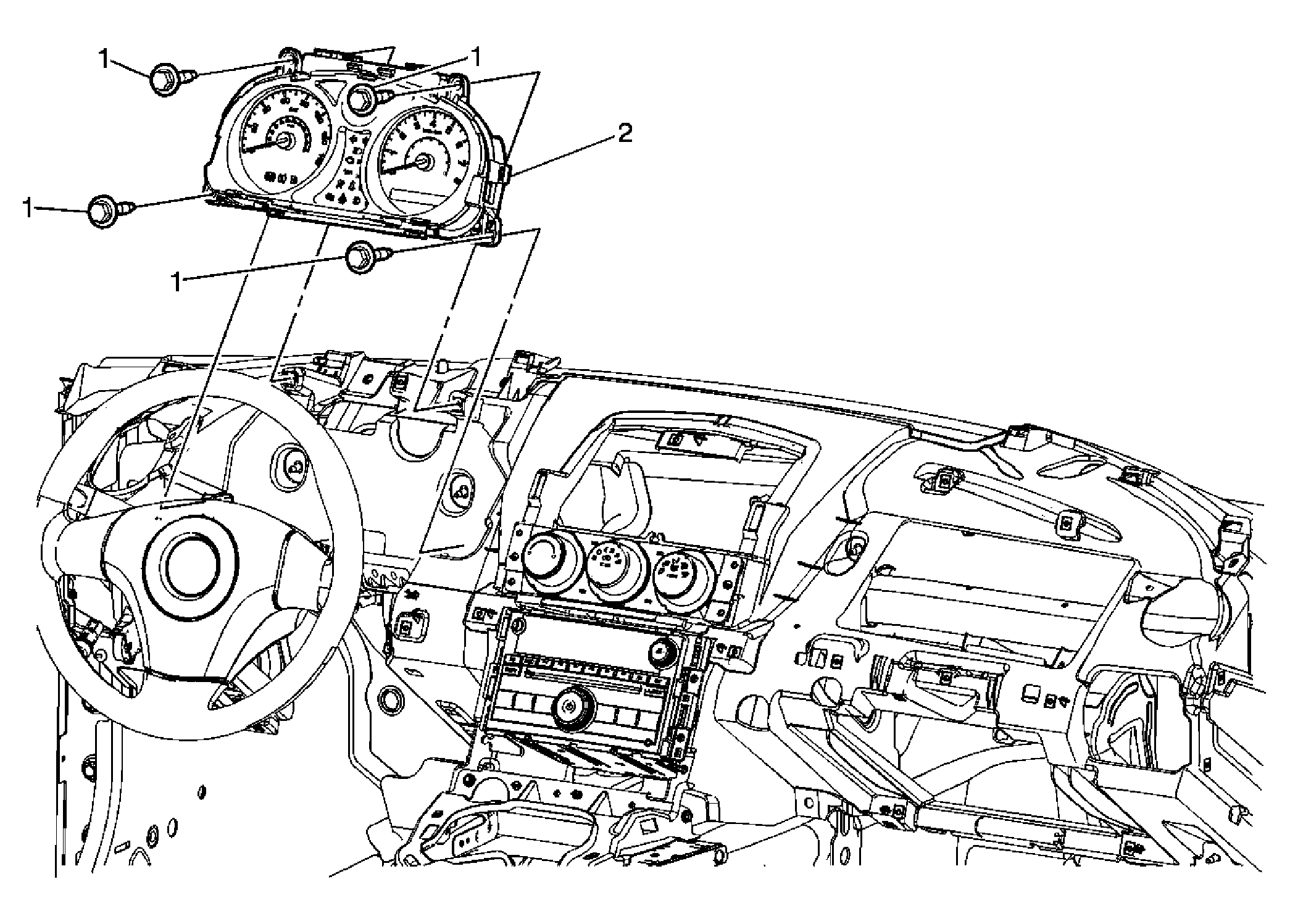

Fig 1: Instrument Cluster
GM1718142Courtesy of GENERAL MOTORS CORP.
Instrument Cluster Replacement

Callout Component Name
Preliminary Procedure:
Remove the Instrument Panel Upper Trim Panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1 Instrument Panel Cluster Assembly Screws (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Cluster Assembly

Procedures

  1. Disconnect the electrical connector.
  2. When replacing the cluster. Refer to Control Module References .
