Rear Pillar Speaker Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

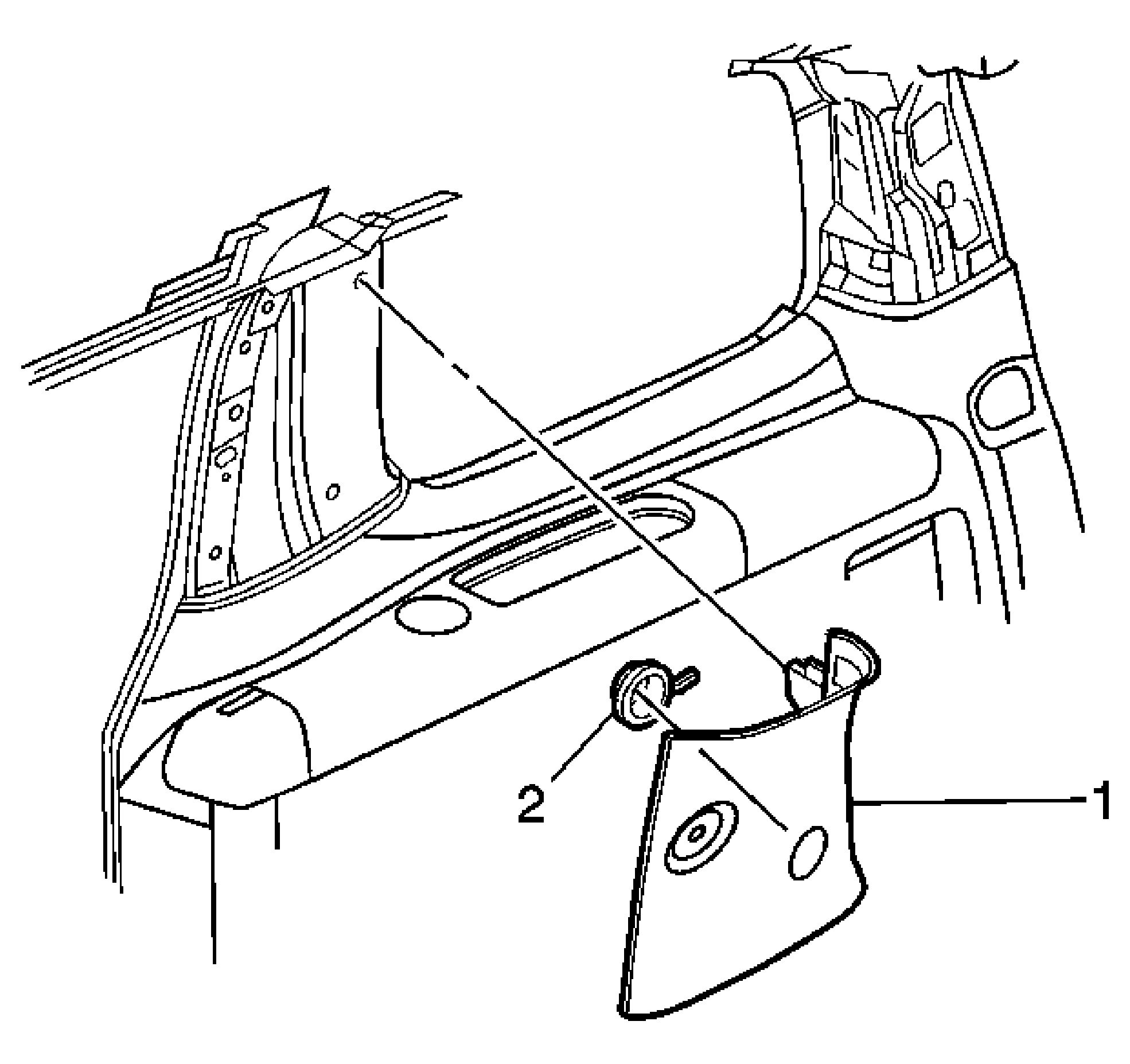

Fig 1: Rear Pillar Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the body lock pillar panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
1	Body Pillar Upper Trim Panel Tip: Disconnect the electrical connector.
2	Speaker, Radio Body
