Daytime Running Lamp Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

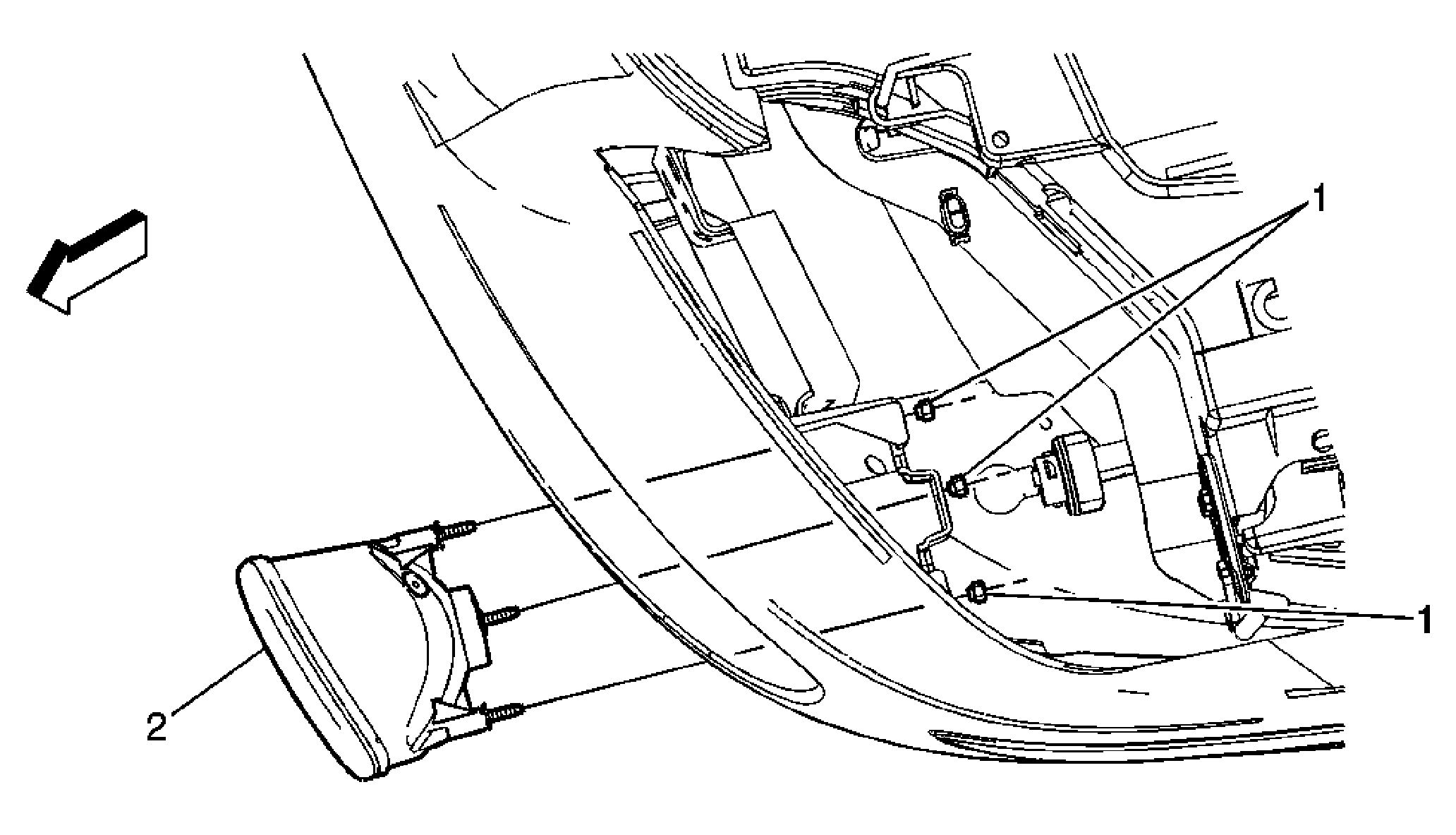

Fig 1: Daytime Running Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove either the LF or RF headlamp in order to access the daytime running lamp nuts. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . Disconnect the bulb socket from the lamp by rotating the socket a quarter turn counterclockwise.
1	Park Turn Daytime Running Lamp Nuts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: Tighten the nuts to 6 N.m (53 lb in)
2	Park Turn Daytime Running Lamp Assembly Tip: Push the lamp assembly out through the front of the bumper fascia.

Callout

Component Name

Preliminary Procedures

Remove either the LF or RF headlamp in order to access the daytime running lamp nuts. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement .
Disconnect the bulb socket from the lamp by rotating the socket a quarter turn counterclockwise.

Park Turn Daytime Running Lamp Nuts (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: Tighten the nuts to 6 N.m (53 lb in)

Park Turn Daytime Running Lamp Assembly
Tip: Push the lamp assembly out through the front of the bumper fascia.
