Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

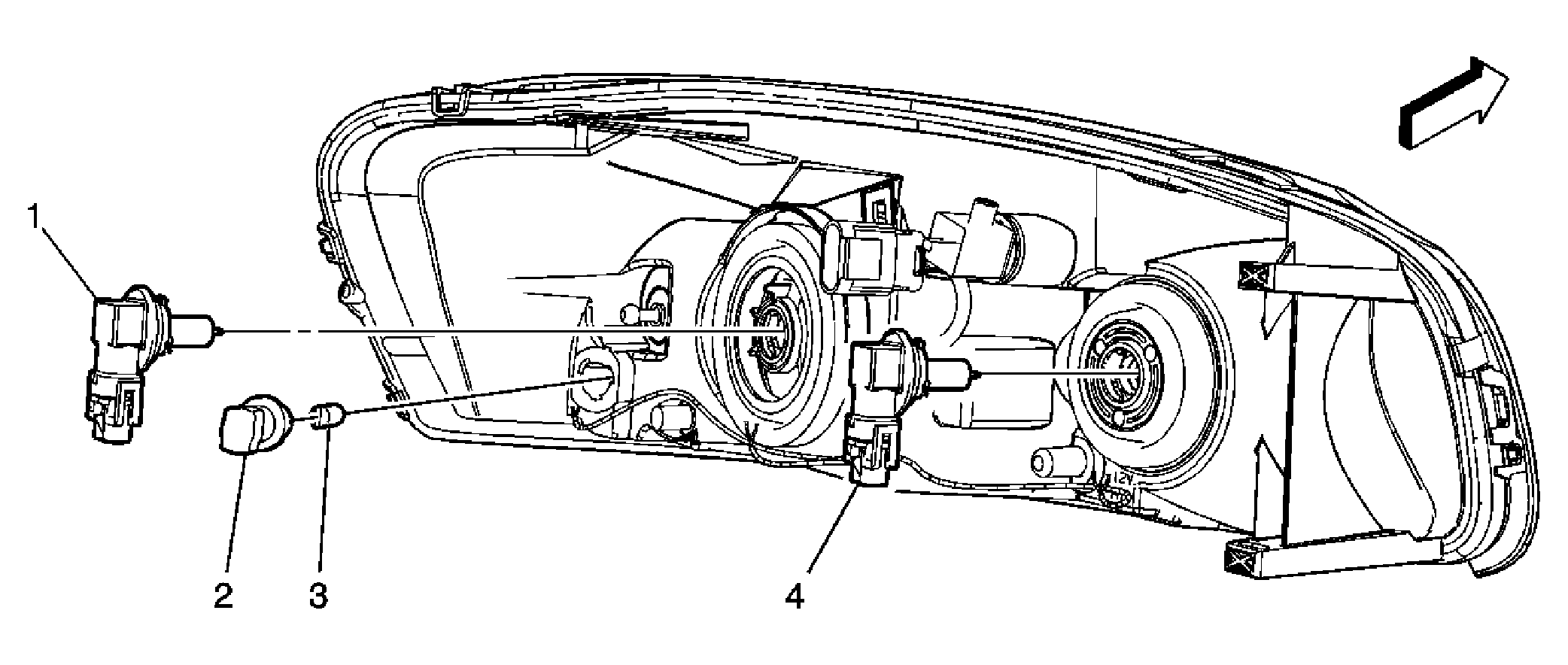

Headlamp Bulb Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LF or RF headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . |
|
| 1 |
CAUTION:
Refer to Halogen Bulb Caution
. Remove the Lo beam headlamp bulb, twist the bulb socket counter-clockwise. |
| 2 | Marker Lamp Socket |
| 3 | Marker Lamp Socket Bulb |
| 4 |
CAUTION:
Refer to Halogen Bulb Caution
. Remove the Hi beam headlamp bulb, twist the bulb socket counter-clockwise. |
