Release Systems Schematics

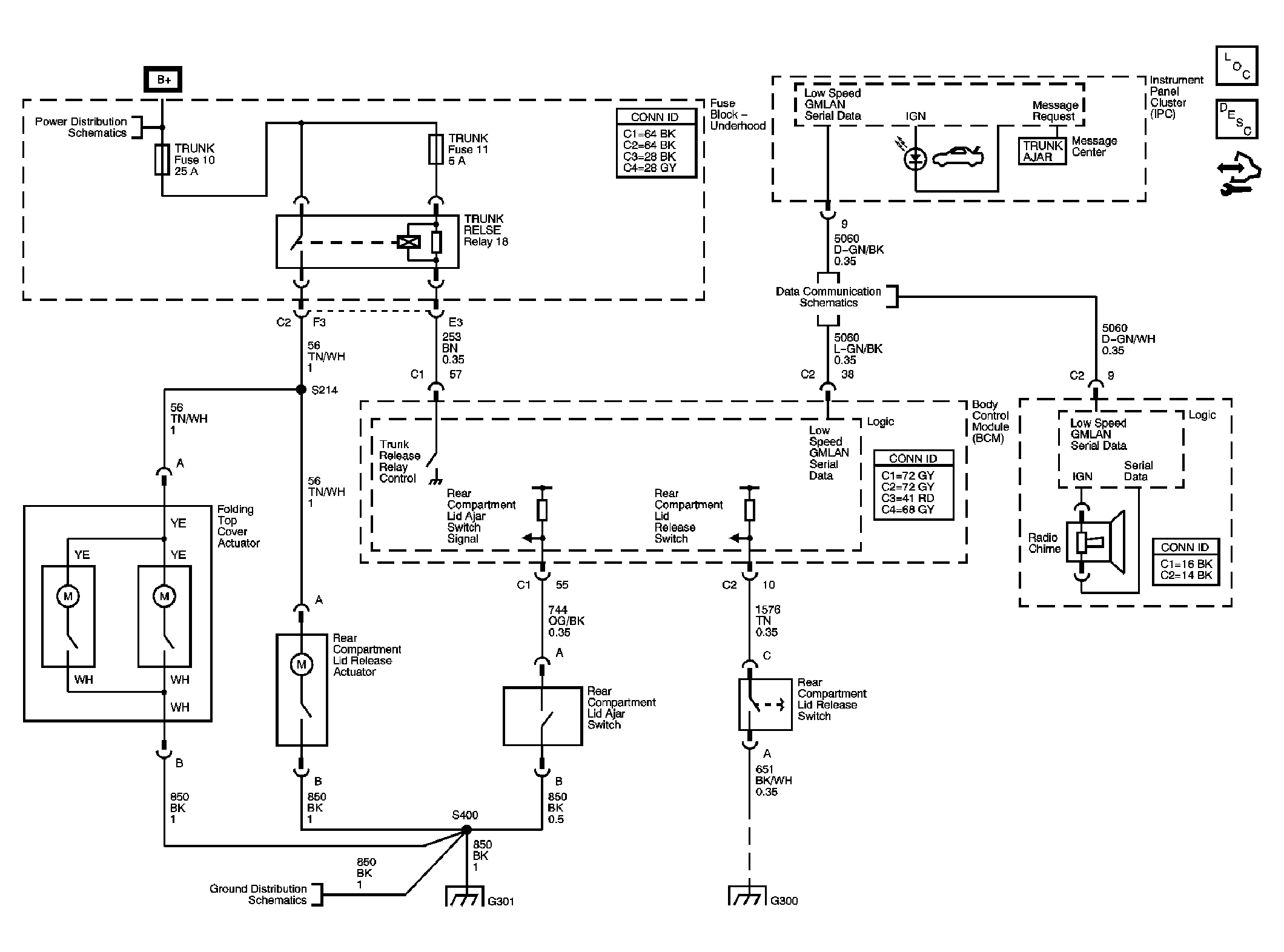

Fig 1: Folding Top and Rear Compartment Lid Release
GM1742876Courtesy of GENERAL MOTORS CORP.
