Home › Saturn › 2007 › Sky Base, Standard › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic and Routing Diagrams › Moveable Window Schematics

Moveable Window Schematics

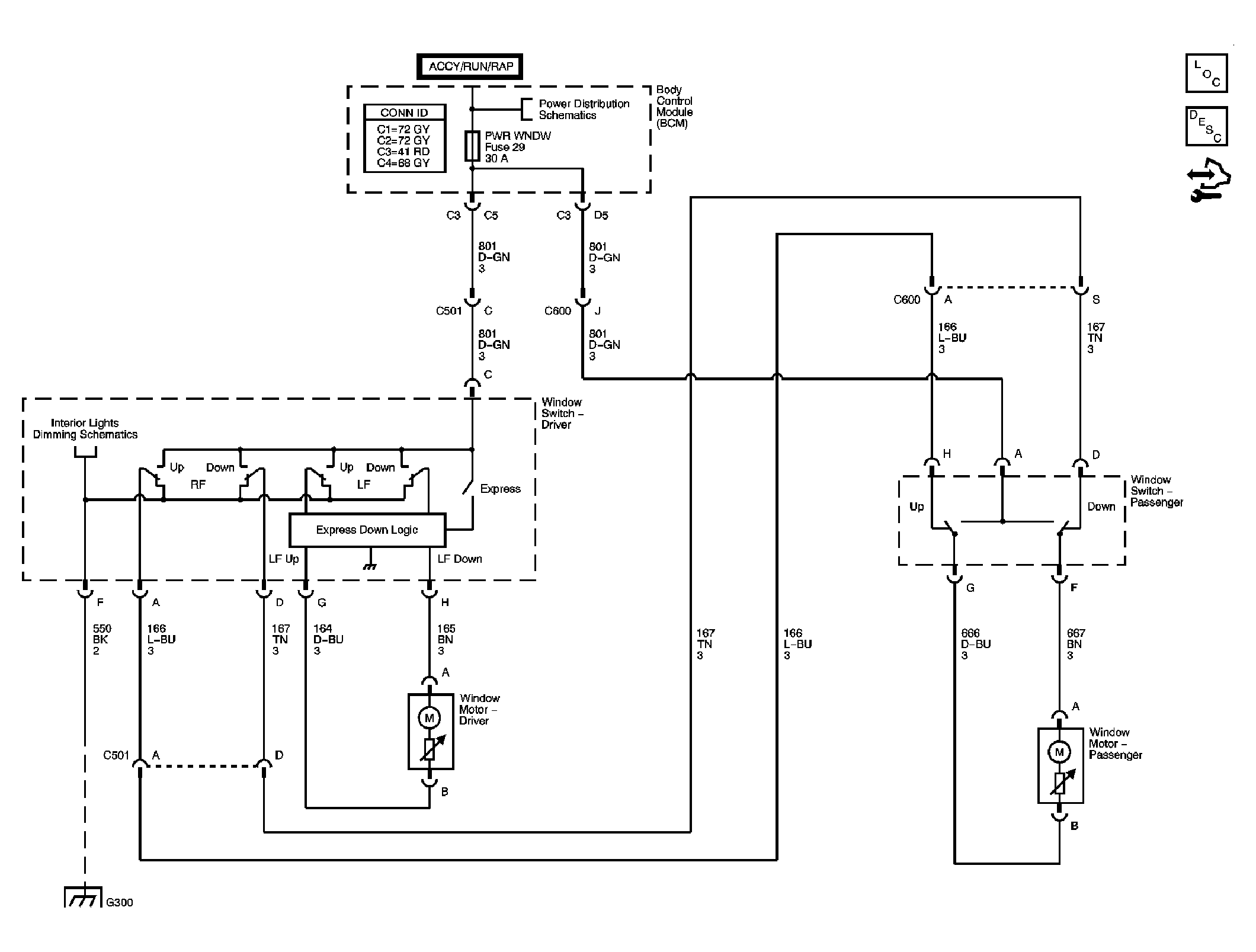

Fig 1: Moveable Window Schematic
GM1742887Courtesy of GENERAL MOTORS CORP.
