Electronic Traction Control Switch Replacement

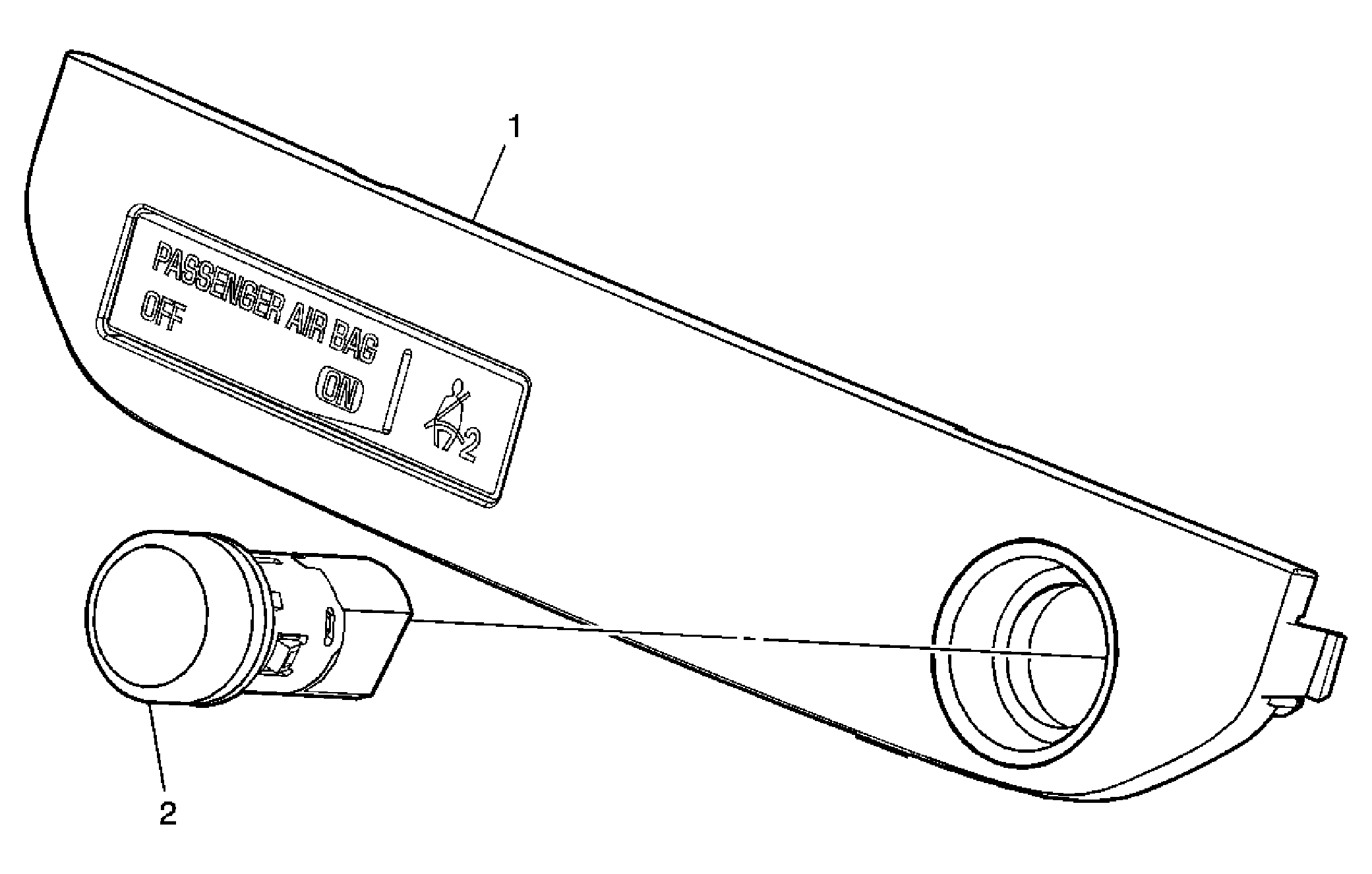

Fig 1: Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Electronic Traction Control Switch Replacement

Callout	Component Name
1	Instrument Panel Lower Trim Plate. Refer to Instrument Panel Lower Trim Plate Replacement .
2	Traction Control Switch Tip:  Squeeze the tabs in order to release the switch from the trim plate.
