Inflatable Restraint Steering Wheel Module Coil Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

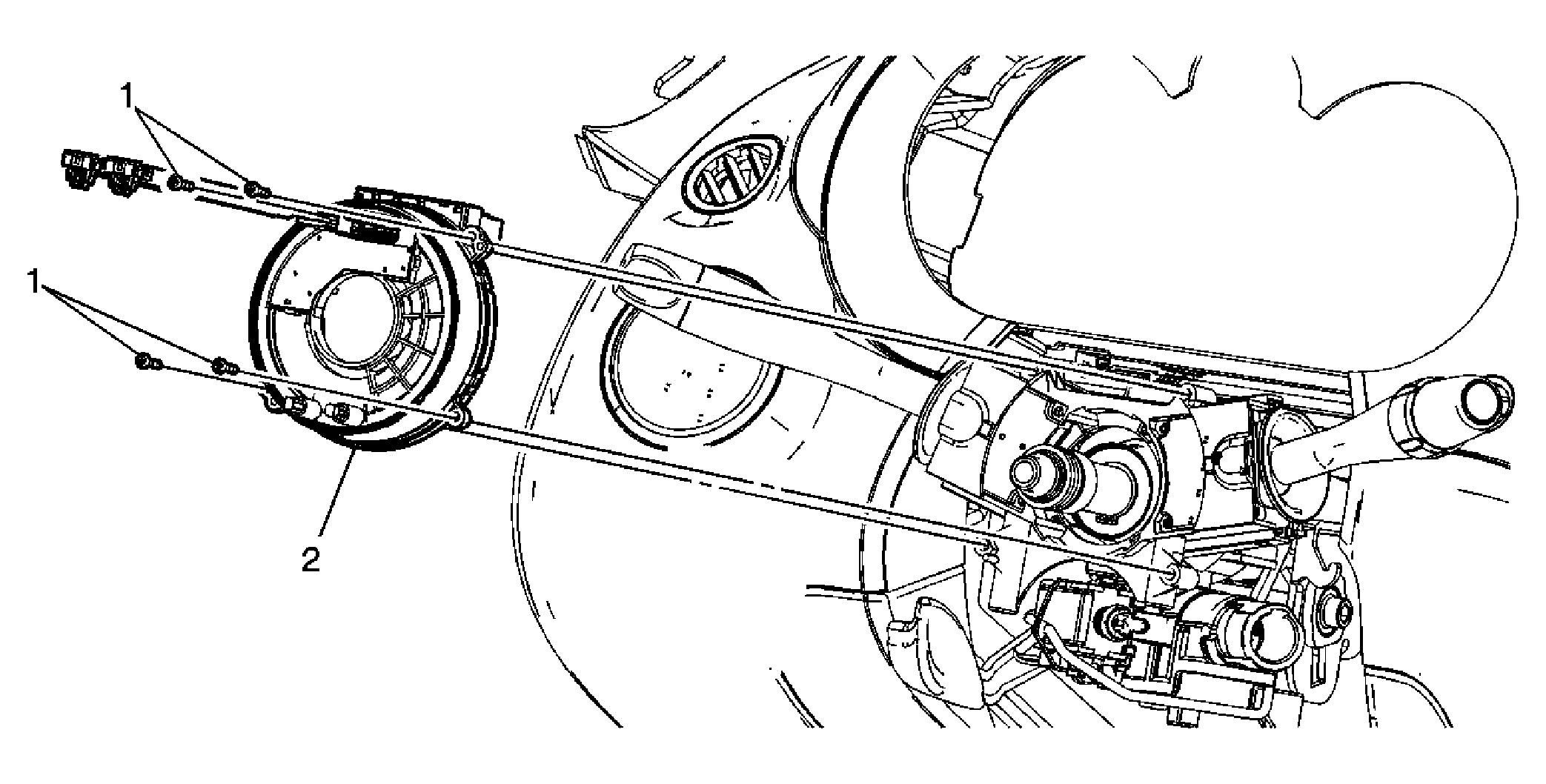

Fig 1: Steering Wheel Module Coil

Courtesy of GENERAL MOTORS CORP.

Steering Wheel Module Coil Replacement

Callout	Component Name
Preliminary Procedures Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
1	Inflatable Restraint Steering Wheel Module Coil Screw NOTE: Refer to Fastener Notice . Tighten: 1.5 N.m (13 lb in).
2	Inflatable Restraint Steering Wheel Module Coil Assembly

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .

Inflatable Restraint Steering Wheel Module Coil Screw

NOTE: Refer to Fastener Notice .

Tighten: 1.5 N.m (13 lb in).

Inflatable Restraint Steering Wheel Module Coil Assembly
