Power Seat Component Views

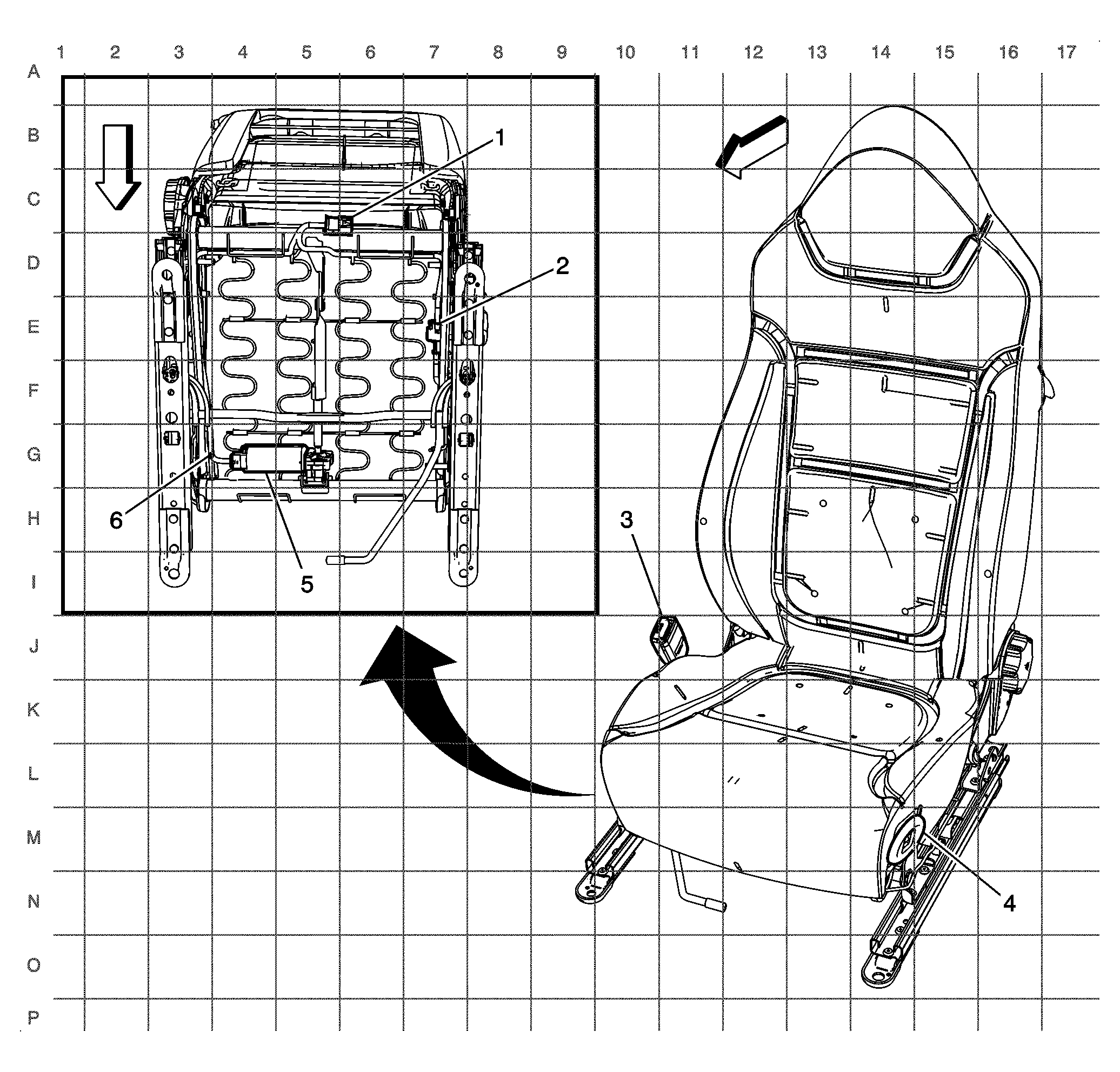

Fig 1: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C317
2	Seat Belt Switch - Driver Connector
3	Seat Belt Switch - Driver
4	Seat Adjuster Switch - Driver
5	Seat Front Vertical Motor - Driver
6	S302
